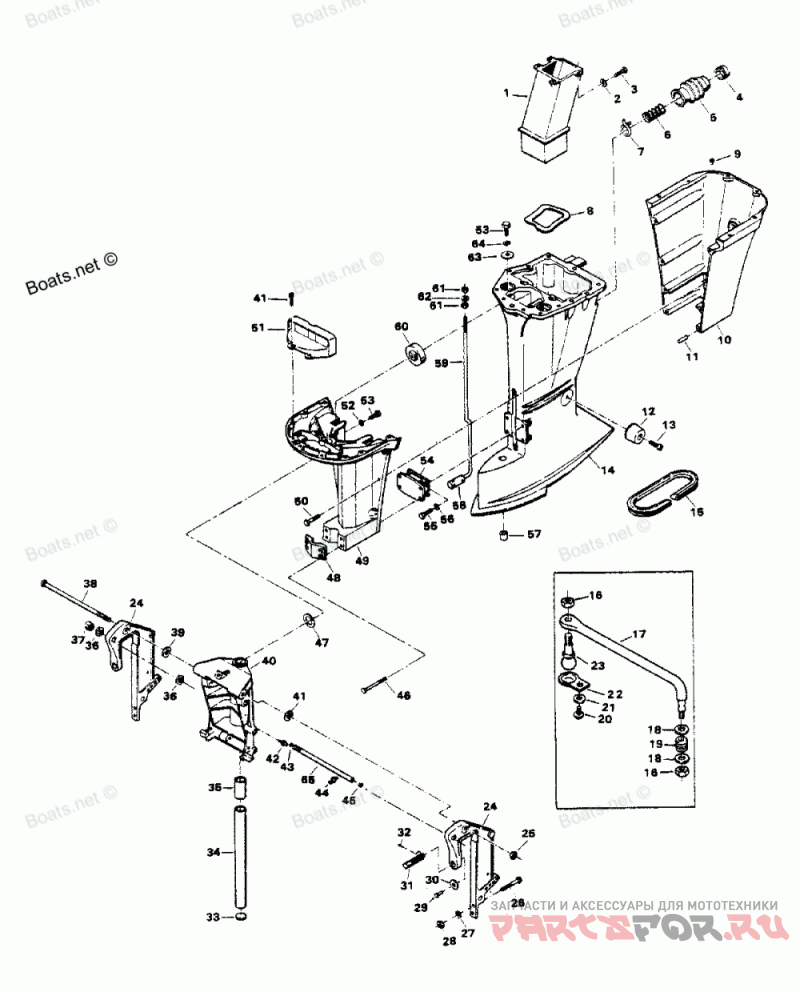

Motor Leg 758h1c, 758b1c Models

Force H0758B81C

Motor Leg 758h1c, 758b1c Models

#

oem код

название

цена

1

EXHAUST TUBE

EXHAUST TUBE

2

SPRING LOCKWASHER

SPRING LOCKWASHER

3

HEX SLOT HD SCREW, 1/4 - 20 X 3/4

HEX SLOT HD SCREW, 1/4 - 20 X 3/4

4

Вставка

Вставка

5

BOOT, IDLE EXHAUST

BOOT, IDLE EXHAUST

6

Пружина

Пружина

7

Зажим

Зажим

8

SEAL EXHAUST TUBE

SEAL EXHAUST TUBE

9

Заглушка

Заглушка

10

MOTOR LEG COVER, REAR

MOTOR LEG COVER, REAR

11

Пружинный Штифт

Пружинный Штифт

12

SHOCK MOUNT SLIDE

SHOCK MOUNT SLIDE

13

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16

14

MOTOR LEG

MOTOR LEG

15

SEAL, MOTOR LEG

SEAL, MOTOR LEG

16

STOP NUT, 3/8 - 24

STOP NUT, 3/8 - 24

17

STEERING LINK

STEERING LINK

18

PLAIN WASHER

PLAIN WASHER

19

SPRING, STEERING LINK

SPRING, STEERING LINK

20

STEERING BALL STUD

STEERING BALL STUD

21

SPRING LOCKWASHER

SPRING LOCKWASHER

22

PAN HD SCREW, 8 - 32 X 1/4

PAN HD SCREW, 8 - 32 X 1/4

23

Седло

Седло

24

STERN BRACKET

STERN BRACKET

25

LOCK NUT, 1/2 - 20

LOCK NUT, 1/2 - 20

26

HEX HD SCREW, 3/8 - 16 X 3

HEX HD SCREW, 3/8 - 16 X 3

27

PLAIN WASHER

PLAIN WASHER

28

HEX NUT, 3/8 - 16

HEX NUT, 3/8 - 16

29

Шпилька

Шпилька

30

CLAMP SCREW FOOT

CLAMP SCREW FOOT

31

CLAMP SCREW

CLAMP SCREW

32

Пружинный Штифт

Пружинный Штифт

33

WELCH PLUG

WELCH PLUG

34

KINGPIN

KINGPIN

35

Подшипник

Подшипник

36

NUT, STEERING SUPPORT TUBE

NUT, STEERING SUPPORT TUBE

37

Крышка

Крышка

38

STERN BRACKET PIVOT BOLT

STERN BRACKET PIVOT BOLT

39

FRICTION WASHER

FRICTION WASHER

40

SWIVEL BRACKET

SWIVEL BRACKET

41

HEX HD SCREW, 10 - 24 X 1/2

HEX HD SCREW, 10 - 24 X 1/2

42

Масленка

Масленка

43

SEAL, STEERING SUPPORT TUBE

SEAL, STEERING SUPPORT TUBE

44

Масленка

Масленка

45

Заглушка

Заглушка

46

HEX BOLT, 5/16 - 18 X 1-3/4

HEX BOLT, 5/16 - 18 X 1-3/4

47

Шайба

Шайба

48

KINGPIN CAP

KINGPIN CAP

49

LEG COVER, FRONT
W/ILLUS. 58

LEG COVER, FRONT
W/ILLUS. 58

50

HEX HD SCREW, 1/4 - 20 X 1 1/4

HEX HD SCREW, 1/4 - 20 X 1 1/4

51

BAFFLE, AIR INTAKE

BAFFLE, AIR INTAKE

52

SPRING LOCKWASHER

SPRING LOCKWASHER

53

HEX HD SCREW, 3/8 - 16 X 3/4

HEX HD SCREW, 3/8 - 16 X 3/4

54

SHOCK MOUNT, LOWER

SHOCK MOUNT, LOWER

55

HEX BOLT, 5/16 - 18 X 7/8

HEX BOLT, 5/16 - 18 X 7/8

56

SPRING LOCKWASHER

SPRING LOCKWASHER

57

SEAL, GEAR SHIFT ROD

SEAL, GEAR SHIFT ROD

58

COUPLER, GEARSHIFT ROD - UPPER

COUPLER, GEARSHIFT ROD - UPPER

59

GEAR SHIFT ROD - UPPER

GEAR SHIFT ROD - UPPER

60

SHOCK MOUNT, UPPER

SHOCK MOUNT, UPPER

61

LOCK NUT, 5/16 - 18

LOCK NUT, 5/16 - 18

62

PLAIN WASHER

PLAIN WASHER

63

WASHER SHOCK MOUNT UPPER

WASHER SHOCK MOUNT UPPER

64

PLAIN WASHER

PLAIN WASHER

65

TUBE, STEERING SUPPORT

TUBE, STEERING SUPPORT
