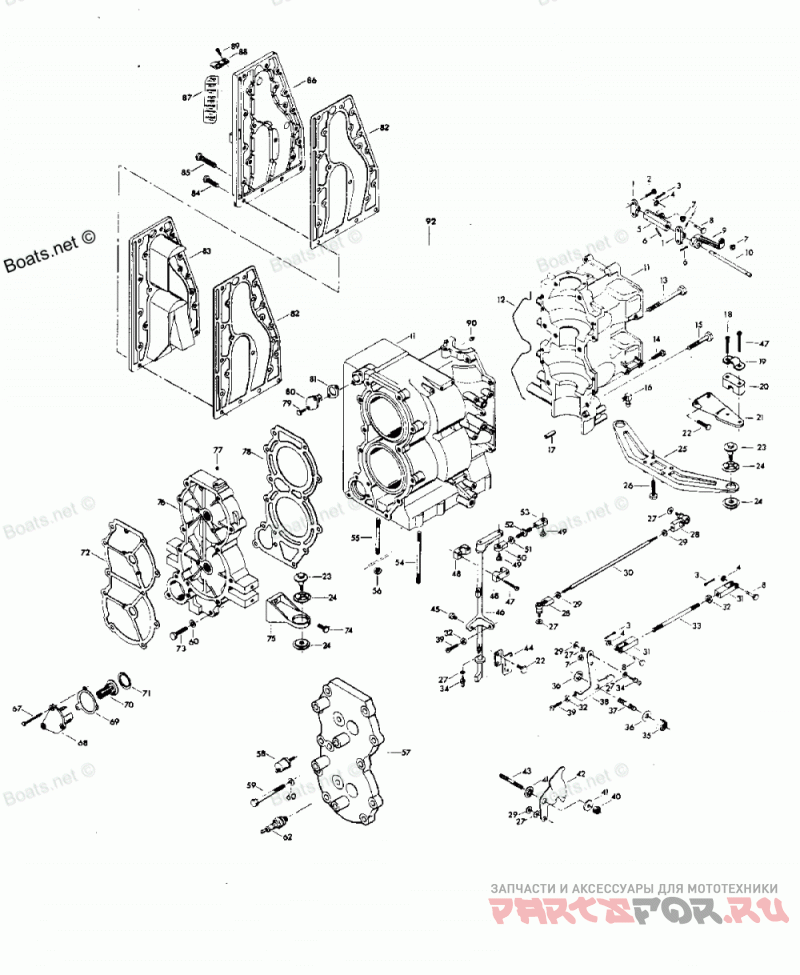

Power Head

Force H0559H81N

Force
#oem кодцена
1
F85689-1
Подшипник
2
F1475
SLOTTED FILL HD SCREW, 10 - 24 X 1/2
3
F1017
Шплинт
4
F8094
PLAIN WASHER
5
F474640
PIVOT, GEAR SHIFT
6
F8547
Пружинный Штифт
7
F183818
BEARING, GEAR SHIFT COUPLER
8
F474620
PIN, GEAR SHIFT
9
F474621
LEVER, GEAR SHIFT
10
F474871
SHAFT, GEAR SHIFT
11
817860A1
Цилиндр
-
817911A1
SHORT BLOCK (NOT SHOWN).
12
F269122-1
CRANKCASE PARTING LINE SEAL
13
F1873
HEX CAP SCREW, 3/8 - 16 X 3
14
F1864
HEX HD SCREW, 1/4 - 20 X 3/4
15
F1872
HEX CAP SCREW, 3/8 - 16 X 1 3/4
16
817740A1
FITTING, PUDDLE DRAIN W/METERING CAP
17
F8563
Палец
18
F1829
SLOTTED FILL HD SCREW, 10 - 24 X 7/8
19
F154317
Кабельный Зажим
20
F474932
SPACER, CONTROL CABLE
21
F474371
REMOTE CABLE BRACKET
22
F1922
HEX CAP SCREW, 1/4 - 20 X 5/8
23
F458887
FASTENER, SUPPORT PLATE MOUNT
24
F458347
MOUNT
25
F474980-1
STABILIZER, FRONT
26
F2071
HEX CAP SCREW, 5/16 - 18 X 1 3/8
27
F8058
INTERNAL TOOTH LOCKWASHER
28
8177471
BALL JOINT W/BEARING
29
F1513
HEX NUT, 10 - 32
30
F474193
THROTTLE LINK
31
F474704
Муфта сцепления
32
F1341
HEX NUT, 1/4 - 20
33
F474881
LINK, GEAR SHIFT
34
F98273
ROD END CONNECTOR STUD
35
F7025
STOP NUT, S.S., 3/8 - 16
36
F269052
SHIFT ARM BEARING
37
F474859
STUD, SHIFT ARM
38
F522876
SHIFT ARM
39
F1052
FILL HD M. SCREW, 1/4 - 20 X 1
40
F1910
ELASTIC STOP NUT, 1/4 - 20
41
F269319
THROTTLE CAM BEARING
42
F474192
THROTTLE CAM
43
F433209-1
STUD, THROTTLE CAM
44
F474551
BRACKET, INTERLOCK SWITCH
45
F1727
PLASTIC RIVET
46
F474838-1
TOWERSHAFT
47
F1995
FILL HD SCREW, 10 - 24 X 1
48
F433689
TOWERSHAFT BEARING
49
F84026
SPARK CONTROL SWIVEL
50
F84035-2
SPARK CONTROL BEARING, R.H.
51
F1473
HEX NUT, 10 - 24
52
F474445
SPARK CONTROL LINK
53
F84036
SPARK CONTROL BEARING, L.H.
54
F474211
STUD, CYLINDER
55
F474210
STUD, CYLINDER
56
F7006
LOCK NUT
57
F522995
CYLINDER HEAD COVER
58
F404449
THERMOSWITCH
59
F2049
HEX CAP SCREW, 5/16 - 18 X 2 5/8
60
F1987
PLAINWASHER
62
97180
SPARK PLUG (L-20V) - USA
-
FC522227
SPARK PLUG (QUL-77V)
67
F2051
HEX CAP SCREW, 1/4 - 20 X 2 1/4
68
F474066
Крышка термостата
69
F474067
THERMOSTAT COVER GASKET
70
F84068-2
Термостат
71
F84504
THERMOSTAT GROMMET
72
F474996-1
CYLINDER HEAD COVER GASKET
73
F2076
HEX CAP SCREW, 5/16 - 18 X 1/8
74
F1902
HEX CAP SCREW, 5/16 - 18 X 3/4
75
F474982
STABILIZER, REAR
76
FA547518
Головка цилиндра
77
F19109
PLUG, CYLINDER HEAD
78
F474529-1
Прокладка головки блока цилиндров
79
F1913
HEX CAP SCREW, 10 - 24 X 5/8
80
F438066
COVER, BY-PASS VALVE
81
F85762
GASKET, BY-PASS VALVE COVER
82
F474154
EXHAUST PORT PLATE GASKET
83
F474151
EXHAUST PORT PLATE
84
F1532
HEX CAP SCREW, 1/4 - 20 X 1
85
F1581
HEX CAP SCREW, 1/4 - 20 X 1/4
86
F474152
EXHAUST PORT COVER
87
FC474398
DECAL, WIRING
88
F289446-1
Зажим
89
F1734
SLOTTED FILL HD SCREW & LOCKWASHER, 1/4 - 20 X 1/2
90
F474909
LOCATING PIN
92
FG1013-1
GASKET SET.
-
F40906-1
CARBURETOR GASKET
-
F85168
REED PLATE ADAPTER GASKET
-
F85762
BY-PASS VALVE COVER GASKET
-
F474067
THERMOSTAT COVER GASKET
-
F474154
EXHAUST PORT COVER GASKET
-
F474168
CARBURETOR ADAPTER GASKET
-
F474279
CYLINDER EXHAUST GASKET
-
F474529-1
Прокладка головки блока цилиндров
-
F474867
EXHAUST TUBE GASKET
-
F474996-1
CYLINDER HEAD COVER GASKET
-
F522279
CYLINDER EXHAUST GASKET
-
F522867
EXHAUST TUBE GASKET
