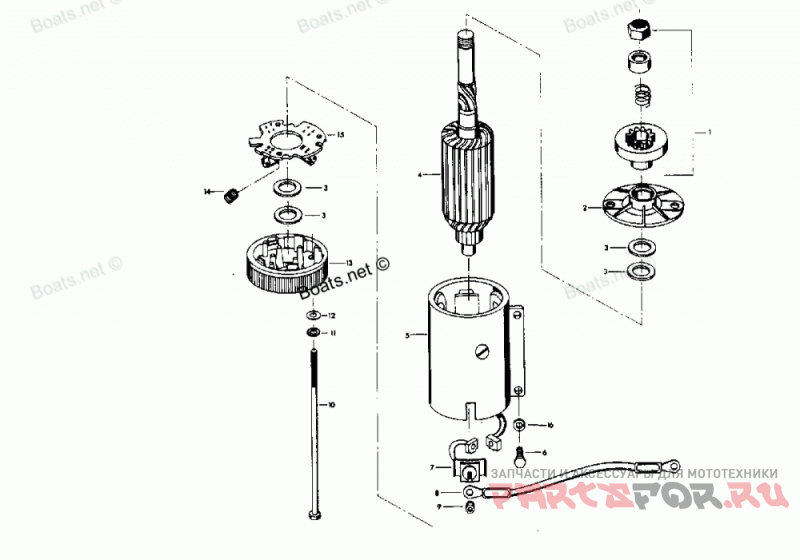

Стартер

Force H0559B81N

Force
#oem кодцена
1
F15100
BENDIX DRIVE
2
F15120
HEAD ASSEMBLY, DRIVE END
3
F15126
THRUST WASHER PACKAGE
4
F15099
ARMATURE
5
F15119
FRAME AND FIELD ASSEMBLY
6
F1822
HEX CAP SCREW, 5/16 - 18 X 7/8
7
F15165
BRUSH AND TERMINAL SET
8
F307908
STARTER WIRE
9
FA15072
HEX LOCK NUT AND WASHER ASSEMBLY, 1/4 - 20
10
F15123
THRU BOLT PACKAGE
11
F8060
Стопорная шайба
12
F8028
PLAIN WASHER
13
F15125
HEAD ASSEMBLY, COMMUTATOR END
14
F15034
Пружинка
15
F15057
BRUSH PLATE AND HOLDER
16
F8096
SPRING LOCKWASHER
-
F475955
STARTER COMPLETE.
-
FC522390
DECAL, STARTER - CANADA (NOT SHOWN)
