Motor Leg для лодочных моторов Force H0507H81A (1981)

Москва и регионы России

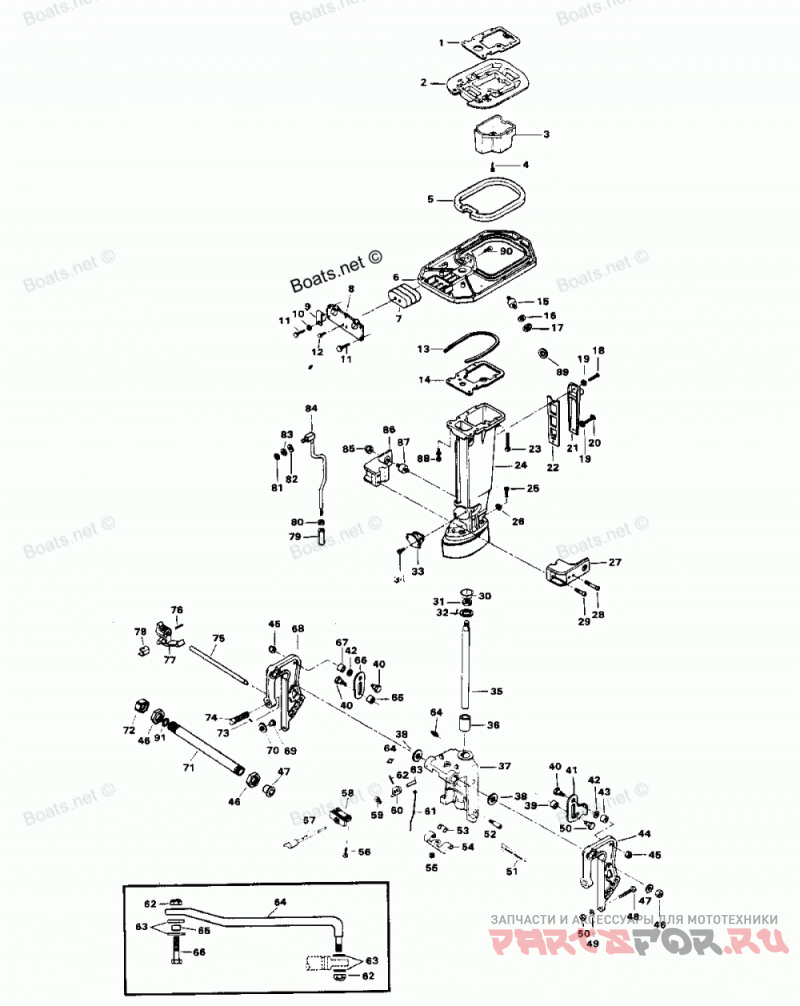

Motor Leg

Force H0507H81A

Motor Leg

#

oem код

название

цена

1

CYLINDER EXHAUST GASKET UPPER

CYLINDER EXHAUST GASKET UPPER

2

SPACER PLATE

SPACER PLATE

3

LEG EXHAUST TUBE

LEG EXHAUST TUBE

4

FILL HD M. SCREW W/LOCKWASHER, 10 - 24 X 1/2

FILL HD M. SCREW W/LOCKWASHER, 10 - 24 X 1/2

5

SEAL, KINGPIN PLATE

SEAL, KINGPIN PLATE

6

KINGPIN PLATE

KINGPIN PLATE

7

SHOCK MOUNT UPPER

SHOCK MOUNT UPPER

8

SHOCK MOUNT UPPER COVER

SHOCK MOUNT UPPER COVER

9

Зажим

Зажим

10

PLAIN WASHER

PLAIN WASHER

11

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

12

HEX HD SCREW W/LOCKWASHER, 1/4 - 28 X 5/8

HEX HD SCREW W/LOCKWASHER, 1/4 - 28 X 5/8

13

DAMPENING PAD

DAMPENING PAD

14

CYLINDER EXHAUST GASKET LOWER

CYLINDER EXHAUST GASKET LOWER

15

SHOCK MOUNT - SIDE - UPPER

SHOCK MOUNT - SIDE - UPPER

16

PLAIN WASHER

PLAIN WASHER

17

HEX NUT, 3/8 - 16

HEX NUT, 3/8 - 16

18

HEX HD SCREW, S.S., 1/4 - 20 X 1-3/8

HEX HD SCREW, S.S., 1/4 - 20 X 1-3/8

19

SPRING LOCKWASHER

SPRING LOCKWASHER

20

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

21

MOTOR LEG EXHAUST COVER

MOTOR LEG EXHAUST COVER

22

MOTOR LEG EXHAUST COVER GASKET

MOTOR LEG EXHAUST COVER GASKET

23

FILL HD SCREW, 1/4 - 20 X 3-7/16

FILL HD SCREW, 1/4 - 20 X 3-7/16

24

MOTOR LEG

MOTOR LEG

25

HEX HD CAP SCREW, S.S., 3/8 - 16 X 1-1/8

HEX HD CAP SCREW, S.S., 3/8 - 16 X 1-1/8

26

SPRING LOCKWASHER

SPRING LOCKWASHER

27

SHOCK MOUNT LOWER COVER - PORT

SHOCK MOUNT LOWER COVER - PORT

28

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 3-1/2

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 3-1/2

29

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 1-1/4

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 1-1/4

30

PLASTIC PLUG

PLASTIC PLUG

31

KINGPIN NUT

KINGPIN NUT

32

SWIVEL BRACKET WASHER

SWIVEL BRACKET WASHER

33

SHOCK MOUNT LOWER

SHOCK MOUNT LOWER

34

FILL HD SCREW, S.S., 5/16 - 18 X 1/2

FILL HD SCREW, S.S., 5/16 - 18 X 1/2

35

KINGPIN

KINGPIN

36

SWIVEL BRACKET BEARING

SWIVEL BRACKET BEARING

37

SWIVEL BRACKET

SWIVEL BRACKET

38

STERN BRACKET FRICTION WASHER

STERN BRACKET FRICTION WASHER

39

SPACER, TILT STOP

SPACER, TILT STOP

40

TILT STOP PIVOT

TILT STOP PIVOT

41

TILT STOP - PORT

TILT STOP - PORT

42

BOWED SPRING WASHER

BOWED SPRING WASHER

43

SPACER, TILT STOP

SPACER, TILT STOP

44

STERN BRACKET - PORT

STERN BRACKET - PORT

45

Гайка

Гайка

46

LOCK NUT, PIVOT TUBE

LOCK NUT, PIVOT TUBE

47

PLASTIC PLUG, PIVOT TUBE

PLASTIC PLUG, PIVOT TUBE

48

HEX HD SCREW, S.S., 3/8 - 16 X 3

HEX HD SCREW, S.S., 3/8 - 16 X 3

49

PLAIN WASHER

PLAIN WASHER

50

HEX NUT, S.S., 3/8 - 16

HEX NUT, S.S., 3/8 - 16

51

DECAL, TILT LOCK

DECAL, TILT LOCK

52

Штифт

Штифт

53

REVERSE LOCK SPRING

REVERSE LOCK SPRING

54

REVERSE LOCK

REVERSE LOCK

55

STOP NUT

STOP NUT

56

PAN HD SCREW, 10 - 24 X 9/16

PAN HD SCREW, 10 - 24 X 9/16

57

HANDLE AND SHAFT

HANDLE AND SHAFT

58

Подшипник

Подшипник

59

RING, RETAINING-REV. LOCK SHAFT

RING, RETAINING-REV. LOCK SHAFT

60

Рычаг

Рычаг

61

LINK

LINK

62

Пружинный Штифт

Пружинный Штифт

63

Подшипник

Подшипник

64

Масленка

Масленка

65

SPACER, TILT STOP

SPACER, TILT STOP

66

TILT STOP, STARBOARD

TILT STOP, STARBOARD

67

SPACER, TILT STOP

SPACER, TILT STOP

68

STERN BRACKET - STARBOARD

STERN BRACKET - STARBOARD

69

Шпилька

Шпилька

70

CLAMP SCREW FOOT

CLAMP SCREW FOOT

71

TUBE, PIVOT STEERING

TUBE, PIVOT STEERING

72

PLASTIC CAP, PIVOT TUBE

PLASTIC CAP, PIVOT TUBE

73

Пружинный Штифт

Пружинный Штифт

74

CLAMP SCREW

CLAMP SCREW

75

STERN BRACKET LOCK BAR

STERN BRACKET LOCK BAR

76

Пружинный Штифт

Пружинный Штифт

77

HANDLE, LOCK BAR

HANDLE, LOCK BAR

78

SPRING LOCK BAR HANDLE

SPRING LOCK BAR HANDLE

79

GEAR SHIFT ROD COUPLING

GEAR SHIFT ROD COUPLING

80

HEX NUT, S.S., 5/16 - 18

HEX NUT, S.S., 5/16 - 18

81

Стопорное кольцо

Стопорное кольцо

82

BOWED SPRING WASHER

BOWED SPRING WASHER

83

PLAIN WASHER

PLAIN WASHER

84

GEAR SHIFT ROD UPPER

GEAR SHIFT ROD UPPER

85

ACORN NUT, S.S., 5/16 - 18

ACORN NUT, S.S., 5/16 - 18

86

SHOCK MOUNT LOWER COVER - STARBOARD

SHOCK MOUNT LOWER COVER - STARBOARD

87

SHOCK MOUNT SIDE LOWER

SHOCK MOUNT SIDE LOWER

88

FLANGED 12 POINT SCREW, 5/16 - 18 X 2

FLANGED 12 POINT SCREW, 5/16 - 18 X 2

89

GROMMET, MOTOR LEG

GROMMET, MOTOR LEG

90

FLAT HD SCREW, 1/4 - 28 X 5/8

FLAT HD SCREW, 1/4 - 28 X 5/8

91

SEAL, PIVOT TUBE

SEAL, PIVOT TUBE
