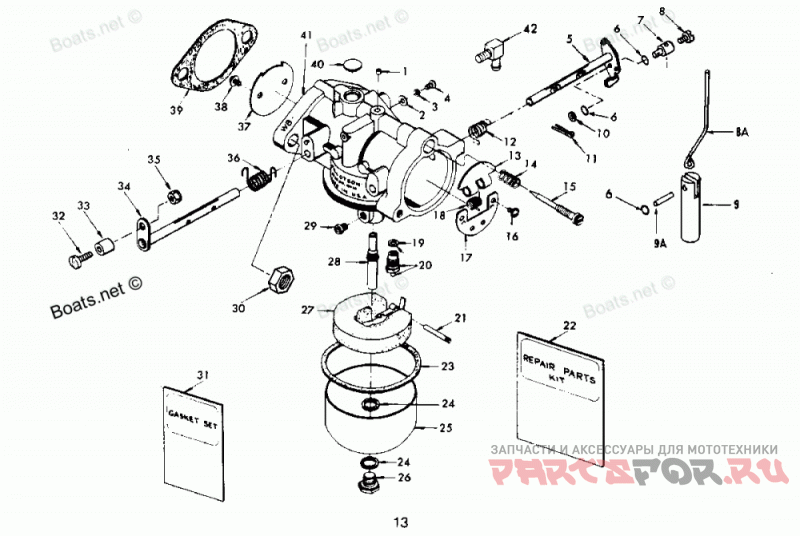

Карбюратор

Force H0457H81M

Force
#oem кодцена
1
FO10588
BODY CHANNEL CUP PLUG
2
FO3804
THROTTLE SHAFT POSITION RETAINING SCREW WASHER
3
FO6396
THROTTLE SHAFT POSITION RETAINING SCREW LOCKWASHER
4
FO6393
THROTTLE SHAFT POSITION RETAINING SCREW
5
FO16383
CHOKE SHAFT AND LEVER
6
F184579
SEAL, CHOKE ARM SWIVEL
7
F184033-1
SWIVEL, CHOKE ROD
8
F1059
FILL HD SCREW, 6 - 32 X 1/4
8A
F452925
CHOKE SOLENOID ROD
9
F391926-1
CHOKE SOLENOID PLUNGER
9A
F2033
GROOVE PIN
10
F8088
PLAIN WASHER
11
F1014
Шплинт
12
FO16385
CHOKE SHAFT RETURN SPRING
13
FO15725
CHOKE RELIEF VALVE
14
FO11103
IDLE MIXTURE SCREW SPRING
15
FO13946
IDLE MIXTURE SCREW
16
FO10280
CHOKE SHUTTER RETAINING SCREW AND LOCKWASHER
17
FO15724
CHOKE SHUTTER
18
FO10883
CHOKE RELIEF VALVE SPRING
19
FO10165
INLET SEAT GASKET
20
FO10790
INLET NEEDLE, SEAT AND GASKET
21
FO13944
FLOAT LEVER PIN
22
F10057
REPAIR PARTS KIT.
23
FO15623
FUEL BOWL GASKET
24
FO2510
FUEL BOWL RETAINING SCREW GASKET
25
FO13552
FUEL BOWL
26
FO13945
FUEL BOWL RETAINING SCREW
27
FO13554
Поплавок
28
FO17355
MAIN NOZZLE
29
FO14302
MAIN FUEL JET .084 - STD.
-
FO14109
MAIN FUEL JET .082 - OPT. - 1250 - 3750 FT.
-
FO13194
MAIN FUEL JET .080 - OPT. - 3750 - 6250 FT.
FO14306
MAIN FUEL JET .078 - OPT. - 6250 - 8250 FT.
30
F1515
HEX NUT, 5/16 - 18
31
F10000
Комплет прокладок
32
F333316
THROTTLE ROLLER SHAFT
33
F92759
Ролик
34
FO15728
THROTTLE SHAFT AND LEVER
35
F1997
STOP NUT, 8 - 32
36
FO14292
THROTTLE SHAFT RETURN SPRING
37
FO16340
THROTTLE SHUTTER
38
FO8942
THROTTLE SHUTTER RETAINING SCREW AND LOCKWASHER
39
F40906-1
FLANGE GASKET
40
FO4326
BODY CHANNEL WELCH PLUG
41
F434061-3
CARBURETOR - COMPLETE (WB16D)
42
F84314-2
ELBOW, FUEL LINE CARBURETOR
