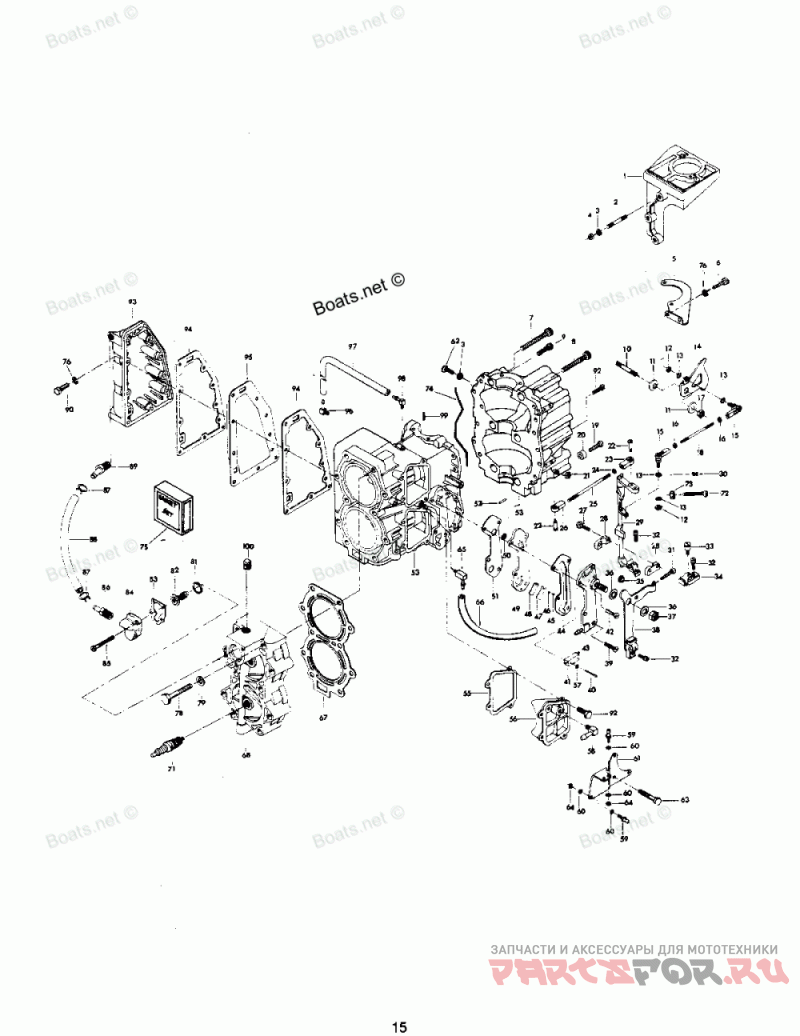

Power Head

Force H0457B81M

Force
#oem кодцена
1
F345427-1
BRACKET, STARTER MOUNTING
2
F307211
Шпилька
3
F8096
SPRING LOCKWASHER
4
F1515
HEX NUT, 5/16 - 18
5
F433675
STARTER MOUNTING BRACKET - LOWER
6
F1541
HEX SLOT HD SCREW, 1/4 - 20 X 5/8
7
F1646
HEX SOCKET HD CAP SCREW, 3/8 - 16 X 2 1/4
8
F1879
HEX SOCKET HD CAP SCREW, 3/8 - 16 X 2 1/4
9
F1535
HEX HD SCREW, 1/4 - 20 X 3/4
10
F433209
STUD, THROTTLE CAM
11
F269319
THROTTLE CAM BEARING
12
F1513
HEX NUT, 10 - 32
13
F8058
INTERNAL TOOTH LOCKWASHER
14
F433192
THROTTLE CAM
15
8177471
BALL JOINT W/BEARING
16
F1513
HEX NUT, 10 - 32
17
F1910
ELASTIC STOP NUT, 1/4 - 20
18
F85502
THROTTLE LINK
19
F1134
FILL HD SCREW, 8 - 32 X 1 1/8
20
F307942-1
Амортизатор ударов
21
F1997
STOP NUT, 8 - 32
22
F84026
SPARK CONTROL SWIVEL
23
F84036
SPARK CONTROL BEARING, L.H.
24
F1473
HEX NUT, 10 - 24
25
F269445-1
SPARK CONTROL LINK
26
F84035-2
SPARK CONTROL BEARING, R.H.
27
F1995
FILL HD SCREW, 10 - 24 X 1
28
F433689
TOWERSHAFT BEARING
29
FK433838
TOWERSHAFT W/CLAMP AND SWIVEL
30
F1727
PLASTIC RIVET
31
F1969
FILL HD SCREW, 1/4 - 20 X 3/4
32
F1556
FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/8
33
F405457
PIVOT SCREW
34
FK405020
SWIVEL W/SCREW AND NUT
35
F85610
Подшипник
36
F269052
SHIFT ARM BEARING
37
F7004
STOP NUT, 7/16 - 20
38
817793A1
SHIFT ARM W/CLAMP AND SWIVEL
39
F1136
FLAT HD SCREW, 1/4 - 20 X 1
40
F2016
FILL HD SCREW, 6 - 32 X 7/8
41
F84449
SWITCH, NEUTRAL INTERLOCK
42
F1446
SLOTTED PAN HD SCREW, 1/4 - 20 X 1
43
FA433471
CYLINDER DRAIN COVER W/FITTING
44
F93472-1
CYLINDER DRAIN COVER GASKET
45
F1286
PAN HD SCREW, 4 - 40 X 3/16
46
F8003
PLAIN WASHER
47
F93920
CYLINDER DRAIN REED STOP
48
F18160-2
REED, CYLINDER DRAIN
49
F2A433757
CYLINDER DRAIN REED PLATE W/REEDS, RD STOPS, SCRWS & SCREEN
50
F93811
SCREEN CYLINDER DRAIN REED PLATE
51
F93748-1
CYLINDER DRAIN REED PLATE GASKET
52
F8559
Палец
53
FA464010
CYLINDER W/CRANKCASE COVER, DEFLECTOR PLATE AND SCREWS
-
FC464010
SHORT BLOCK.
55
F40223
TRANSFER PORT COVER GASKET
56
FA411222
TRANSFER PORT COVER
57
F8088
PLAIN WASHER
58
F84314-2
ELBOW, FUEL LINE
59
F98273
ROD END CONNECTOR STUD
60
F8058
INTERNAL TOOTH LOCKWASHER
61
817746A1
CONNECTOR STUD BRACKET
62
F1857
HEX CAP SCREW, 5/16 - 18 X 5/8
63
F1535
HEX CAP SCREW, 1/4 - 20 X 3/4
64
F1513
HEX NUT, 10 - 32
65
F404801
Колено
66
F433254
Шланг
67
F201529-1
Прокладка головки блока цилиндров
68
818049A2
CYLINDER HEAD W/PLUGS
71
FS380227
SPARK PLUG (UL-4-J)
-
FC235227
SPARK PLUG (RL-4-J) FOR MODELS 456BOL, 457BOL AND 459BOJ
72
F1052
FILL HD SCREW, 1/4 - 20 X 1
73
F1341
HEX NUT
74
F269122-1
CRANKCASE PARTING LINE SEAL
75
FG1007-1
GASKET SET.
-
F40154-3
GASKET, EXHAUST PORT PLATE
-
F40223
GASKET, TRANSFER PORT COVER
-
F40833-4
GASKET, IDLE RELIEF COVER
-
F40906-1
GASKET, CARBURETOR
-
F93472-1
GASKET, CYLINDER DRAIN COVER
-
F93748-1
GASKET, CYLINDER DRAIN REED PLATE
-
F97067
GASKET, THERMOSTAT COVER
-
F201529-1
Прокладка
-
F269122-1
CRANKCASE PARTING LINE SEAL
-
F307279-2
GASKET, CYLINDER EXHAUST - UPPER
-
F307453-3
GASKET, CYLINDER EXHAUST - LOWER
-
F311996
GASKET, CYLINDER HEAD COVER
-
F366277
GASKET, BEARING CAGE
-
F433168
GASKET, CARBURETOR ADAPTER
-
F433406
GASKET, DEFLECTOR PLATE
76
F8083
SPRING LOCKWASHER
78
F1544
HEX HD CAP SCREW, 3/8 - 16 X 2 1/4
79
F2014
PLAIN WASHER
81
F97504
GROMMET, THERMOSTAT
82
F97068-1
Термостат
83
F97067
THERMOSTAT COVER GASKET
84
F97066-1
Крышка термостата
85
F1995
FILL HD SCREW, 10 - 24 X 1 1/16
86
F97275
FITTING, THERMOSTAT
87
F97772
Зажим
88
F311247
WATER TUBE, THERMOSTAT
89
F141275
FITTING, THERMOSTAT
90
F1971
HEX HD SCREW, 1/4 - 20 X 2 1/8
92
F1540
HEX HD SCREW, 1/4 - 20 X 5/8
93
FA433152
EXHAUST PORT COVER
94
F40154-3
EXHAUST PORT PLATE GASKET
95
F40151-1
EXHAUST PORT PLATE
96
F463314
Колено
97
FS433758
HOSE W/VALVE
98
817740A1
ELBOW ASSEMBLY
99
F8545
Пружинный Штифт
100
F328109
Заглушка
