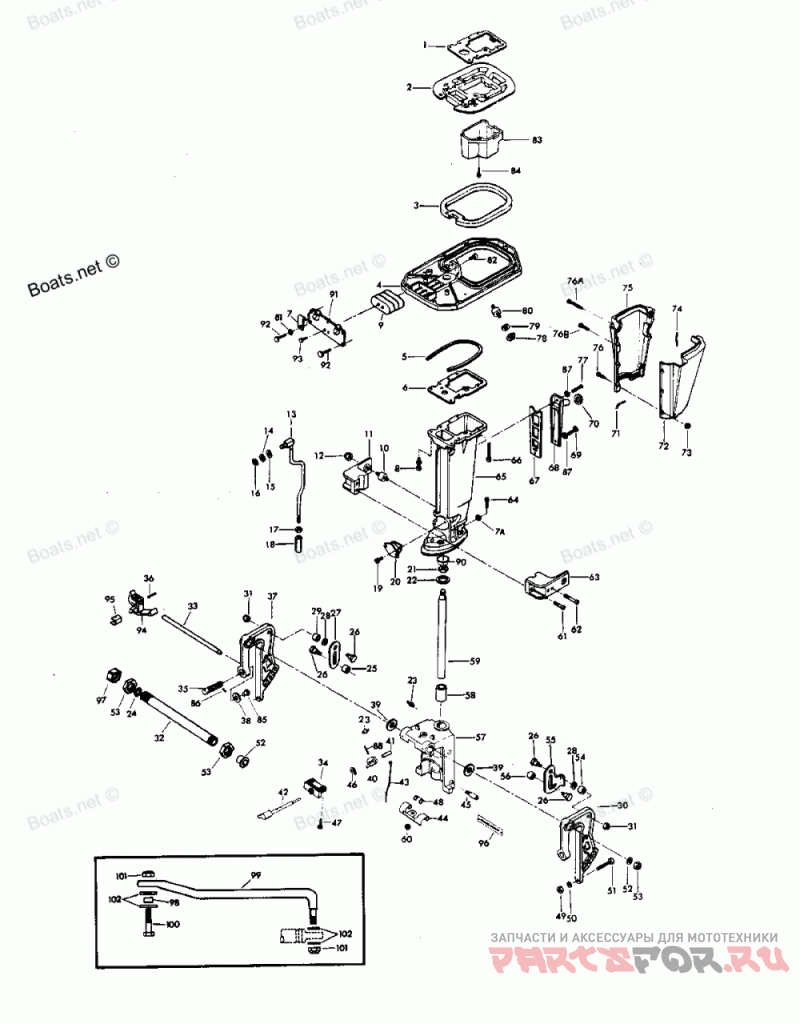

Motor Leg

Force H0456H81M

Force
#oem кодцена
1
F307279-2
CYLINDER EXHAUST GASKET UPPER
2
F433680
SPACER PLATE
3
F307989-1
SEAL, KINGPIN PLATE
4
FS307940
KINGPIN PLATE
5
F89025
DAMPENING PAD
6
F307453-3
CYLINDER EXHAUST GASKET LOWER
7
F286772-1
Зажим
7A
F8065
SPRING LOCKWASHER
8
F1947
FLANGED 12 POINT SCREW, 5/16 - 18 x 2
9
F203965
SHOCK MOUNT UPPER
10
F215962
SHOCK MOUNT SIDE LOWER
11
F433972
SHOCK MOUNT LOWER COVER - STARBOARD
12
F1326
ACORN NUT, S.S., 5/16 - 18
13
F307615
GEAR SHIFT ROD UPPER
14
F1987
PLAIN WASHER
15
F8049
BOWED SPRING WASHER
16
F185764
Стопорное кольцо
17
F1349
HEX NUT, S.S., 5/16 - 18
18
F141704
GEAR SHIFT ROD COUPLING
19
F1129
FILL HD SCREW, S.S., 5/16 - 18 X 1/2
20
F183346-1
SHOCK MOUNT LOWER
21
F84280
KINGPIN NUT
22
F89011
SWIVEL BRACKET WASHER
23
F213274
Масленка
24
F316599
SEAL, PIVOT TUBE
25
F269929
SPACER, TILT STOP
26
F366350
TILT STOP PIVOT
27
F366433
TILT STOP, STARBOARD
28
F1666
BOWED SPRING WASHER
29
F269929
SPACER, TILT STOP
30
F522532
STERN BRACKET - PORT
31
F7007
Гайка
32
F522125-1
TUBE, PIVOT STEERING
33
FA433113
STERN BRACKET LOCK BAR
34
F522884
Подшипник
35
F474073-1
CLAMP SCREW
36
F1744
Пружинный Штифт
37
F522032
STERN BRACKET - STARBOARD
38
F24074
CLAMP SCREW FOOT
39
F522286
STERN BRACKET FRICTION WASHER
40
F366364
Рычаг
41
F483884
Подшипник
42
F366827
HANDLE AND SHAFT
43
F366510-1
LINK
44
F366349
REVERSE LOCK
45
F366866
Штифт
46
F522741
RING, RETAINING-REV. LOCK SHAFT
47
F1733
PAN HD SCREW, 10 - 24 X 9/16
48
F366300
REVERSE LOCK SPRING
49
F1346
HEX NUT, S.S., 3/8 - 16
50
F1904
PLAIN WASHER
51
F1593
HEX HD SCREW, S.S., 3/8 - 16 X 3
52
F9052
PLASTIC PLUG, PIVOT TUBE
53
F1600
LOCK NUT, PIVOT TUBE
54
F269929
SPACER, TILT STOP
55
F366426
TILT STOP - PORT
56
F269929
SPACER, TILT STOP
57
FA545072
SWIVEL BRACKET
58
F191169-1
SWIVEL BRACKET BEARING
59
FA433019
KINGPIN W/PLUG
60
F1669
STOP NUT
61
F1636
HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 1 1/4
62
F1635
HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 3 1/2
63
F433973
SHOCK MOUNT LOWER COVER - PORT
64
F1929
HEX HD CAP SCREW, S.S., 3/8 - 16 X 1 1/8
65
F366133-2
MOTOR LEG FOR SHORT SHAFT MODELS
-
F435133-1
MOTOR LEG FOR LONG SHAFT MODELS
66
F1905
FILL HD SCREW, 1/4 - 20 X 3 7/16
67
F40833-4
MOTOR LEG EXHAUST COVER GASKET
68
FA89832-2
MOTOR LEG EXHAUST
69
F1199
HEX HD SCREW, 1/4 - 20 X 1
70
F89504
GROMMET, MOTOR LEG
71
F435323
PACKING, LEG COVER - LOWER
72
FA366135
LEG COVER - PORT - FOR SHORT SHAFT MODELS W/PACKING
-
FA435135
LEG COVER - PORT - FOR LONG SHAFT MODELS W/PACKING
73
F1473
HEX NUT, 10 - 24
74
F435323
PACKING, LEG COVER - UPPER
75
FA366145
LEG COVER - STARBOARD - FOR SHORT SHAFT MODELS W/PACKING
-
F434323
PACKING - LEG COVER - LOWR REAR (NOT SHWN) FOR SHRT SHFT MDL
-
FA435145
LEG COVER - STARBOARD - FOR LONG SHAFT MODELS WITH PACKING
76
F1733
FILL HD SCREW, 10 - 24 X 9/16
76A
F1767
FILL HD SCREW, 10 - 24 X 3
76B
F1768
FILL HD SCREW, 10 - 24 X 1 3/8 FOR SHORT SHAFT MODELS
-
F1768
FILL HD SCREW, 10 - 24 X 1 3/8 FOR LONG SHAFT MODELS
77
F1849
HEX HD SCREW, S.S., 1/4 - 20 X 1 3/8
78
F1346
HEX NUT, 3/8 - 16
79
F8038
PLAIN WASHER
80
F307962
SHOCK MOUNT - SIDE - UPPER
81
F8025
PLAIN WASHER
82
F1160
FLAT HD SCREW, 1/4 - 28 X 5/8
83
F307660-1
LEG EXHAUST TUBE
84
F1851
FILL HD M. SCREW W/LOCKWASHER, 10 - 24 X 1/2
85
F353480
Шпилька
86
F8538
Пружинный Штифт
87
F8083
SPRING LOCKWASHER
88
F1836
Пружинный Штифт
90
F1880
PLASTIC PLUG
91
F433946
SHOCK MOUNT UPPER COVER
92
F1540
HEX CAP SCREW, 1/4 - 20 X 5/8
93
F1211
HEX HD SCREW W/LOCKWASHER, 1/4 - 28 X 5/8
94
F433114
HANDLE, LOCK BAR
95
F286461
SPRING LOCK BAR HANDLE
96
F544390-1
DECAL, TILT LOCK
97
F9018
PLASTIC CAP, PIVOT TUBE
98
F522359
SPACER, STEERING LINK
99
F545881
LINK, STEERING
100
F2073
HEX CAP SC 3/8 - 24 X 1-5/8
101
F2093
STOP NUT 3/8 - 24
102
F8038
PLAIN WASHER
