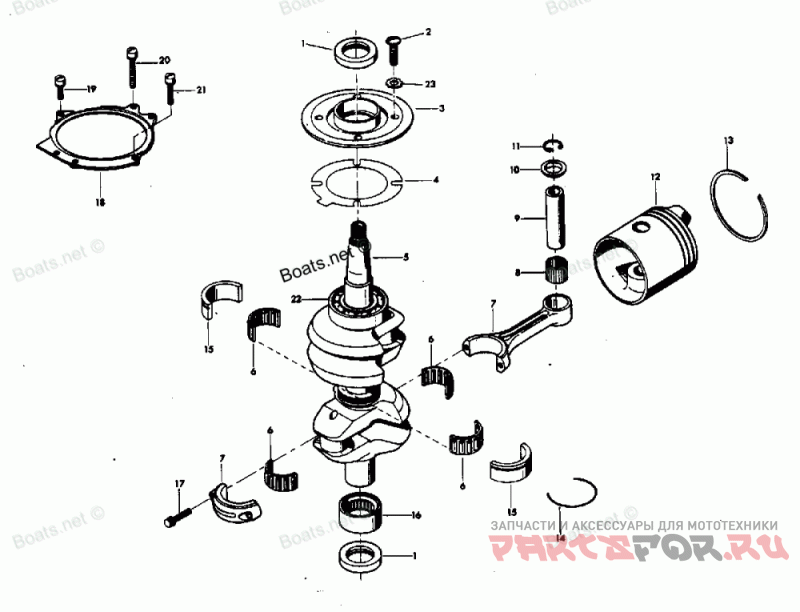

Crankshaft And Piston Group

Force H0353H81N

Force
#oem кодцена
1
F366082
MAGNETO STATOR RING
2
F1080
FILL HD SCREW, W/LOCKWASHER, 10 - 24 X 3/4
3
F335217-1
Подшипник
4
F1813
FILL HD SCREW, W/LOCKWASHER, 10 - 24 X 1-1/8
5
F40146-1
CRANKSHAFT SEAL
6
F1441
PAN HD SCREW, 1/4 - 20 X 7/8
7
F8060
EXTERNAL TOOTH LOCKWASHER (USE WITH PAN HD SCREW)
9
F366277
BEARING CAGE GASKET
10
FA485018
Коленчатый вал
11
F366013
CRANKSHAFT THRUST BEARING UPPER
12
FA40655
CRANKSHAFT CENTER MAIN BEARING RACE
13
FK85228-1
BEARING CAGE W/ROLLERS (16 PER SET)
14
F85634-2
CONNECTING ROD SCREW
15
818052A4
Шатун
16
F1812
FILL HD SCREW, W/LOCKWASHER, 10 - 24 X 1-9/16
17
F90014
CRANKSHAFT LOWER MAIN BEARING
18
F40410
Стопорное кольцо
19
F40017-2
Палец поршневой
20
F366215
Проставка
21
F428096
RETAINER, PISTON PIN
22
F377015-1
PISTON (STANDARD)
-
3SA37701
PISTON .030 OVERSIZE
-
SA377015
PISTON .010 OVERSIZE
23
FA353260
PISTON RING SET (6 PER SET) (STANDARD)
-
818112A1
PISTON RINGS (6 PER SET) .030 OVERSIZE
-
FS307260
PISTON RINGS (6 PER SET) .010 OVERSIZE
