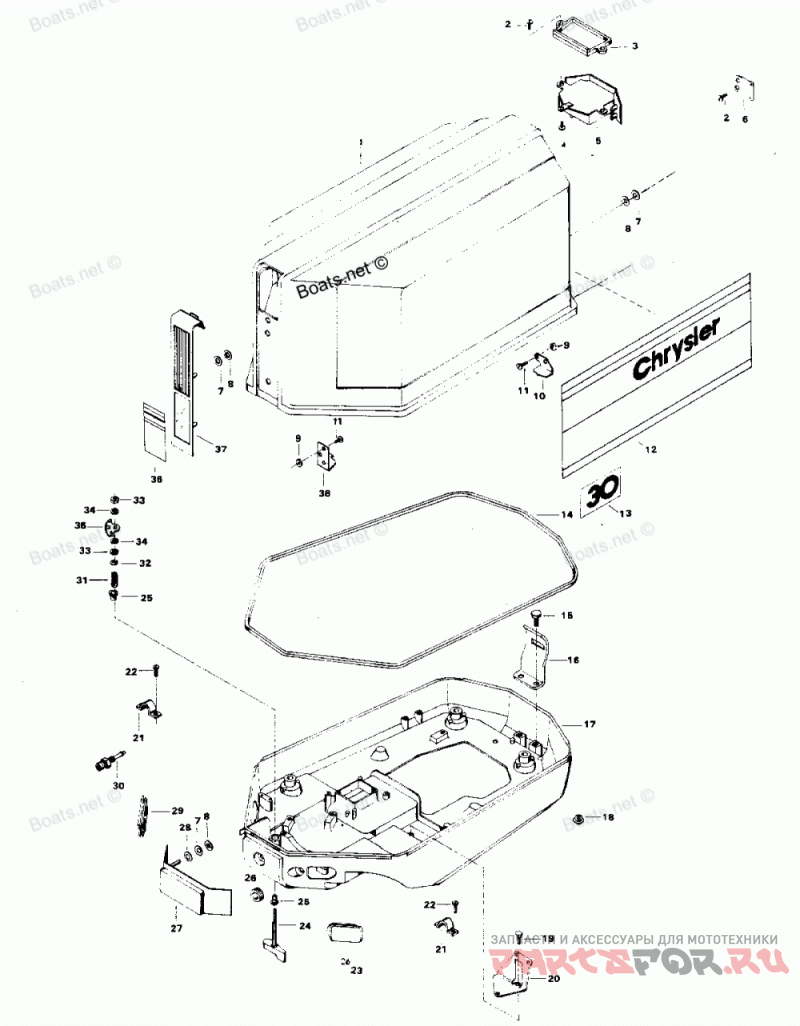

Engine Cover And Support Plate

Force H0307H81D

Force
#oem кодцена
1
818015A1
ENGINE COVER
-
2C603712
ENGINE COVER COMPLETE.
2
F2066
PAN HD SCREW, 10 X 7/16
3
F458245-1
BAFFLE TILT HANDLE
4
F2025
PAN HD SCREW, 10 X 5/8
5
FA513269
Ручка наклона
6
F463864
RETAINER, TILT HANDLE
7
F85735-1
Уплотнение
8
F1753
Застежка
9
F7011
HEX NUT, 10 - 24
10
FA458480
RETAINER, ENGINE COVER REAR
11
F1475
FILL HD SCREW, 10 - 24 X 1/2
12
FA603397
DECAL, ENGINE COVER - PORT
-
FA603396
DECAL, ENGINE COVER - STARBOARD
13
FA604386
DECAL, NUMERAL 30
14
F85756
PACKING, ENGINE COVER
15
F1922
HEX HD MACHINE SCREW, 1/4 - 20 X 5/8
16
F461774
BRACKET, RETAINER REAR
17
F458038-2
Опорная Плита
18
F1632
PLASTI-PLUG
19
F1236
HEX CAP SCREW, 1/4 - 20 X 1/2
20
F458371
BRACKET, REMOTE THROTTLE CABLE
21
F154317
CLAMP, REMOTE CABLE
22
F2107
SLOTTED FILL HD SCREW W/SPRING LOCKWASHER, 10 - 24 X 5/8
23
F462840
GROMMET, REMOTE THROTTLE CABLE
24
FA413469
COVER LATCH HANDLE W/SHAFT
25
F307818
BEARING, LATCH SHAFT
26
F53504
GROMMET, SUPPORT PLATE
27
817813A1
COVER, SUPPORT PLATE
28
F8011
PLAIN WASHER
29
F462840
GROMMET, REMOTE SHIFT CABLE
30
F434767
BUSHING, FUEL LINE
31
F183300
SPRING, LATCH SHAFT
32
F185764
Стопорное кольцо
33
F1515
HEX JAM NUT, 5/16 - 18
34
F8096
SPRING LOCKWASHER
35
F89777-1
CAM, ENGINE COVER LATCH
36
FA603892
DECAL, ENGINE COVER FRONT
37
F603711
PLATE, FRONT
38
FA458778
RETAINER, ENGINE COVER FRONT
