Engine Cover And Support Plate для лодочных моторов Force H0203H81M (1981)

Москва и регионы России

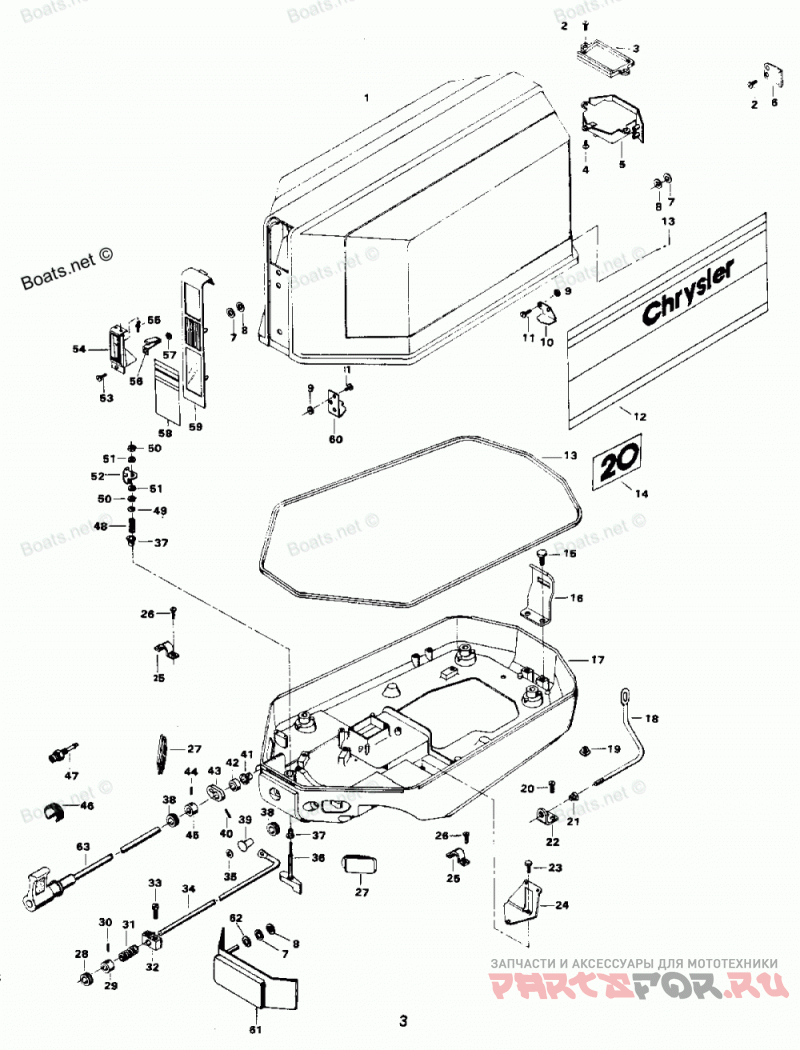

Engine Cover And Support Plate

Force H0203H81M

Engine Cover And Support Plate

#

oem код

название

цена

1

ENGINE COVER

ENGINE COVER

-

ENGINE COVER - COMPLETE.

ENGINE COVER - COMPLETE.

-

ENGINE COVER - COMPLETE.

ENGINE COVER - COMPLETE.

2

PAN HD SCREW, 10 X 7/16

PAN HD SCREW, 10 X 7/16

3

BAFFLE, TILT HANDLE

BAFFLE, TILT HANDLE

4

PAN HD SCREW, 10 X 5/8

PAN HD SCREW, 10 X 5/8

5

Ручка наклона

Ручка наклона

6

RETAINER, TILT HANDLE

RETAINER, TILT HANDLE

7

Уплотнение

Уплотнение

8

Застежка

Застежка

9

HEX NUT

HEX NUT

10

RETAINER, ENGINE COVER - REAR

RETAINER, ENGINE COVER - REAR

11

FILL HD SCREW, 10 - 24 X 1/2

FILL HD SCREW, 10 - 24 X 1/2

12

DECAL, ENGINE COVER - PORT

DECAL, ENGINE COVER - PORT

-

DECAL, ENGINE COVER - STARBOARD

DECAL, ENGINE COVER - STARBOARD

13

PACKING, ENGINE COVER

PACKING, ENGINE COVER

14

DECAL NUMERAL 20

DECAL NUMERAL 20

15

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

16

BRACKET, RETAINER - REAR

BRACKET, RETAINER - REAR

17

Опорная Плита

Опорная Плита

18

CHOKE ROD

CHOKE ROD

19

PLASTI-PLUG

PLASTI-PLUG

20

PAN HD SCREW, 10 - 24 X 3/8

PAN HD SCREW, 10 - 24 X 3/8

21

BEARING, CHOKE ROD

BEARING, CHOKE ROD

22

BRACKET, CHOKE ROD BEARING

BRACKET, CHOKE ROD BEARING

23

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

24

BRACKET, REMOTE THROTTLE CABLE

BRACKET, REMOTE THROTTLE CABLE

25

CLAMP, REMOTE CABLE

CLAMP, REMOTE CABLE

26

SLOTTED FILL HD SCREW W/SPRING LOCKWASHER, 10 - 24 X 5/8

SLOTTED FILL HD SCREW W/SPRING LOCKWASHER, 10 - 24 X 5/8

27

GROMMET, REMOTE THROTTLE CABLE (HAND START)

GROMMET, REMOTE THROTTLE CABLE (HAND START)

-

GROMMET, REMOTE THROTTLE CABLE (ALT. START)

GROMMET, REMOTE THROTTLE CABLE (ALT. START)

28

GROMMET, MAGNETO CONTROL SHAFT

GROMMET, MAGNETO CONTROL SHAFT

29

RETAINER, MAGNETO CONTROL SHAFT

RETAINER, MAGNETO CONTROL SHAFT

30

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

31

SPRING, MAGNETO CONTROL SHAFT

SPRING, MAGNETO CONTROL SHAFT

32

BEARING, MAGNETO CONTROL SHAFT

BEARING, MAGNETO CONTROL SHAFT

33

FILL HD SCREW, 10 - 24 X 7/8

FILL HD SCREW, 10 - 24 X 7/8

34

MAGNETO CONTROL SHAFT W/EYELET

MAGNETO CONTROL SHAFT W/EYELET

35

INSERT, CHOKE KNOB

INSERT, CHOKE KNOB

36

COVER LATCH HANDLE W/SHAFT

COVER LATCH HANDLE W/SHAFT

37

BEARING, LATCH SHAFT

BEARING, LATCH SHAFT

38

GROMMET, GEAR SHIFT CHOKE ROD (HAND START)

GROMMET, GEAR SHIFT CHOKE ROD (HAND START)

-

GROMMET, SUPPORT PLATE (ALT. START)

GROMMET, SUPPORT PLATE (ALT. START)

39

CHOKE KNOB

CHOKE KNOB

40

Пружинный Штифт

Пружинный Штифт

41

Подшипник

Подшипник

42

SPACER, GEAR SHIFT SHAFT

SPACER, GEAR SHIFT SHAFT

43

LEVER, GEAR SHIFT CONTROL

LEVER, GEAR SHIFT CONTROL

44

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

45

RETAINER, GEAR SHIFT SHAFT

RETAINER, GEAR SHIFT SHAFT

46

INDICATOR, GEAR SHIFT

INDICATOR, GEAR SHIFT

-

INDICATOR, GEAR SHIFT - CANADA

INDICATOR, GEAR SHIFT - CANADA

47

BUSHING, FUEL LINE

BUSHING, FUEL LINE

48

SPRING, LATCH SHAFT

SPRING, LATCH SHAFT

49

Стопорное кольцо

Стопорное кольцо

50

HEX JAM NUT, 5/16 - 18

HEX JAM NUT, 5/16 - 18

51

SPRING LOCKWASHER

SPRING LOCKWASHER

52

CAM, ENGINE COVER LATCH

CAM, ENGINE COVER LATCH

53

PAN HD SCREW, 10 - 24 X 3/8

PAN HD SCREW, 10 - 24 X 3/8

54

TRIM, STARTER HANDLE GUIDE

TRIM, STARTER HANDLE GUIDE

55

PLASTIC RIVET

PLASTIC RIVET

56

CLIP, STARTER GUIDE

CLIP, STARTER GUIDE

57

HEX NUT, 10 - 24

HEX NUT, 10 - 24

58

DECAL ENGINE COVER - FRONT

DECAL ENGINE COVER - FRONT

59

PLATE, FRONT (HAND START)

PLATE, FRONT (HAND START)

-

PLATE, FRONT (ALT. START)

PLATE, FRONT (ALT. START)

60

RETAINER, ENGINE COVER FRONT W/SCREWS AND NUTS

RETAINER, ENGINE COVER FRONT W/SCREWS AND NUTS

61

COVER, SUPPORT PLATE (ALT. START)

COVER, SUPPORT PLATE (ALT. START)

62

PLAIN WASHER

PLAIN WASHER

63

KNOB, GEAR SHIFT W/SHAFT

KNOB, GEAR SHIFT W/SHAFT
