Gear Housing для лодочных моторов Force H0202H81M (1981)

Москва и регионы России

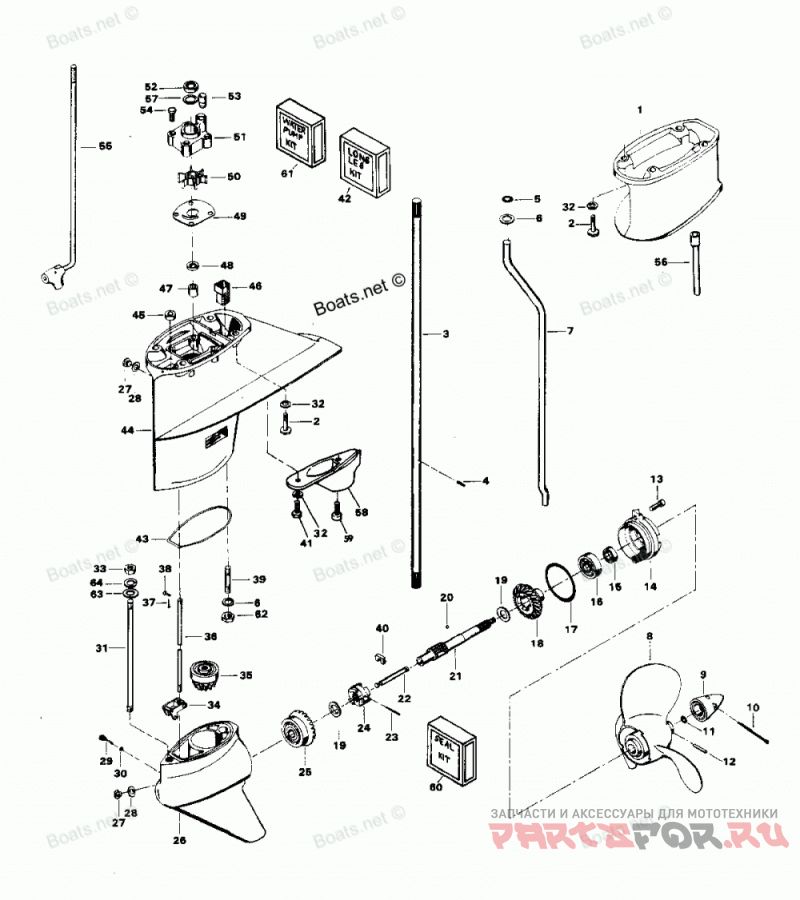

Gear Housing

Force H0202H81M

Gear Housing

#

oem код

название

цена

1

EXTENSION, MOTOR LEG

EXTENSION, MOTOR LEG

2

HEX CAP SCREW, 3/8 - 16 X 1 1/8

HEX CAP SCREW, 3/8 - 16 X 1 1/8

3

DRIVESHAFT FOR STANDARD SHAFT MODELS

DRIVESHAFT FOR STANDARD SHAFT MODELS

-

DRIVESHAFT FOR LONG SHAFT MODELS

DRIVESHAFT FOR LONG SHAFT MODELS

4

DRIVE PIN, WATER PUMP IMPELLER

DRIVE PIN, WATER PUMP IMPELLER

5

SEAL, INLET WATER LINE UPPER

SEAL, INLET WATER LINE UPPER

6

PLAIN WASHER

PLAIN WASHER

7

INLET WATER LINE FOR STANDARD SHAFT MODELS

INLET WATER LINE FOR STANDARD SHAFT MODELS

8

PROPELLER (ACCESSORY ITEM)

PROPELLER (ACCESSORY ITEM)

9

PROPELLER

PROPELLER

10

Шплинт

Шплинт

11

SEAL, PROPELLER NUT

SEAL, PROPELLER NUT

12

PROPELLER PIN, PACK OF 6 W/COTTER PIN

PROPELLER PIN, PACK OF 6 W/COTTER PIN

13

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16

14

PROPELLER SHAFT BEARING CAGE

PROPELLER SHAFT BEARING CAGE

15

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT

16

BALL BEARING, PROPELLER SHAFT

BALL BEARING, PROPELLER SHAFT

17

SEAL, PROPELLER SHAFT BEARING CAGE

SEAL, PROPELLER SHAFT BEARING CAGE

18

BEVEL GEAR REAR W/BUSHING

BEVEL GEAR REAR W/BUSHING

19

Упорная шайба

Упорная шайба

20

BALL, PROPELLER SHAFT

BALL, PROPELLER SHAFT

21

PROPELLER SHAFT ASSEMBLY

PROPELLER SHAFT ASSEMBLY

22

GEAR SHIFT ARM PIN

GEAR SHIFT ARM PIN

23

Пружинный Штифт

Пружинный Штифт

24

Муфта сцепления

Муфта сцепления

25

BEVEL GEAR FRONT W/BEARING

BEVEL GEAR FRONT W/BEARING

26

GEAR HOUSING LOWER

GEAR HOUSING LOWER

-

LOWER HEAR HOUSING - COMPLETE (NOT SHOWN)

LOWER HEAR HOUSING - COMPLETE (NOT SHOWN)

27

PLUG, GEAR HOUSING

PLUG, GEAR HOUSING

28

WASHER, GEAR HOUSING PLUG

WASHER, GEAR HOUSING PLUG

29

GEAR SHIFT ARM PIVOT PIN

GEAR SHIFT ARM PIVOT PIN

30

SEAL, "O" RING

SEAL, "O" RING

31

STUD, LONG

STUD, LONG

32

SPRING LOCKWASHER

SPRING LOCKWASHER

33

LOCK NUT

LOCK NUT

34

GEAR SHIFT ARM ASSEMBLY

GEAR SHIFT ARM ASSEMBLY

35

GEAR, BEVEL PINION ASSEMBLY W/BEARING

GEAR, BEVEL PINION ASSEMBLY W/BEARING

36

GEAR SHIFT ROD LOWER

GEAR SHIFT ROD LOWER

37

Шплинт

Шплинт

38

PIN, GEAR SHIFT ROD LOWER

PIN, GEAR SHIFT ROD LOWER

39

STUD, SHORT

STUD, SHORT

40

YOKE, SHIFT ARM

YOKE, SHIFT ARM

41

RETAINER, SNOUT

RETAINER, SNOUT

42

LONG LEG EXT. KIT

LONG LEG EXT. KIT

43

SEAL, GEAR HOUSING

SEAL, GEAR HOUSING

44

GEAR HOUSING UPPER

GEAR HOUSING UPPER

45

SEAL, SHIFT ROD LOWER

SEAL, SHIFT ROD LOWER

46

SCREEN, WATER INLET

SCREEN, WATER INLET

47

BEARING, DRIVESHAFT UPPER

BEARING, DRIVESHAFT UPPER

48

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

49

WATER PUMP BACK PLATE

WATER PUMP BACK PLATE

50

WATER PUMP IMPELLER

WATER PUMP IMPELLER

51

WATER PUMP BODY

WATER PUMP BODY

52

Сальник водяного насоса

Сальник водяного насоса

53

SEAL, INLET WATER LINE LOWER

SEAL, INLET WATER LINE LOWER

54

HEX HD CAP SCREW, 1/4 - 20 X 1 1/4

HEX HD CAP SCREW, 1/4 - 20 X 1 1/4

55

GEAR SHIFT ROD INTERMEDIATE FOR STANDARD SHAFT MODELS

GEAR SHIFT ROD INTERMEDIATE FOR STANDARD SHAFT MODELS

-

GEAR SHIFT ROD INTERMEDIATE FOR LONG SHAFT MODELS

GEAR SHIFT ROD INTERMEDIATE FOR LONG SHAFT MODELS

56

EXTENSION, INLET WATER LINE

EXTENSION, INLET WATER LINE

57

DISC, WATER PUMP LOCATING

DISC, WATER PUMP LOCATING

58

EXHAUST SNOUT

EXHAUST SNOUT

59

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1

60

GEAR HOUSING SEAL KIT.

GEAR HOUSING SEAL KIT.

61

Рем.комплект помпы

Рем.комплект помпы

62

LOCK NUT

LOCK NUT

63

Уплотнение

Уплотнение

64

PLAIN WASHER

PLAIN WASHER
