Motor Leg для лодочных моторов Force H0095B81G (1981)

Москва и регионы России

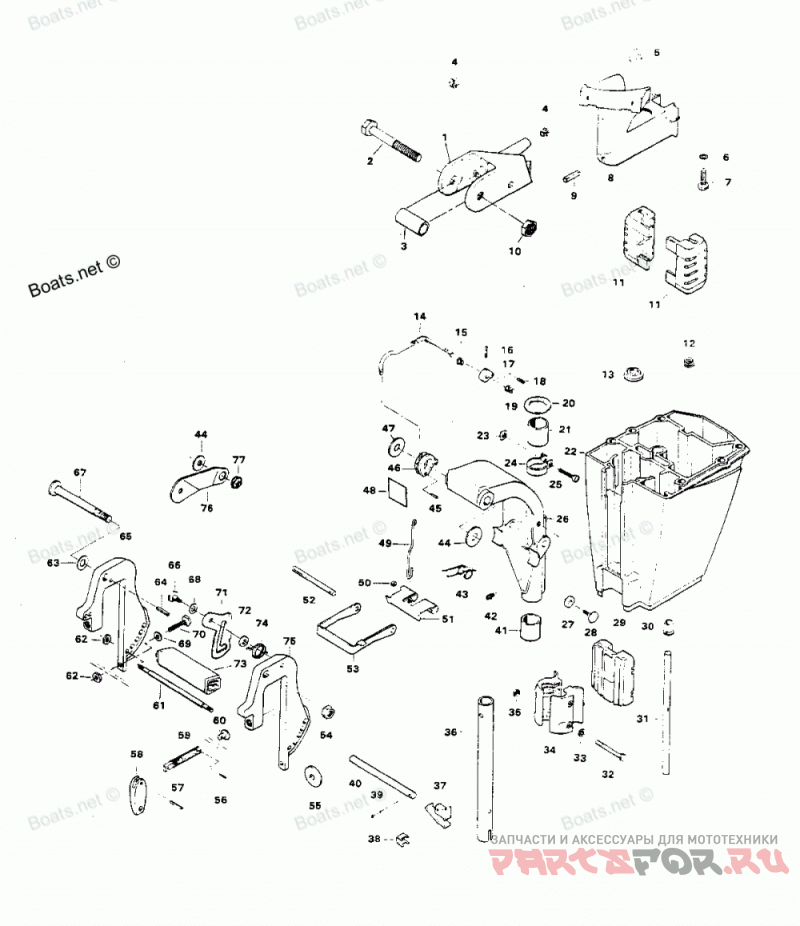

Motor Leg

Force H0095B81G

Motor Leg

#

oem код

название

цена

1

STEERING HANDLE BRACKET

STEERING HANDLE BRACKET

2

SCREW, STEERING HDL. BRKT.

SCREW, STEERING HDL. BRKT.

3

SPACER, STEERING HDL. BRKT.

SPACER, STEERING HDL. BRKT.

4

Подшипник

Подшипник

5

Амортизатор ударов

Амортизатор ударов

6

EXTERNAL TOOTH LOCKWASHER

EXTERNAL TOOTH LOCKWASHER

7

HEX CAP SCREW, 5/16 - 18 X 5/8

HEX CAP SCREW, 5/16 - 18 X 5/8

8

STEERING ARM

STEERING ARM

9

Пружинный Штифт

Пружинный Штифт

10

LOCK NUT 3/8 - 16

LOCK NUT 3/8 - 16

11

SHOCK MOUNT UPPER

SHOCK MOUNT UPPER

12

SPRING, LEG WATER BRACKET

SPRING, LEG WATER BRACKET

13

SEAL, WATER LINE UPPER

SEAL, WATER LINE UPPER

14

LEVER, REVERSE LOCK INTERMEDIATE ASSEMBLY

LEVER, REVERSE LOCK INTERMEDIATE ASSEMBLY

15

Подшипник

Подшипник

16

Пружинный Штифт

Пружинный Штифт

17

LEVER, REVERSE LOCK

LEVER, REVERSE LOCK

18

Пружинный Штифт

Пружинный Штифт

19

Подшипник

Подшипник

20

WASHER, SWIVEL BRACKET

WASHER, SWIVEL BRACKET

21

BEARING, SWIVEL BRACKET

BEARING, SWIVEL BRACKET

22

MOTOR LEG

MOTOR LEG

23

SQUARE NUT, 1/4 - 20

SQUARE NUT, 1/4 - 20

24

CLAMP, STEERING HANDLE

CLAMP, STEERING HANDLE

25

FILL HD SCREWS, 1/4 - 20 X 1-3/8

FILL HD SCREWS, 1/4 - 20 X 1-3/8

26

SWIVEL BRACKET

SWIVEL BRACKET

27

SPACER, TILT LOCK

SPACER, TILT LOCK

28

TILT LOCK PIVOT

TILT LOCK PIVOT

29

SHOCK MOUNT LOWER

SHOCK MOUNT LOWER

30

SLEEVE WATER LINE

SLEEVE WATER LINE

31

WATER LINE

WATER LINE

32

HEX CAP SCREW, 1/4 - 20 X 2-3/8

HEX CAP SCREW, 1/4 - 20 X 2-3/8

33

SPRING LOCKWASHER

SPRING LOCKWASHER

34

BRACKET, SHOCK MOUNT LOWER

BRACKET, SHOCK MOUNT LOWER

35

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

36

KING PIN

KING PIN

37

LOCK BAR HANDLE

LOCK BAR HANDLE

38

SPRING, LOCK BAR HANDLE

SPRING, LOCK BAR HANDLE

39

Пружинный Штифт

Пружинный Штифт

40

LOCK BAR

LOCK BAR

41

BEARING, SWIVEL BRACKET

BEARING, SWIVEL BRACKET

42

Масленка

Масленка

43

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK

44

WASHER, STERN BRACKET

WASHER, STERN BRACKET

45

Пружинный Штифт

Пружинный Штифт

46

REVERSE LOCK RELEASE LEVER

REVERSE LOCK RELEASE LEVER

47

Шайба

Шайба

48

DECAL, TILT RELEASE

DECAL, TILT RELEASE

49

LINK, REVERSE LOCK LEVER

LINK, REVERSE LOCK LEVER

50

SPACER, REVERSE LOCK

SPACER, REVERSE LOCK

51

REVERSE LOCK

REVERSE LOCK

52

GROOVE PIN

GROOVE PIN

53

BRACKET SHALLOW WATER DRIVE

BRACKET SHALLOW WATER DRIVE

54

STOP NUT, 3/8 - 16

STOP NUT, 3/8 - 16

55

CLAMP SCREW FOOT

CLAMP SCREW FOOT

56

Пружинный Штифт

Пружинный Штифт

57

Пружинный Штифт

Пружинный Штифт

58

HANDLE, CLAMP SCREW

HANDLE, CLAMP SCREW

59

CLAMP SCREW

CLAMP SCREW

60

STUD CLAMP SCREW

STUD CLAMP SCREW

61

TIE BAR

TIE BAR

62

LOCK NUT

LOCK NUT

63

PLAIN WASHER

PLAIN WASHER

64

STERN BRACKET PIVOT BOLT

STERN BRACKET PIVOT BOLT

65

STERN BRACKET

STERN BRACKET

66

TILT LOCK PIVOT

TILT LOCK PIVOT

67

Пружинный Штифт

Пружинный Штифт

68

BOWED SPRING WASHER

BOWED SPRING WASHER

69

PLAIN WASHER

PLAIN WASHER

70

HEX SLOTTED HD SCREW, 1/4 - 20 X 3 3/16

HEX SLOTTED HD SCREW, 1/4 - 20 X 3 3/16

71

TILT LOCK

TILT LOCK

72

SPACER, TILT LOCK

SPACER, TILT LOCK

73

CARRYING HANDLE

CARRYING HANDLE

74

SPRING, TILT STOP

SPRING, TILT STOP

75

STERN BRACKET PORT

STERN BRACKET PORT

76

BRACKET, LOCK STEERING

BRACKET, LOCK STEERING

77

NUT, STEERING LOCK BRACKET

NUT, STEERING LOCK BRACKET
