Gear Housing для лодочных моторов Force H0092H81H (1981)

Москва и регионы России

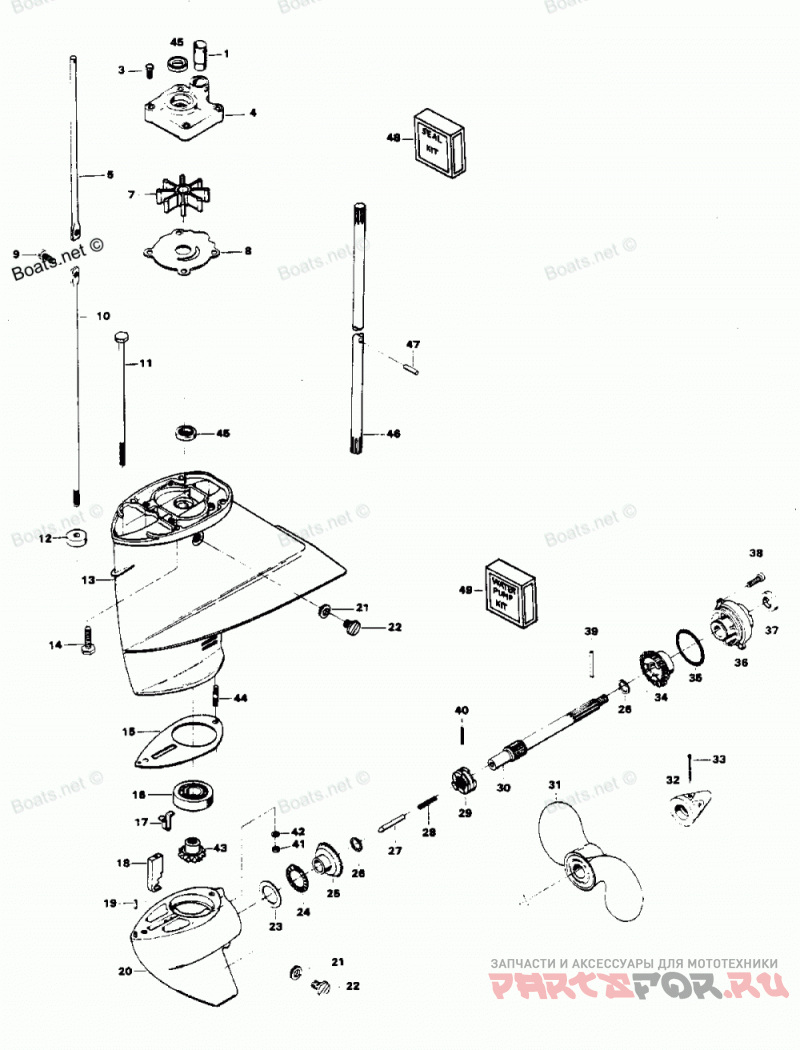

Gear Housing

Force H0092H81H

Gear Housing

#

oem код

название

цена

1

SEAL, INLET WATER LINE

SEAL, INLET WATER LINE

3

HEX HD SCREW, 1/4 - 20 X 1 1/4

HEX HD SCREW, 1/4 - 20 X 1 1/4

4

WATER PUMP BODY

WATER PUMP BODY

5

GEAR SHIFT ROD UPPER

GEAR SHIFT ROD UPPER

7

WATER PUMP IMPELLER

WATER PUMP IMPELLER

8

WATER PUMP BACK PLATE

WATER PUMP BACK PLATE

9

SOCKET HD SCREW W/LOCKWASHER, 10 - 24 X 1/2

SOCKET HD SCREW W/LOCKWASHER, 10 - 24 X 1/2

10

GEAR SHIFT ROD LOWER, FOR STANDARD SHAFT MODELS

GEAR SHIFT ROD LOWER, FOR STANDARD SHAFT MODELS

11

HEX BOLT, 1/4 - 20 X 7

HEX BOLT, 1/4 - 20 X 7

12

SEAL, GEAR SHIFT ROD LOWER

SEAL, GEAR SHIFT ROD LOWER

13

GEAR HOUSING UPPER

GEAR HOUSING UPPER

14

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

15

GASKET, GEAR HOUSING

GASKET, GEAR HOUSING

16

Подшипник

Подшипник

17

SPRING, CAM DETENT

SPRING, CAM DETENT

18

CLUTCH, SHIFT CAM

CLUTCH, SHIFT CAM

19

Пружинный Штифт

Пружинный Штифт

20

GEAR HOUSING LOWER

GEAR HOUSING LOWER

-

LOWER GEAR HOUSING COMPLETE (NOT SHOWN)

LOWER GEAR HOUSING COMPLETE (NOT SHOWN)

21

NYLTITE WASHER

NYLTITE WASHER

22

GEAR HOUSING PLUG

GEAR HOUSING PLUG

23

RACE, PROPELLER SHAFT BEARING

RACE, PROPELLER SHAFT BEARING

24

BEARING, RADIAL, PROPELLER SHAFT

BEARING, RADIAL, PROPELLER SHAFT

25

BEVEL GEAR FRONT W/BEARING

BEVEL GEAR FRONT W/BEARING

26

Упорная шайба

Упорная шайба

27

CLUTCH SHIFT PIN

CLUTCH SHIFT PIN

28

Пружинка

Пружинка

29

Муфта сцепления

Муфта сцепления

30

Вал гребного винта

Вал гребного винта

31

PROPELLER (ACCESSORY ITEM)

PROPELLER (ACCESSORY ITEM)

32

PROPELLER NUT

PROPELLER NUT

33

Шплинт

Шплинт

34

BEVEL GEAR REAR W/BEARING

BEVEL GEAR REAR W/BEARING

35

SEAL, PROP SHAFT BEARING CAGE

SEAL, PROP SHAFT BEARING CAGE

36

PROPELLER SHAFT BEARING CAGE

PROPELLER SHAFT BEARING CAGE

37

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT

38

FILL HD SCREW, 1/4 - 20 X 9/16

FILL HD SCREW, 1/4 - 20 X 9/16

39

PROPELLER PIN, PACK OF 3

PROPELLER PIN, PACK OF 3

40

Пружинный Штифт

Пружинный Штифт

41

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

42

SPRING LOCKWASHER

SPRING LOCKWASHER

43

GEAR, BEVEL PINION

GEAR, BEVEL PINION

44

STUD, GEAR HOUSING REAR

STUD, GEAR HOUSING REAR

45

SEAL, DRIVESHAFT AND WATER PUMP

SEAL, DRIVESHAFT AND WATER PUMP

46

DRIVESHAFT, FOR STANDARD SHAFT MODELS

DRIVESHAFT, FOR STANDARD SHAFT MODELS

47

WATER PUMP IMPELLER DRIVE PIN

WATER PUMP IMPELLER DRIVE PIN

50

GEAR HOUSING SEAL KIT.

GEAR HOUSING SEAL KIT.

51

Рем.комплект помпы

Рем.комплект помпы

-

SCREW, 1/4 - 20 X 1-1/4

SCREW, 1/4 - 20 X 1-1/4

-

BACK PLATE, WATER PUMP

BACK PLATE, WATER PUMP

-

Импиллер

Импиллер

-

SEAL, WATERLINE

SEAL, WATERLINE

-

DRIVE PIN, WATER PUMP

DRIVE PIN, WATER PUMP

-

BODY, WATER PUMP

BODY, WATER PUMP
