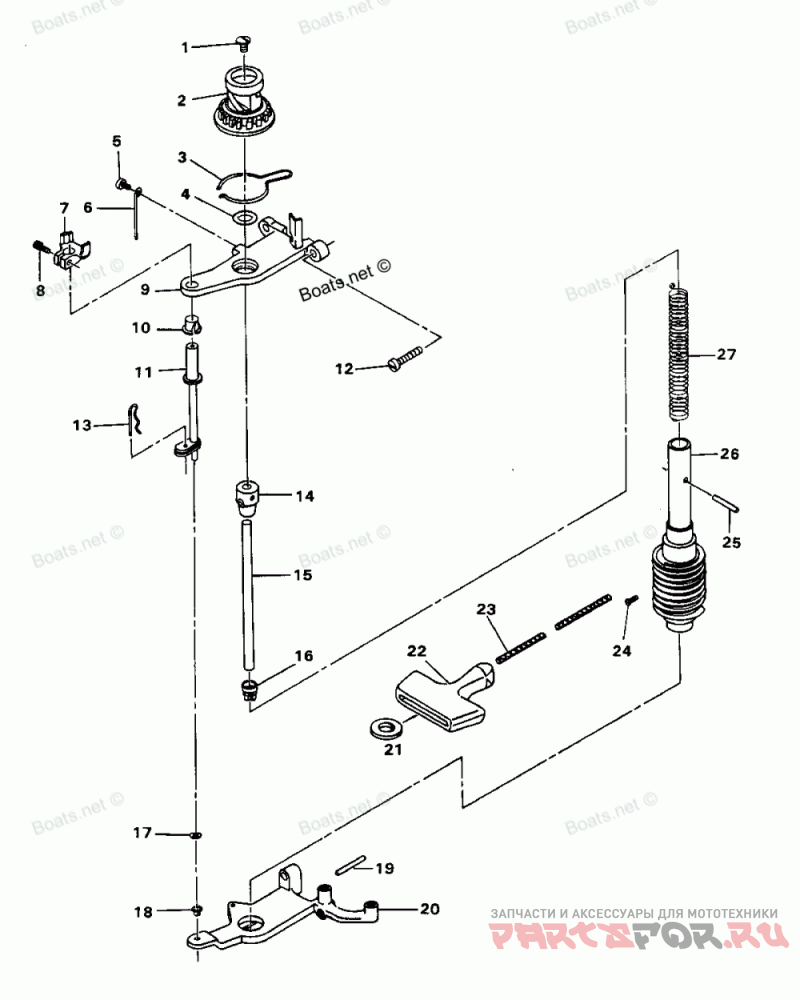

Стартер для лодочных моторов Force H0072B81D (1981)

Москва и регионы России

Стартер

Force H0072B81D

Стартер

#

oem код

название

цена

1

Винт

Винт

2

GEAR STARTER PINION

GEAR STARTER PINION

3

SPRING STARTER PINION

SPRING STARTER PINION

4

Уплотнительное кольцо

Уплотнительное кольцо

5

PAN HD SCREW, 10 - 24 X 3/8

PAN HD SCREW, 10 - 24 X 3/8

6

GUIDE STARTER ROPE

GUIDE STARTER ROPE

7

INTERLOCK STARTER

INTERLOCK STARTER

8

HEX HD SCREW, 1/4 - 20 X 3/4

HEX HD SCREW, 1/4 - 20 X 3/4

9

BRACKET STARTER UPPER

BRACKET STARTER UPPER

10

BEARING STARTER BRACKET UPPER

BEARING STARTER BRACKET UPPER

11

SHAFT INTERLOCK

SHAFT INTERLOCK

12

FILL HD SCREW, 1/4 - 20 X 1

FILL HD SCREW, 1/4 - 20 X 1

13

Шплинт

Шплинт

14

DRIVE STARTER REWIND SPRING

DRIVE STARTER REWIND SPRING

15

POST STARTER SPRING GUIDE

POST STARTER SPRING GUIDE

16

RETAINER STARTER REWIND SPRING

RETAINER STARTER REWIND SPRING

17

BOWED SPRING WASHER

BOWED SPRING WASHER

18

BEARING STARTER BRACKET LOWER

BEARING STARTER BRACKET LOWER

19

SPRING PIN, 1/8 X 1 3/4

SPRING PIN, 1/8 X 1 3/4

20

BRACKET STARTER LOWER

BRACKET STARTER LOWER

21

Шайба

Шайба

22

HANDLE STARTER ROPE

HANDLE STARTER ROPE

23

ROPE STARTER

ROPE STARTER

24

RD HD SHEET METAL SCREW #4 X 1/4

RD HD SHEET METAL SCREW #4 X 1/4

25

PIN STARTER PINION

PIN STARTER PINION

26

SPOOL STARTER

SPOOL STARTER

27

SPRING STARTER REWIND

SPRING STARTER REWIND
