Gear Housing для лодочных моторов Force H0042081C (1981)

Москва и регионы России

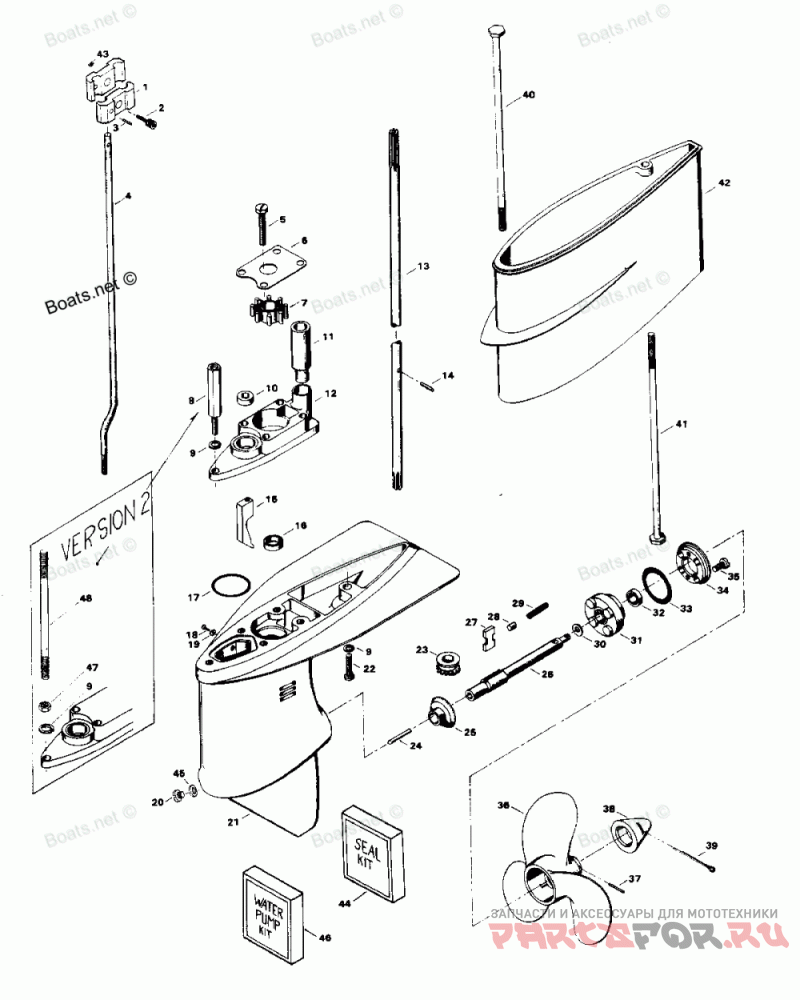

Gear Housing

Force H0042081C

Gear Housing

#

oem код

название

цена

1

COUPLING, GEAR SHIFT ROD

COUPLING, GEAR SHIFT ROD

2

SOCKET HD SCREW W/LOCKWASHER, 10 - 24 X 5/8

SOCKET HD SCREW W/LOCKWASHER, 10 - 24 X 5/8

3

Пружинный Штифт

Пружинный Штифт

4

ROD, GEAR SHIFT LOWER (42H1H, 42B1H)

ROD, GEAR SHIFT LOWER (42H1H, 42B1H)

-

GEAR SHIFT ROD LOWER (43H1H, 43B1H)

GEAR SHIFT ROD LOWER (43H1H, 43B1H)

5

FILL HD SCREW, 1/4 - 20 X 1 1/4

FILL HD SCREW, 1/4 - 20 X 1 1/4

6

Пластина водяной помпы

Пластина водяной помпы

7

Импиллер

Импиллер

8

Шпилька

Шпилька

9

SPRING LOCKWASHER

SPRING LOCKWASHER

10

SEAL, SHIFT ROD

SEAL, SHIFT ROD

11

SEAL, WATERLINE

SEAL, WATERLINE

12

WATER PUMP BODY W/PLUG

WATER PUMP BODY W/PLUG

13

DRIVESHAFT - STANDARD LEG

DRIVESHAFT - STANDARD LEG

-

DRIVESHAFT - LONG LEG

DRIVESHAFT - LONG LEG

14

PIN, WATER PUMP IMPELLER DRIVE

PIN, WATER PUMP IMPELLER DRIVE

15

CAM, CLUTCH SHIFT

CAM, CLUTCH SHIFT

16

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

17

Уплотнение

Уплотнение

18

FILL HD SCREW, 10 - 24 X 1/4

FILL HD SCREW, 10 - 24 X 1/4

19

Шайба

Шайба

20

PLUG, GEAR HOUSING

PLUG, GEAR HOUSING

21

GEAR HOUSING

GEAR HOUSING

-

GEAR HOUSING COMPLETE (43H1H, 43B1H).

GEAR HOUSING COMPLETE (43H1H, 43B1H).

-

GEAR HOUSING COMPLETE (42H1H, 42B1H).

GEAR HOUSING COMPLETE (42H1H, 42B1H).

22

HEX CAP SCREW, 1/4 - 20 X 1 (42H1H, 42B1H)

HEX CAP SCREW, 1/4 - 20 X 1 (42H1H, 42B1H)

23

BEVEL PINION GEAR

BEVEL PINION GEAR

24

CLUTCH SHIFT PIN

CLUTCH SHIFT PIN

25

BEVEL GEAR W/BEARING

BEVEL GEAR W/BEARING

26

PROPELLER SHAFT (42H1H, 42B1H)

PROPELLER SHAFT (42H1H, 42B1H)

-

PROPELLER SHAFT (43H1H, 43B1H)

PROPELLER SHAFT (43H1H, 43B1H)

27

Муфта сцепления

Муфта сцепления

28

PIN, CLUTCH GUIDE

PIN, CLUTCH GUIDE

29

Пружинка

Пружинка

30

Проставка

Проставка

31

BEARING CAGE W/BEARING AND ILLUS. 32

BEARING CAGE W/BEARING AND ILLUS. 32

32

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT

33

SEAL, "O" RING

SEAL, "O" RING

34

RETAINER, PROPELLER SHAFT BEARING CAGE

RETAINER, PROPELLER SHAFT BEARING CAGE

35

FILL HD SCREW, 1/4 - 20 X 5/8

FILL HD SCREW, 1/4 - 20 X 5/8

36

PROPELLER (43H1H, 43B1H)

PROPELLER (43H1H, 43B1H)

-

PROPELLER (42H1H, 42B1H)

PROPELLER (42H1H, 42B1H)

37

PROPELLER PIN, PACK OF 3 (43H1H, 43B1H)

PROPELLER PIN, PACK OF 3 (43H1H, 43B1H)

-

PROPELLER PIN, PACK OF 3 (42H1H, 42B1H)

PROPELLER PIN, PACK OF 3 (42H1H, 42B1H)

38

PROPELLER NUT

PROPELLER NUT

39

Шплинт

Шплинт

40

HEX CAP SCREW, 1/4 - 20 X 7 (43H1H, 43B1H)

HEX CAP SCREW, 1/4 - 20 X 7 (43H1H, 43B1H)

41

HEX CAP SCREW, 1/4 - 20 X 6 (43H1H, 43B1H)

HEX CAP SCREW, 1/4 - 20 X 6 (43H1H, 43B1H)

42

EXTENSION, MOTOR FOR MODELS 43H1H, 43B1H

EXTENSION, MOTOR FOR MODELS 43H1H, 43B1H

43

LOCK NUT, 10 - 24

LOCK NUT, 10 - 24

44

GEAR HOUSING SEAL KIT.

GEAR HOUSING SEAL KIT.

45

Шайба

Шайба

46

WATER PUMP KIT.

WATER PUMP KIT.

WATERLINE SEAL

WATERLINE SEAL

BODY, WATER PUMP

BODY, WATER PUMP

PLATE, WATER PUMP TOP

PLATE, WATER PUMP TOP

Импеллер

Импеллер

Уплотнение

Уплотнение

FILL H.M.S. 1/4-20 X 1-1/4

FILL H.M.S. 1/4-20 X 1-1/4

47

HEX NUT (VERSION II)

HEX NUT (VERSION II)

48

STUD (42H1H, 42B1H) VERSION II

STUD (42H1H, 42B1H) VERSION II

-

STUD (43H1H, 43B1H) VERSION II

STUD (43H1H, 43B1H) VERSION II
