Motor Leg для лодочных моторов Force H1408H80C (1980)

Москва и регионы России

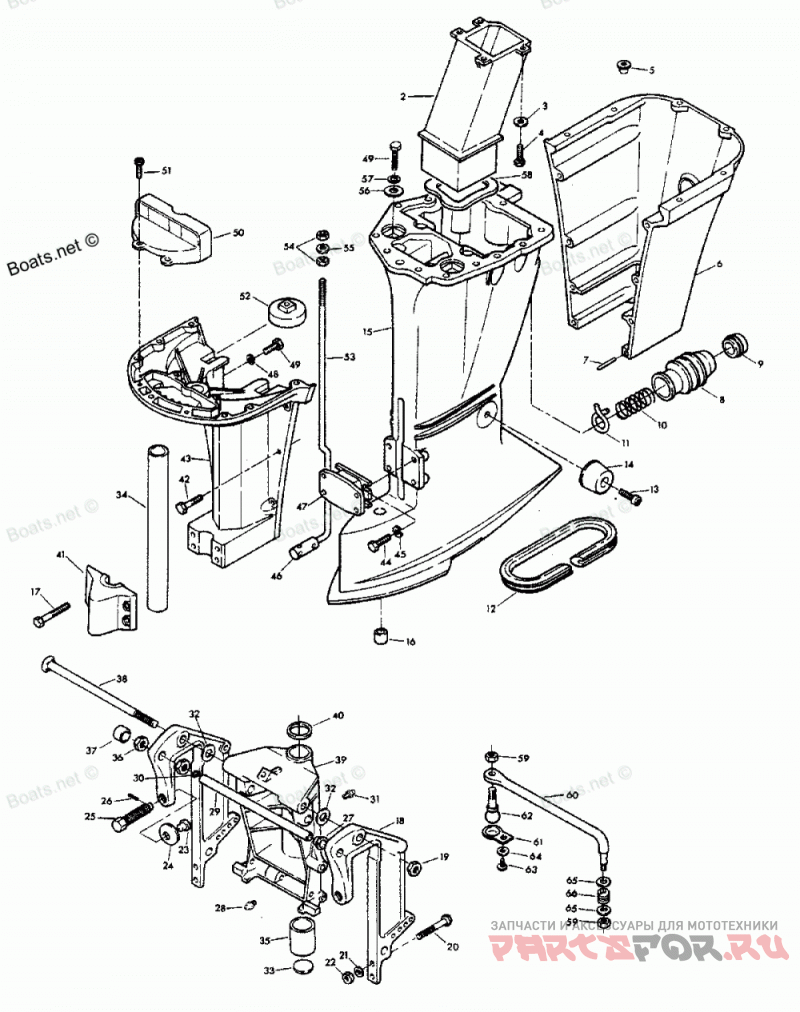

Motor Leg

Force H1408H80C

Motor Leg

#

oem код

название

цена

1

DECAL - LEG (PORT)

DECAL - LEG (PORT)

-

DECAL - LEG (STBD)

DECAL - LEG (STBD)

2

EXHAUST TUBE

EXHAUST TUBE

3

SPRING LOCKWASHER

SPRING LOCKWASHER

4

HEX SLOT HED SCREW, 1/4 - 20 X 3/4

HEX SLOT HED SCREW, 1/4 - 20 X 3/4

5

Заглушка

Заглушка

6

MOTOR LEG COVER REAR

MOTOR LEG COVER REAR

7

Пружинный Штифт

Пружинный Штифт

8

BOOT IDLE EXHAUST

BOOT IDLE EXHAUST

9

Вставка

Вставка

10

Пружина

Пружина

11

Зажим

Зажим

12

SEAL, MOTOR LEG

SEAL, MOTOR LEG

13

HEX SOCKET HD CAP SCREWS, 5/16 - 18 X 9/16

HEX SOCKET HD CAP SCREWS, 5/16 - 18 X 9/16

14

SHOCK MOUNT LOWER REAR

SHOCK MOUNT LOWER REAR

15

MOTOR LEG

MOTOR LEG

16

SEAL, GEAR SHIFT ROD

SEAL, GEAR SHIFT ROD

17

HEX BOLT, 5/16 - 18 X 1-3/4

HEX BOLT, 5/16 - 18 X 1-3/4

18

STERN BRACKET

STERN BRACKET

19

STOP NUT

STOP NUT

20

HEX HD SCREW, 3/8 - 16 X 3

HEX HD SCREW, 3/8 - 16 X 3

21

PLAIN WASHER

PLAIN WASHER

22

HEX NUT

HEX NUT

23

Шпилька

Шпилька

24

CLAMP SCREW FOOT

CLAMP SCREW FOOT

25

CLAMP SCREW

CLAMP SCREW

26

Пружинный Штифт

Пружинный Штифт

27

Заглушка

Заглушка

28

Масленка

Масленка

29

TUBE, STEERING SUPPORT

TUBE, STEERING SUPPORT

30

SEAL, STEERING TUBE

SEAL, STEERING TUBE

31

Масленка

Масленка

32

FRICTION WASHER

FRICTION WASHER

33

WELCH PLUG

WELCH PLUG

34

KINGPIN W/PLUG

KINGPIN W/PLUG

35

Подшипник

Подшипник

36

NUT, STEERING SUPPORT TUBE

NUT, STEERING SUPPORT TUBE

37

Крышка

Крышка

38

STERN BRACKET PIVOT BOLT

STERN BRACKET PIVOT BOLT

39

SWIVEL BRACKET W/BEARINGS & GREASE FITTINGS

SWIVEL BRACKET W/BEARINGS & GREASE FITTINGS

40

Шайба

Шайба

41

KINGPIN CAP

KINGPIN CAP

42

HEX HD M. SCREW, 1/4 - 20 X 1-1/4

HEX HD M. SCREW, 1/4 - 20 X 1-1/4

43

LEG COVER FRONT
W/ILLUSTRATION 42

LEG COVER FRONT
W/ILLUSTRATION 42

44

HEX BOLT, 5/16 - 18 X 7/8

HEX BOLT, 5/16 - 18 X 7/8

45

SPRING LOCKWASHER

SPRING LOCKWASHER

46

COUPLER, GEAR SHIFT ROD

COUPLER, GEAR SHIFT ROD

47

SHOCK MOUNT LOWER

SHOCK MOUNT LOWER

48

SPRING LOCKWASHER

SPRING LOCKWASHER

49

HEX HD SCREW, 3/8 - 16 X 3/4

HEX HD SCREW, 3/8 - 16 X 3/4

50

BAFFLE, AIR INTAKE

BAFFLE, AIR INTAKE

51

HEX HD SCREW, 10 - 24 X 1/2

HEX HD SCREW, 10 - 24 X 1/2

52

SHOCK MOUNT UPPER

SHOCK MOUNT UPPER

53

GEAR SHIFT ROD UPPER

GEAR SHIFT ROD UPPER

54

LOCK NUT

LOCK NUT

55

PLAIN WASHER

PLAIN WASHER

56

Шайба

Шайба

57

PLAIN WASHER

PLAIN WASHER

58

SEAL, EXHAUST TUBE

SEAL, EXHAUST TUBE

59

NUT, STOP, 3/8 - 24

NUT, STOP, 3/8 - 24

60

LINK, STEERING

LINK, STEERING

61

Седло

Седло

62

STUD, STEERING BALL

STUD, STEERING BALL

63

SCREW, 8 - 32 X 1/4

SCREW, 8 - 32 X 1/4

64

Стопорная шайба

Стопорная шайба

65

Шайба

Шайба

66

Пружина

Пружина
