Карбюратор для лодочных моторов Force H1408B80C (1980)

Москва и регионы России

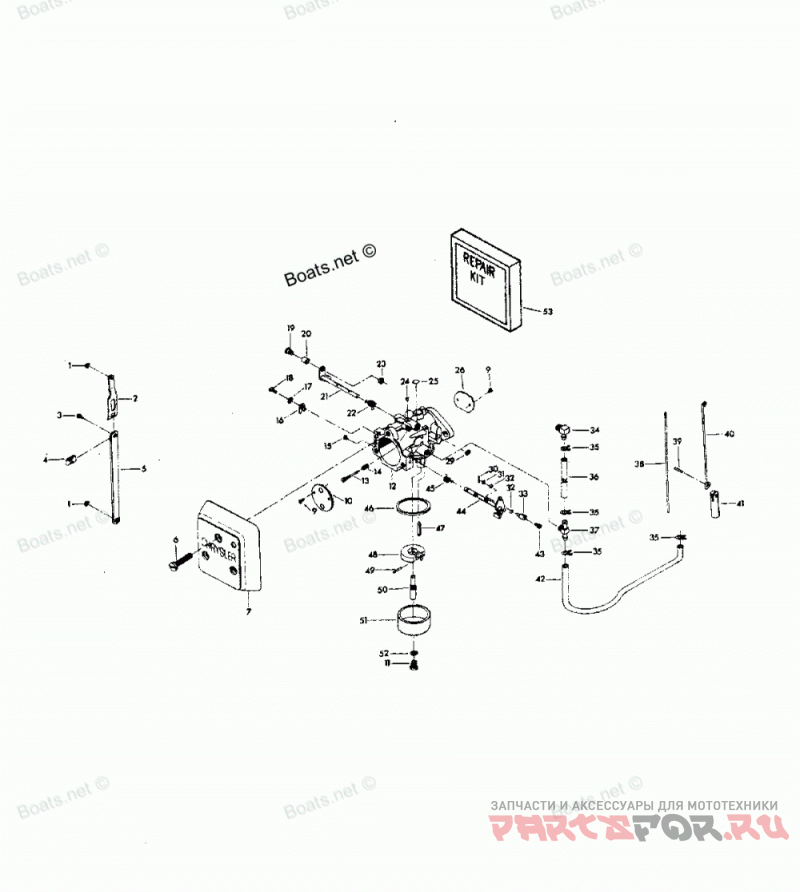

Карбюратор

Force H1408B80C

Карбюратор

#

oem код

название

цена

1

Стопорное кольцо

Стопорное кольцо

2

TIE BAR END W/SWIVEL

TIE BAR END W/SWIVEL

3

FILL HD SCREW, 8 - 32 X 3/8

FILL HD SCREW, 8 - 32 X 3/8

4

TIE BAR RETAINER

TIE BAR RETAINER

5

THROTTLE TIE BAR W/SWIVEL

THROTTLE TIE BAR W/SWIVEL

6

PAN HD SCREW, 1/4 - 20 X 1 3/8

PAN HD SCREW, 1/4 - 20 X 1 3/8

7

COVER, CARBURETOR

COVER, CARBURETOR

9

CHOKE AND THROTTLE SHUTTER SCREW

CHOKE AND THROTTLE SHUTTER SCREW

10

CHOKE SHUTTER

CHOKE SHUTTER

11

FUEL BOWL RETAINING SCREW

FUEL BOWL RETAINING SCREW

12

CARBURETOR COMPLETE (TC-5E)

CARBURETOR COMPLETE (TC-5E)

13

IDLE MIXTURE SCREW

IDLE MIXTURE SCREW

14

IDLE MIXTURE SCREW SPRING

IDLE MIXTURE SCREW SPRING

15

MAIN FUEL JET STD. .096 SEAL LEVEL - 1500 FT.

MAIN FUEL JET STD. .096 SEAL LEVEL - 1500 FT.

-

MAIN FUEL JET OPT. .0937 1500 - 3000 FT.

MAIN FUEL JET OPT. .0937 1500 - 3000 FT.

-

MAIN FUEL JET OPT. .092 3000 - 4500 FT.

MAIN FUEL JET OPT. .092 3000 - 4500 FT.

-

MAIN FUEL JET OPT. .090 4500 - 6000 FT.

MAIN FUEL JET OPT. .090 4500 - 6000 FT.

-

MAIN FUEL JET OPT. .088 6000 FT. AND UP.

MAIN FUEL JET OPT. .088 6000 FT. AND UP.

16

CLIP, CHOKE SHAFT

CLIP, CHOKE SHAFT

17

Стопорная шайба

Стопорная шайба

18

Винт

Винт

19

THROTTLE ROLLER SHAFT

THROTTLE ROLLER SHAFT

20

THROTTLE ROLLER

THROTTLE ROLLER

21

THROTTLE SHAFT AND LEVER

THROTTLE SHAFT AND LEVER

22

THROTTLE SHAFT RETURN SPRING

THROTTLE SHAFT RETURN SPRING

23

STOP NUT, 8 - 32

STOP NUT, 8 - 32

24

BODY CHANNEL CUP PLUG

BODY CHANNEL CUP PLUG

25

BODY CHANNEL WELCH PLUG

BODY CHANNEL WELCH PLUG

26

THROTTLE SHUTTER

THROTTLE SHUTTER

29

"E" RING

"E" RING

30

Шплинт

Шплинт

31

PLAIN WASHER

PLAIN WASHER

32

"O" RING SEAL

"O" RING SEAL

33

SWIVEL, TOP CARBURETOR

SWIVEL, TOP CARBURETOR

34

Колено

Колено

35

Зажим

Зажим

36

Трубопровод

Трубопровод

37

FUEL FITTING

FUEL FITTING

38

LINK, CHOKE

LINK, CHOKE

39

GROOVE PIN

GROOVE PIN

40

CHOKE ROD

CHOKE ROD

41

Плунжер

Плунжер

42

Трубопровод

Трубопровод

43

FILL HD SCREW, 6 - 32 X 1/4

FILL HD SCREW, 6 - 32 X 1/4

44

CHOKE SHAFT AND LEVER

CHOKE SHAFT AND LEVER

45

CHOKE SHAFT RETURN SPRING

CHOKE SHAFT RETURN SPRING

46

FUEL BOWL GASKET

FUEL BOWL GASKET

47

INLET NEEDLE

INLET NEEDLE

48

Поплавок

Поплавок

49

FLOAT LEVER PIN

FLOAT LEVER PIN

50

MAIN NOZZLE

MAIN NOZZLE

51

FUEL BOWL

FUEL BOWL

52

FUEL BOWL RETAINING SCREW GASKET

FUEL BOWL RETAINING SCREW GASKET

-

SWIVEL, CHOKE ROD (BOTTOM CARBURETOR) (NOT SHOWN)

SWIVEL, CHOKE ROD (BOTTOM CARBURETOR) (NOT SHOWN)

-

GASKET SET (NOT SHOWN)

GASKET SET (NOT SHOWN)

53

REPAIR PARTS KIT.

REPAIR PARTS KIT.
