Engine Cover And Support Plate для лодочных моторов Force H1008H80A (1980)

Москва и регионы России

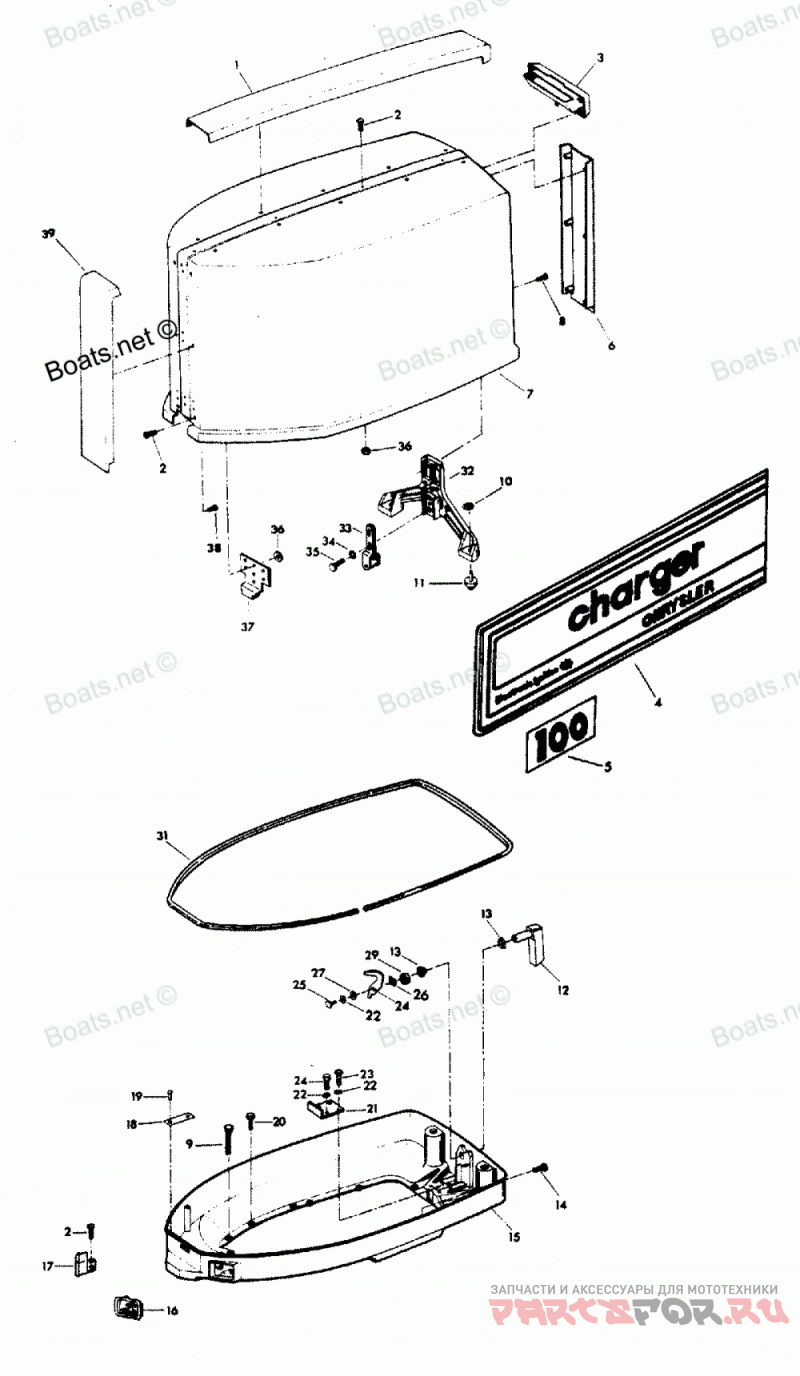

Engine Cover And Support Plate

Force H1008H80A

Engine Cover And Support Plate

#

oem код

название

цена

1

TRIM TOP

TRIM TOP

2

PAN HD MACHINE SCREW, 10 - 24 X 9/16

PAN HD MACHINE SCREW, 10 - 24 X 9/16

3

Ручка наклона

Ручка наклона

4

DECAL, ENGINE COVER PORT

DECAL, ENGINE COVER PORT

-

DECAL, ENGINE COVER STBD.

DECAL, ENGINE COVER STBD.

5

DECAL, NUMERAL 100

DECAL, NUMERAL 100

6

TRIM REAR

TRIM REAR

7

ENGINE COVER W/RETAINER, SCREWS AND NUTS

ENGINE COVER W/RETAINER, SCREWS AND NUTS

-

ENGINE COVER COMPLETE

ENGINE COVER COMPLETE

8

PAN HD SCREW W/SPRING LOCKWASHER, 1/4 - 20 X 5/8

PAN HD SCREW W/SPRING LOCKWASHER, 1/4 - 20 X 5/8

9

HEX HD CAP SCREW, 1/4 - 20 X 1 3/8

HEX HD CAP SCREW, 1/4 - 20 X 1 3/8

10

Застежка

Застежка

11

GUIDE, ENGINE COVER

GUIDE, ENGINE COVER

12

HANDLE W/SHAFT

HANDLE W/SHAFT

13

Подшипник

Подшипник

14

HEX CAP SCREW, 1/4 - 20 X 3/4

HEX CAP SCREW, 1/4 - 20 X 3/4

15

Опорная Плита

Опорная Плита

16

BUSHING, ELECTRIC CABLE

BUSHING, ELECTRIC CABLE

17

BUSHING, CABLE ENTRY

BUSHING, CABLE ENTRY

18

IDENTIFICATION PLATE W/SCREWS FOR U.S.A. MODELS

IDENTIFICATION PLATE W/SCREWS FOR U.S.A. MODELS

-

IDENTIFICATION PLATE W/SCREWS FOR CANADA MODELS

IDENTIFICATION PLATE W/SCREWS FOR CANADA MODELS

19

ROUND HD SCREW, 2 X 3/16

ROUND HD SCREW, 2 X 3/16

20

HEX SCREW, 1/4 - 20 X 5/8

HEX SCREW, 1/4 - 20 X 5/8

21

DEFLECTION STOP

DEFLECTION STOP

22

SPRING LOCKWASHER

SPRING LOCKWASHER

23

HEX CAP SCREW, 5/16 - 18 X 5/8

HEX CAP SCREW, 5/16 - 18 X 5/8

24

HEX CAP SCREW, 5/16 - 18 X 1

HEX CAP SCREW, 5/16 - 18 X 1

25

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

26

SPRING LOCKWASHER

SPRING LOCKWASHER

27

PLAIN WASHER

PLAIN WASHER

28

CAM, LATCH

CAM, LATCH

29

SPACER, LATCH SHAFT

SPACER, LATCH SHAFT

30

WAVE SPRING LOCKWASHER

WAVE SPRING LOCKWASHER

31

PACKING, COVER

PACKING, COVER

32

BRACKET, COVER LATCH

BRACKET, COVER LATCH

33

ROLLER BRACKET

ROLLER BRACKET

34

SPRING LOCKWASHER

SPRING LOCKWASHER

35

HEX CAP SCREW, 5/16 - 18 X 5/8

HEX CAP SCREW, 5/16 - 18 X 5/8

36

HEX NUT

HEX NUT

37

RETAINER, ENGINE COVER

RETAINER, ENGINE COVER

38

PAN HD TAPPING SCREW, 10 X 7/16 (TRIM TO COVER)

PAN HD TAPPING SCREW, 10 X 7/16 (TRIM TO COVER)

39

TRIM FRONT

TRIM FRONT

-

BLANKET, SILENCER TOP (NOT SHOWN)

BLANKET, SILENCER TOP (NOT SHOWN)

-

BLANKET, SILENCER SIDE (NOT SHOWN)

BLANKET, SILENCER SIDE (NOT SHOWN)
