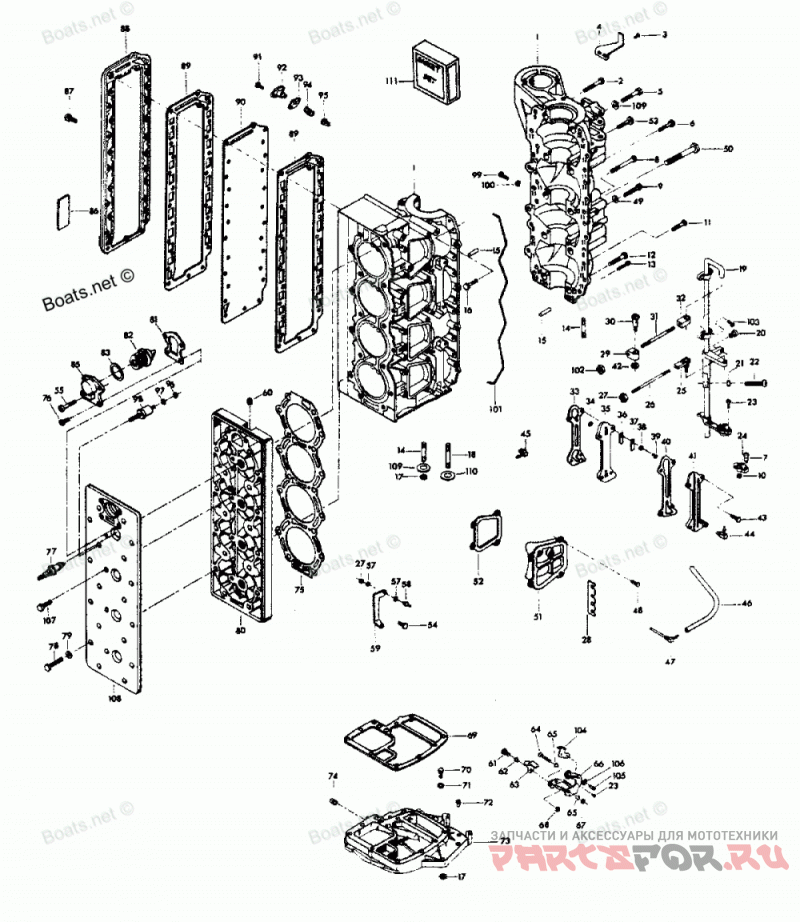

Power Head для лодочных моторов Force H1006B80B (1980)

Power Head

Force H1006B80B

oem код

название

цена

A5230101

CYLINDER W/CRANKCSE COVR, PARTNG LINE SEAL, SCRWS & DOWL PNS

FC552010

SHORT BLOCK.

F1874

HEX HD SCREW, 3/8 - 16 X 3 1/8

F1760

PAN HD SCREW, 10 - 24 X 3/8

FA480894

TIMING POINTER

F1009

HEX HD SCREW, 3/8 - 16 X 2 3/4

F1533

HEX HD SCREW, 1/4 - 20 X 7/8

F405457

PIVOT SCREW

F1699

HEX HD SCREW, 1/4 - 20 X 1 1/8

F1253

HEX SOCKET HD CAP SCREW, 3/8 - 16 X 2

F7008

Гайка

F1535

HEX HD SCREW, 1/4 - 20 X 3/4

F1872

HEX CAP SCREW, 3/8 - 16 X 1 3/4

F1099

FILL HD SCREW, 1/4 - 20 X 1 1/4

F85859

Шпилька

F8563

Палец

F1532

HEX HD SCREW, 1/4 - 20 X 1

F7004

STOP NUT, 3/8 - 16

F85211

Шпилька

817932A6

TOWERSHAFT W/SWIVEL, BEARINGS AND SCREWS

F1727

PLASTIC RIVET

F1341

HEX NUT, 1/4 - 20

F1052

FILL HD SCREW, 1/4 - 20 X 1

F1556

FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/8

FK405020

SWIVEL W/CLAMP, SHOULDER SCREW AND NUT

BALL JOINT W/STUD

THROTTLE LINK

HEX NUT, 10 - 32

CLIP, SPARK PLUG WIRE

F85035

DISTRIBUTOR, CONTROL ROD END

F85026

SWIVEL

F85445

CONTROL ROD

F85036

TOWERSHAFT CONTROL ROD END

F84748-3

Прокладка

F93811

Водозаборная решетка

F2A476757

CYLINDER DRAIN REED PLATE W/REEDS, STOPS AND SCREWS

CYLINDER DRAIN REED

REED STOP

PLAIN WASHER

PAN HD SCREW, 4 - 40 X 3/16

F84472-5

GASKET, CYLINDER DRAIN COVER

F406471-1

CYLINDER DRAIN COVER

F1935

PLAIN WASHER

F1532

HEX HD SCREW, 1/4 - 20 X 1

8181031

ELBOW, CYLINDER DRAIN LOWER

F404801

ELBOW, CYLINDER DRAIN UPPER (NOT SHOWN)

Колено

Шланг

Фитинг

HEX CAP SCREW, 1/4 - 20 X 5/8

F8104

PLAIN WASHER

F1873

HEX CAP SCREW, 3/8 - 16 X 3

FA411222

TRANSFER PORT COVER

F40223

GASKET, TRANSFER PORT COVER

F1534

HEX HD SCREW, 1/4 - 20 X 7/8

F1535

HEX CAP SCREW, 1/4 - 20 X 3/4

F1099

FILL HD SCREW, 1/4 - 20 X 1 1/4

F8058

INTERNAL TOOTH LOCKWASHER

F98273

ROD END CONNECTOR STUD

BRACKET

Заглушка

Винт

Подшипник

INTERLOCK ARM

HEX BOLTS, S.S., 5/16 - 18 X 4 1/4

F85610

Подшипник

FA480876

GEAR SHIFT ARM W/SWIVL, BEARNGS, INTRLOCK ARM & SHOULDR SCRW

F2108

STOP NUT, 5/16 - 18

F1832

STOP NUT, 1/4 - 20

F85279-2

GASKET, CYLINDER EXHAUST UPPER

F1869

HEX CAP SCREW, 3/8 - 16 X 1 1/4

Стопорная шайба

Подшипник

SPACER PLATE W/PLUG

Заглушка

Прокладка головки блока цилиндров

F1107

SLOTTED FILL HD CAP SCREW, 1/4 - 20 X 3/4

97180

SPARK PLUG (CHAMPION L20V) - USA

C523227

SPARK PLUG (CHAMPION QL-76V) - CANADA

F1049

HEX CAP SCREW, 5/16 - 18 X 2 5/8

PLAIN WASHER

Головка цилиндра

Прокладка

Термостат

GROMMET (THERMOSTAT)

Крышка термостата

DECAL, WIRING - USA

DECAL WIRING - CANADA

F1916

HEX BOLT, 1/4 - 20 X 1 1/8

F372152-1

EXHAUST PORT COVER

F372154-1

GASKET, EXHAUST PORT PLATE

F372151-1

EXHAUST PORT PLATE

F1950

HEX CAP SCREW, 10 - 24 X 5/8

F438066

BY-PASS VALVE COVER

F85762

BY-PASS VALVE COVER GASKET

BY-PASS VALVE SPRING

BY-PASS VALVE

HEX NUT, 8 - 32

Стопорная шайба

THERMOSWITCH

HEX CAP SCREW, 5/16 - 18 X 3/4

100

F8096

SPRING LOCKWASHER

101

F184122-1

SEAL, PARTING LINE

102

F2015

HEX NUT, 1/4 - 28

103

F1475

FILL HD SCREW, 10 - 24 X 1/2

104

F480107-1

CAM STARTER INTERLOCK

105

F2089

SLOTTED PAN HD M. SCREW, 10 - 24 X 5/16

106

F2042

PLAIN WASHER

107

F1533

HEX CAP SCREW, 1/4 - 20 X 7/8

108

F528995

Крышка головки цилиндра

109

F8095

PLAIN WASHER

110

F8038

PLAIN WASHER

111

FG1019

Комплет прокладок

F40223

GASKET, TRANSFER PORT COVER

F84472-5

GASKET, CYLINDER DRAIN COVER

F84748-3

GASKET, CYLINDER DRAIN REED PLATE

F85279-2

GASKET, CYLINDER EXHAUST, UPPER

F85762

GASKET, BY-PASS VALVE

F85906

GASKET, CARBURETOR

F178168-1

GASKET, CARBURETOR ADAPTER

F184122-1

PARTING LINE SEAL

F372154-1

GASKET, EXHAUST PORT PLATE

F406406

GASKET, DEFLECTOR PLATE

F476067

GASKET, THERMOSTAT COVER

F476529-1

Прокладка
