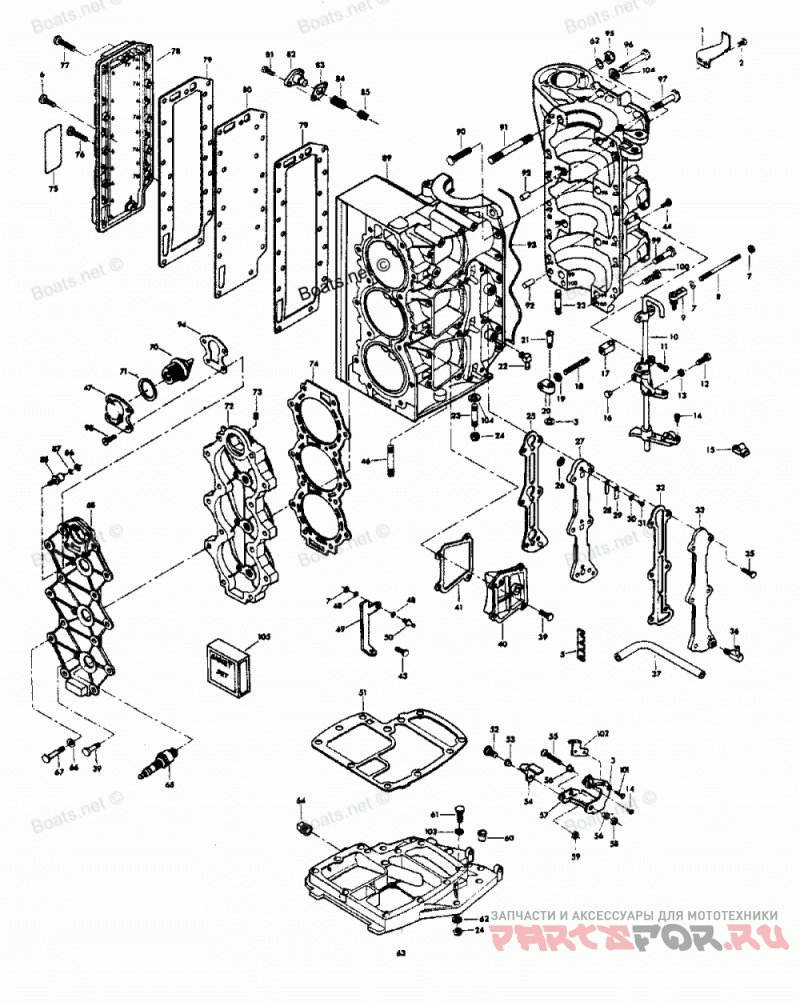

Powerhead

Force H0858B80C

Force
#oem кодцена
1
FA480894
TIMING POINTER
2
F1760
PAN HD SCREW, 10 - 24 X 3/8
3
F2042
PLAIN WASHER
5
F523834
CLIP, SPARK PLUG WIRE
6
F1533
HEX BOLT, 1/4 - 20 X 7/8
7
F1513
HEX NUT, 10 - 32
8
F85502
THROTTLE LINK
9
8177471
BALL JOINT W/STUD
10
FA85838-5
TOWERSHAFT W/BEARINGS, SWIVEL, ARMS AND SCREW
11
F1475
FILL HD SCREW, 10 - 24 X 1/2
12
F1504
FILL HD SCREW, 1/4 - 20 X 1 1/4
13
F1341
HEX NUT, 1/4 - 20
14
F1556
FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/8
15
FK405020
SWIVEL W/PIVOT SCREW AND NUT
16
F1727
PLASTIC RIVET
17
F85036
TOWERSHAFT CONTROL ROD END
18
F85445
DISTRIBUTOR CONTROL ROD
19
F2015
HEX NUT, 1/4 - 28
20
F85035
DISTRIBUTOR CONTROL ROD END
21
F85026
SWIVEL
22
F84314-2
Колено
23
F85859
STUD, FORWARD
24
F7004
STOP NUT, 3/18 - 16
25
F85748-2
GASKET, CYLINDER DRAIN REED PLATE
26
F93811
Водозаборная решетка
27
F2A404757
CYLINDER DRAIN REED PLATE W/REEDS, STOPS, METERG CUP & SCRWS
28
F18160-2
REED
29
F93920
REED STOP
30
F8003
PLAIN WASHER
31
F1286
PAN HD SCREW, 4 - 40 X 3/16
32
F85472-2
GASKET, CYLINDER DRAIN COVER
33
817787A1
CYLINDER DRAIN COVER W/PLUG
35
F1532
HEX HD SCREW, 1/4 - 20 X 1
36
F404801
Фитинг
37
F433253
Шланг
39
F1540
HEX HD SCREW, 1/4 - 20 X 5/8
40
FA411222
TRANSFER PORT COVER W/PLUG
41
F40223
GASKET, TRANSFER PORT COVER
42
F1534
HEX CAP SCREW, 1/4 - 20 X 7/8
43
F1532
HEX HD SCREW, 1/4 - 20 X 3/4
44
F1199
HEX CAP SCREW, 1/4 - 20 X 1
46
F85211
STUD, REAR
47
F476066-1
Крышка термостата
48
F8058
INTERNAL TOOTH LOCKWASHER
49
858721
Крепление
50
F98273
ROD END CONNECTOR STUD
51
F85279-2
CYLINDER EXHAUST GASKET, UPPER
52
F369887
Винт
53
F369610
Подшипник
54
F369977-1
INTERLOCK
55
F1885
HEX BOLT, 5/16 - 18 X 4 1/4
56
F85610
Подшипник
57
FA480876
GEAR SHIFT ARM W/SWIVEL, INTERLOCK ARM AND BEARINGS
58
F2108
STOP NUT, 5/16 - 18
59
F1832
STOP NUT, 1/4 - 20
60
F40689-1
BEARING, TOWERSHAFT
61
F1869
HEX BOLT, 3/8 - 16 X 1 1/4
62
F8095
PLAIN WASHER
63
817788A3
SPACER PLATE W/PLUGS
64
F2090
Заглушка
65
97180
SPARK PLUG (CHAMPION L-20-V) USA
-
FC522227
SPARK PLUG (CHAMPION QUL-77V) FOR MODEL T850B9A
66
F1087
PLAIN WASHER
67
F1883
HEX BOLT, 5/16 - 18 X 2 3/8
68
F499995
CYLINDER HEAD COVER
70
F528068
Термостат
71
F84504
Уплотнитель резиновый
72
F480518
Головка цилиндра
73
F19109
Заглушка
74
F369529-1
Прокладка головки блока цилиндров
75
F438398
DECAL, WIRING - USA
-
FC438398
DECAL, WIRING - CANADA
76
F1709
HEX HD SCREW, 1/4 - 20 X 1 1/8
77
F1708
HEX HD SCREW, 1/4 - 20 X 1 3/8
78
F85152-4
EXHAUST PORT COVER
79
F85154-1
GASKET, EXHAUST PORT PLATE
80
F85151-1
EXHAUST PORT PLATE
81
F1950
HEX HD SCREW, 10 - 24 X 5/8
82
F438066
BY-PASS VALVE COVER
83
F85762
GASKET, BY-PASS VALVE
84
F404268
SPRING, BY-PASS VALVE
85
F85916-1
BY-PASS VALVE
86
F1647
HEX NUT, 10 - 32
87
F8056
SPRING LOCKWASHER
88
817778A1
THERMOSWITCH
89
817823A7
CYLINDER W/CRANKCSE COVR, PARTG LINE SEAL, SCRWS & DOWL PINS
-
817901A9
SHORT BLOCK (NOT SHOWN).
90
F1535
HEX HD SCREW, 1/4 - 20 X 3/4
91
F85210
Шпилька
92
F8563
Палец
93
F85122
PARTING LINE SEAL
94
F476067
GASKET, THERMOSTAT COVER
95
F1347
HEX NUT, 3/8 - 16
96
F1873
HEX BOLT, 3/8 - 16 X 3
97
F1009
HEX BOLT, 3/8 - 16 X 2 3/4
98
F1110
FILL HD SCREW, 1/4 - 20 X 5/8
99
F1872
HEX BOLT, 3/8 - 16 X 1 3/4
100
F1099
FILL HD SCREW, 1/4 - 20 X 1 1/4
101
F2089
SLOTTED PAN HD MACHINE SCREW, 10 - 24 X 5/16
102
F480107-1
CAM, STARTER INTERLOCK
103
F1703
SPRING LOCKWASHER
104
F8038
PLAIN WASHER
105
FG1020
Комплет прокладок
-
F40223
TRANSFER PORT COER GASKET
-
F84278
CRANKSHAFT BRG. SEAL CAGE SEAL
-
F84504
THERMOSTAT GROMMET
-
F85122
CRANKCASE SEAL
-
F85154-1
EXHAUST PORT PLATE GASKET
-
F85159
MANIFOLD GASKET
-
F85168
CARBURETOR ADAPTER FLANGE GASKET
-
F85279-2
CYLINDER, EXHAUST - UPPER GASKET
-
F85472-2
CYLINDER DRAIN COVER GASKET
-
F85748-2
CYLINDER DRAIN REED PLATE GASKET
-
F85762
BY-PASS VALVE GASKET
-
F85906
CARBURETOR GASKET
-
F369529-1
Прокладка головки блока цилиндров
-
F476067
THERMOSTAT COVER GASKET
-
F481836
INTAKE GASKET
