Power Head для лодочных моторов Force H0850H80A (1980)

Москва и регионы России

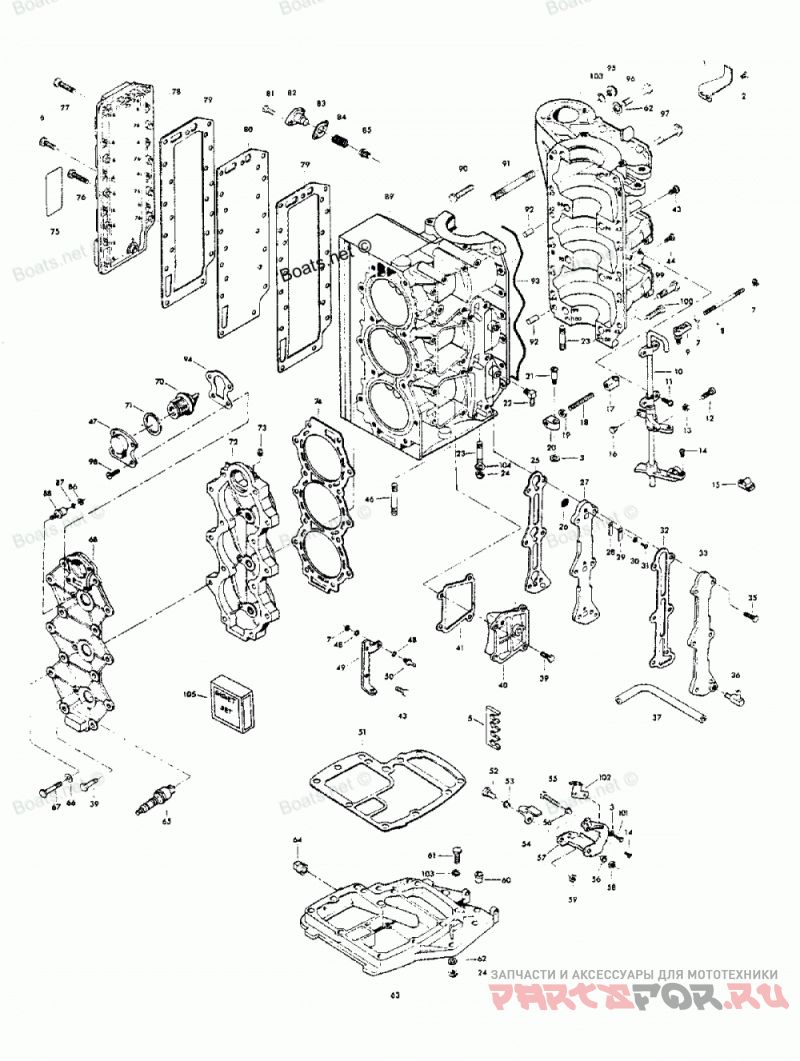

Power Head

Force H0850H80A

Power Head

#

oem код

название

цена

1

TIMING POINTER

TIMING POINTER

2

PLAIN WASHER

PLAIN WASHER

3

PLAIN WASHER

PLAIN WASHER

5

CLIP, SPARK PLUG WIRE

CLIP, SPARK PLUG WIRE

6

HEX BOLT, 1/4 - 20 X 7/8

HEX BOLT, 1/4 - 20 X 7/8

7

HEX NUT, 10 - 32

HEX NUT, 10 - 32

8

THROTTLE LINK

THROTTLE LINK

9

BALL JOINT W/STUD

BALL JOINT W/STUD

10

TOWERSHAFT W/BEARINGS, SWIVEL, ARMS AND SCREW

TOWERSHAFT W/BEARINGS, SWIVEL, ARMS AND SCREW

11

FILL HD SCREW, 10 - 24 X 1/2

FILL HD SCREW, 10 - 24 X 1/2

12

FILL HD SCREW, 1/4 - 20 X 1/4

FILL HD SCREW, 1/4 - 20 X 1/4

13

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

14

FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/8

FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/8

15

SWIVEL W/PIVOT SCREW AND NUT

SWIVEL W/PIVOT SCREW AND NUT

16

PLASTIC RIVET

PLASTIC RIVET

17

TOWERSHAFT CONTROL ROD END

TOWERSHAFT CONTROL ROD END

18

DISTRIBUTOR CONTROL ROD

DISTRIBUTOR CONTROL ROD

19

HEX NUT, 1/4 - 28

HEX NUT, 1/4 - 28

20

DISTRIBUTOR CONTROL ROD END

DISTRIBUTOR CONTROL ROD END

21

SWIVEL

SWIVEL

22

Колено

Колено

23

STUD, FORWARD

STUD, FORWARD

24

STOP NUT, 3/18 - 16

STOP NUT, 3/18 - 16

25

GASKET, CYLINDER DRAIN REED PLATE

GASKET, CYLINDER DRAIN REED PLATE

26

Водозаборная решетка

Водозаборная решетка

27

CYLINDER DRAIN REED PLATE

CYLINDER DRAIN REED PLATE

28

REED

REED

29

REED STOP

REED STOP

30

PLAIN WASHER

PLAIN WASHER

31

PAN HD SCREW, 4 - 40 X 3/16

PAN HD SCREW, 4 - 40 X 3/16

32

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

33

CYLINDER DRAIN COVER

CYLINDER DRAIN COVER

35

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

36

Фитинг

Фитинг

37

Шланг

Шланг

39

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

40

TRANSFER PORT COVER W/PLUG

TRANSFER PORT COVER W/PLUG

41

GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

42

HEX CAP SCREW, 1/4 - 20 X 7/8

HEX CAP SCREW, 1/4 - 20 X 7/8

43

HEX HD SCREW, 1/4 - 20 X 3/4

HEX HD SCREW, 1/4 - 20 X 3/4

44

HEX CAP SCREW, 1/4 - 20 X 1

HEX CAP SCREW, 1/4 - 20 X 1

46

STUD, REAR

STUD, REAR

47

Крышка термостата

Крышка термостата

48

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

49

Крепление

Крепление

50

ROD END CONNECTOR STUD

ROD END CONNECTOR STUD

51

CYLINDER EXHAUST GASKET, UPPER

CYLINDER EXHAUST GASKET, UPPER

52

Винт

Винт

53

Подшипник

Подшипник

54

INTERLOCK ARM

INTERLOCK ARM

55

HEX BOLT, 5/16 - 18 X 4 1/4

HEX BOLT, 5/16 - 18 X 4 1/4

56

Подшипник

Подшипник

57

GEAR SHIFT ARM W/SWIVEL, INTERLOCK ARM AND BEARINGS

GEAR SHIFT ARM W/SWIVEL, INTERLOCK ARM AND BEARINGS

58

STOP NUT, 5/16 - 18

STOP NUT, 5/16 - 18

59

STOP NUT, 1/4 - 20

STOP NUT, 1/4 - 20

60

BEARING, TOWERSHAFT

BEARING, TOWERSHAFT

61

HEX BOLT, 3/8 - 16 X 1/4

HEX BOLT, 3/8 - 16 X 1/4

62

PLAIN WASHER

PLAIN WASHER

63

SPACER PLATE W/PLUGS

SPACER PLATE W/PLUGS

64

Заглушка

Заглушка

65

SPARK PLUG (CHAMPION L-20V)

SPARK PLUG (CHAMPION L-20V)

66

PLAIN WASHER

PLAIN WASHER

67

HEX BOLT, 5/16 - 18 X 2 3/8

HEX BOLT, 5/16 - 18 X 2 3/8

68

CYLINDER HEAD COVER

CYLINDER HEAD COVER

70

Термостат

Термостат

71

Уплотнитель резиновый

Уплотнитель резиновый

72

Головка цилиндра

Головка цилиндра

73

Заглушка

Заглушка

74

Прокладка головки блока цилиндров

Прокладка головки блока цилиндров

75

DECAL, WIRING

DECAL, WIRING

76

HEX HD SCREW, 1/4 - 20 X 1/8

HEX HD SCREW, 1/4 - 20 X 1/8

77

HEX HD SCREW, 1/4 - 20 X 1 3/8

HEX HD SCREW, 1/4 - 20 X 1 3/8

78

EXHAUST PORT COVER

EXHAUST PORT COVER

79

GASKET, EXHAUST PORT PLATE

GASKET, EXHAUST PORT PLATE

80

EXHAUST PORT PLATE

EXHAUST PORT PLATE

81

HEX HD SCREW, 10 - 24 X 5/8

HEX HD SCREW, 10 - 24 X 5/8

82

BY-PASS VALVE COVER

BY-PASS VALVE COVER

83

GASKET, BY-PASS VALVE

GASKET, BY-PASS VALVE

84

SPRING, BY-PASS VALVE

SPRING, BY-PASS VALVE

85

BY-PASS VALVE

BY-PASS VALVE

86

HEX NUT, 10 - 32

HEX NUT, 10 - 32

87

SPRING LOCKWASHER

SPRING LOCKWASHER

88

THERMOSWITCH

THERMOSWITCH

89

Цилиндр

Цилиндр

-

SHORT BLOCK (NOT SHOWN).

SHORT BLOCK (NOT SHOWN).

90

HEX HD SCREW, 1/4 - 20 X 3/4

HEX HD SCREW, 1/4 - 20 X 3/4

91

Шпилька

Шпилька

92

Палец

Палец

93

PARTING LINE SEAL

PARTING LINE SEAL

94

GASKET, THERMOSTAT COVER

GASKET, THERMOSTAT COVER

95

HEX NUT, 3/8 - 16

HEX NUT, 3/8 - 16

96

HEX BOLT, 3/8 - 16 X 3

HEX BOLT, 3/8 - 16 X 3

97

HEX BOLT, 3/8 - 16 X 2 3/4

HEX BOLT, 3/8 - 16 X 2 3/4

98

FILL HD SCREW, 1/4 - 20 X 5/8

FILL HD SCREW, 1/4 - 20 X 5/8

99

HEX BOLT, 3/8 - 16 X 1 3/4

HEX BOLT, 3/8 - 16 X 1 3/4

100

FILL HD SCREW, 1/4 - 20 X 1/4

FILL HD SCREW, 1/4 - 20 X 1/4

101

SLOTTED PAN HD MACHINE SCREW, 10 - 24 X 5/16

SLOTTED PAN HD MACHINE SCREW, 10 - 24 X 5/16

102

CAM, STARTER INTERLOCK

CAM, STARTER INTERLOCK

103

SPRING LOCKWASHER

SPRING LOCKWASHER

104

PLAIN WASHER

PLAIN WASHER

105

Комплет прокладок

Комплет прокладок

-

TRANSFER PORT COVER GASKET

TRANSFER PORT COVER GASKET

-

CRANKSHAFT BRG. SEAL CAGE SEAL

CRANKSHAFT BRG. SEAL CAGE SEAL

-

THERMOSTAT GROMMET

THERMOSTAT GROMMET

-

CRANKCASE SEAL

CRANKCASE SEAL

-

EXHAUST PORT PLATE GASKET

EXHAUST PORT PLATE GASKET

-

MANIFOLD GASKET

MANIFOLD GASKET

-

CARBURETOR ADAPTER FLANGE GASKET

CARBURETOR ADAPTER FLANGE GASKET

-

CYLINDER, EXHAUST - UPPER GASKET

CYLINDER, EXHAUST - UPPER GASKET

-

CYLINDER DRAIN COVER GASKET

CYLINDER DRAIN COVER GASKET

-

CYLINDER DRAIN REED PLATE GASKET

CYLINDER DRAIN REED PLATE GASKET

-

BY-PASS VALVE GASKET

BY-PASS VALVE GASKET

-

CARBURETOR GASKET

CARBURETOR GASKET

-

Прокладка головки блока цилиндров

Прокладка головки блока цилиндров

-

THERMOSTAT COVER GASKET

THERMOSTAT COVER GASKET

-

INTAKE GASKET

INTAKE GASKET
