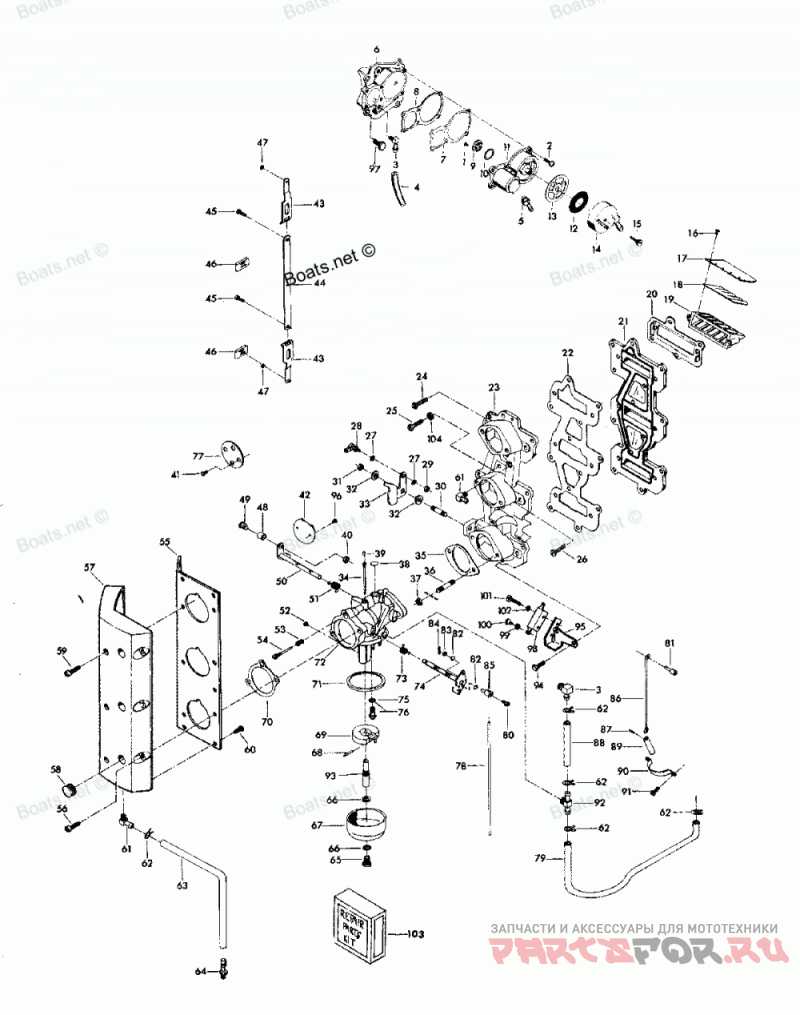

Карбюратор для лодочных моторов Force H0756H80F (1980)

Москва и регионы России

Карбюратор

Force H0756H80F

Карбюратор

#

oem код

название

цена

1

SLOTTED BINDING HD SCREW, 6 - 32 X 1/4

SLOTTED BINDING HD SCREW, 6 - 32 X 1/4

2

FILL HD SCREW W/LOCKWASHER, 1/4 - 20 X 3/4

FILL HD SCREW W/LOCKWASHER, 1/4 - 20 X 3/4

3

Колено

Колено

4

FUEL PUMP AIR HOSE, TOP

FUEL PUMP AIR HOSE, TOP

5

Фитинг

Фитинг

6

FUEL PUMP COVER W/PLUG

FUEL PUMP COVER W/PLUG

7

FUEL PUMP DIAPHRAGM

FUEL PUMP DIAPHRAGM

8

FUEL PUMP GASKET

FUEL PUMP GASKET

9

FUEL PUMP VALVE

FUEL PUMP VALVE

10

GASKET, FUEL PUMP VALVE

GASKET, FUEL PUMP VALVE

11

FUEL PUMP BODY W/VALVES

FUEL PUMP BODY W/VALVES

12

FUEL SEDIMENT BOWL SCREEN

FUEL SEDIMENT BOWL SCREEN

13

FUEL SEDIMENT BOWL GASKET

FUEL SEDIMENT BOWL GASKET

14

FUEL SEDIMENT BOWL

FUEL SEDIMENT BOWL

15

SCREW, FUEL PUMP BOWL

SCREW, FUEL PUMP BOWL

16

RD HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

RD HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

17

REED STOP

REED STOP

18

REED (5 PETAL)

REED (5 PETAL)

19

REED PLATE W/REEDS, REED STOP AND SCREW

REED PLATE W/REEDS, REED STOP AND SCREW

20

GASKET REED PLATE ADAPTER

GASKET REED PLATE ADAPTER

21

REED PLATE ADAPTER

REED PLATE ADAPTER

22

GASKET, INTAKE MANIFOLD

GASKET, INTAKE MANIFOLD

23

INTAKE MANIFOLD W/PLUG

INTAKE MANIFOLD W/PLUG

24

HEX HD SCREW, 1/4 - 20 X 7/8

HEX HD SCREW, 1/4 - 20 X 7/8

25

HEX HD SCREW, 1/4 - 20 X 1 1/8

HEX HD SCREW, 1/4 - 20 X 1 1/8

26

HEX HD SCREW, 1/4 - 20 X 1 1/2

HEX HD SCREW, 1/4 - 20 X 1 1/2

27

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

28

BALL JOINT W/STUD

BALL JOINT W/STUD

29

HEX NUT, 10 - 32

HEX NUT, 10 - 32

30

Шпилька

Шпилька

31

STOP NUT, 1/4 - 20

STOP NUT, 1/4 - 20

32

Подшипник

Подшипник

33

THROTTLE CAM

THROTTLE CAM

34

IDLE TUBE

IDLE TUBE

35

CARBURETOR GASKET

CARBURETOR GASKET

36

CARBURETOR STUD

CARBURETOR STUD

37

HEX NUT, 5/16 - 18

HEX NUT, 5/16 - 18

38

BODY CHANNEL WELCH PLUG

BODY CHANNEL WELCH PLUG

39

BODY CHANNEL CUP PLUG

BODY CHANNEL CUP PLUG

40

STOP NUT, 8 - 32

STOP NUT, 8 - 32

41

SHUTTER SCREW W/LOCKWASHER

SHUTTER SCREW W/LOCKWASHER

42

THROTTLE SHUTTER

THROTTLE SHUTTER

43

TIE BAR END W/SWIVEL

TIE BAR END W/SWIVEL

44

THROTTLE TIE BAR W/SWIVEL

THROTTLE TIE BAR W/SWIVEL

45

FILL HD SCREW, S.S., 8 - 32 X 3/8

FILL HD SCREW, S.S., 8 - 32 X 3/8

46

TIE BAR RETAINER

TIE BAR RETAINER

47

Стопорное кольцо

Стопорное кольцо

48

THROTTLE ROLLER

THROTTLE ROLLER

49

THROTTLE ROLLER SHAFT

THROTTLE ROLLER SHAFT

50

THROTTLE SHAFT AND LEVER

THROTTLE SHAFT AND LEVER

51

THROTTLE SHAFT RETURN SPRING

THROTTLE SHAFT RETURN SPRING

52

MAIN FUEL JET (.066) STD. SEA LEVEL - 1500 FT.

MAIN FUEL JET (.066) STD. SEA LEVEL - 1500 FT.

-

MAIN FUEL JET (.064) OPT. 1500 FT. - 3000 FT.

MAIN FUEL JET (.064) OPT. 1500 FT. - 3000 FT.

-

MAIN FUEL JET (.062) OPT. 3000 FT. - 4500 FT.

MAIN FUEL JET (.062) OPT. 3000 FT. - 4500 FT.

-

MAIN FUEL JET (.060) OPT. 4500 FT. - 6000 FT.

MAIN FUEL JET (.060) OPT. 4500 FT. - 6000 FT.

-

MAIN FUEL JET (.058) OPT. 6000 FT. & UP.

MAIN FUEL JET (.058) OPT. 6000 FT. & UP.

53

IDLE SCREW SPRING

IDLE SCREW SPRING

54

IDLE SCREW

IDLE SCREW

55

CARBURETOR INTAKE ADAPTER

CARBURETOR INTAKE ADAPTER

56

FILL HD SCREW, 1/4 - 20 X 1 1/4

FILL HD SCREW, 1/4 - 20 X 1 1/4

57

CARBURETOR, INTAKE

CARBURETOR, INTAKE

58

Уплотнитель резиновый

Уплотнитель резиновый

59

FILL HD SCREW, 1/4 - 20 X 1 3/4

FILL HD SCREW, 1/4 - 20 X 1 3/4

60

PAN HD SCREW, 10 - 24 X 3/8

PAN HD SCREW, 10 - 24 X 3/8

61

Колено

Колено

62

Зажим

Зажим

63

HOSE INTAKE DRAIN

HOSE INTAKE DRAIN

64

DRAIN FITTING

DRAIN FITTING

65

FUEL BOWL RETAINING SCREW

FUEL BOWL RETAINING SCREW

66

GASKET, FUEL BOWL RETAINING SCREW

GASKET, FUEL BOWL RETAINING SCREW

67

FUEL BOWL

FUEL BOWL

68

FLOAT LEVER PIN

FLOAT LEVER PIN

69

Поплавок

Поплавок

70

INTAKE GASKET

INTAKE GASKET

71

FUEL BOWL GASKET

FUEL BOWL GASKET

72

CARBURETOR COMPLETE (WB26B)

CARBURETOR COMPLETE (WB26B)

73

CHOKE SHAFT RETURN SPRING

CHOKE SHAFT RETURN SPRING

74

CHOKE SHAFT AND LEVER

CHOKE SHAFT AND LEVER

75

INLET SEAT GASKET

INLET SEAT GASKET

76

INLET NEEDLE, SEAT AND GASKET

INLET NEEDLE, SEAT AND GASKET

77

CHOKE SHUTTER

CHOKE SHUTTER

78

CHOKE LINK

CHOKE LINK

79

Трубопровод

Трубопровод

80

FILL HD SCREW, S.S., 6 - 32 X 1/4

FILL HD SCREW, S.S., 6 - 32 X 1/4

81

CHOKE ROD SWIVEL

CHOKE ROD SWIVEL

82

SEAL, CHOKE ARM SWIVEL

SEAL, CHOKE ARM SWIVEL

83

PLAIN WASHER

PLAIN WASHER

84

Шплинт

Шплинт

85

CHOKE ARM SWIVEL

CHOKE ARM SWIVEL

86

CHOKE ROD

CHOKE ROD

87

CHOKE PIN

CHOKE PIN

88

Трубопровод

Трубопровод

89

CHOKE SOLENOID PLUNGER

CHOKE SOLENOID PLUNGER

90

Зажим

Зажим

91

HEX HD SCREW, 1/4 - 20 X 1/2

HEX HD SCREW, 1/4 - 20 X 1/2

92

FUEL FITTING

FUEL FITTING

93

MAIN NOZZLE

MAIN NOZZLE

94

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

95

BRACKET INTERLOCK SWITCH

BRACKET INTERLOCK SWITCH

96

THROTTLE SHUTTER SCREW AND LOCKWASHER

THROTTLE SHUTTER SCREW AND LOCKWASHER

97

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

98

INTERLOCK SWITCH

INTERLOCK SWITCH

99

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

100

RD HD SCREW, 6 - 32 X 1/4

RD HD SCREW, 6 - 32 X 1/4

101

FILL HD SCREW, 6 - 32 X 7/8

FILL HD SCREW, 6 - 32 X 7/8

102

PLAIN WASHER

PLAIN WASHER

-

GASKET SET (NOT SHOWN)

GASKET SET (NOT SHOWN)

103

REPAIR PARTS KIT

REPAIR PARTS KIT
