Engine Cover And Support Plate для лодочных моторов Force H0559H80N (1980)

Москва и регионы России

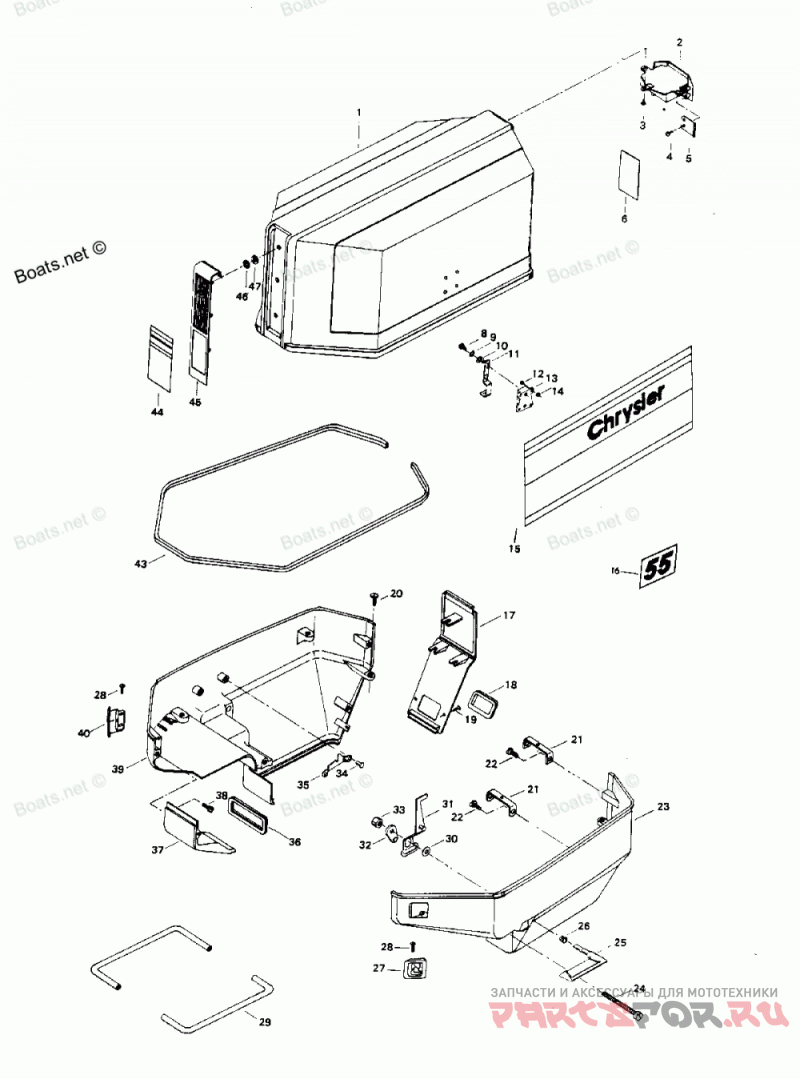

Engine Cover And Support Plate

Force H0559H80N

Engine Cover And Support Plate

#

oem код

название

цена

1

ENGINE COVER

ENGINE COVER

-

ENGINE COVER COMPLETE (559H0N).

ENGINE COVER COMPLETE (559H0N).

-

ENGINE COVER COMPLETE (559H1N, 559B1N).

ENGINE COVER COMPLETE (559H1N, 559B1N).

2

Ручка наклона

Ручка наклона

3

PAN HD SCREW, #10 X 5/8

PAN HD SCREW, #10 X 5/8

4

PAN HD SCREW, #10 - 7/16

PAN HD SCREW, #10 - 7/16

5

RETAINER, TILT HANDLE

RETAINER, TILT HANDLE

6

DECAL, REAR (559H0N)

DECAL, REAR (559H0N)

8

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

9

Стопорная шайба

Стопорная шайба

10

PLAIN WASHER

PLAIN WASHER

11

RETAINER, COVER LATCH

RETAINER, COVER LATCH

12

PAN HD SCREW, 10 - 24 X 1/2

PAN HD SCREW, 10 - 24 X 1/2

13

BRACKET, COVER LATCH

BRACKET, COVER LATCH

14

STOP NUT

STOP NUT

15

DECAL, PORT (559H0N)

DECAL, PORT (559H0N)

-

DECAL, STARBOARD (559H0N)

DECAL, STARBOARD (559H0N)

-

DECAL, PORT (559H1N, 559B1N)

DECAL, PORT (559H1N, 559B1N)

-

DECAL, STARBOARD (559H1N, 559B1N)

DECAL, STARBOARD (559H1N, 559B1N)

16

DECAL, NUMERAL (559H0N)

DECAL, NUMERAL (559H0N)

-

DECAL, NUMERAL (559H1N, 559B1N)

DECAL, NUMERAL (559H1N, 559B1N)

17

COVER, SUPPORT PLATE REAR

COVER, SUPPORT PLATE REAR

18

Уплотнитель резиновый

Уплотнитель резиновый

19

OVAL COUNTERSUNK HD M. SCREW 10 - 24 X 3/8

OVAL COUNTERSUNK HD M. SCREW 10 - 24 X 3/8

20

PAN HD SCREW W/PLAIN WASHER, 10 - 24 X 3/8

PAN HD SCREW W/PLAIN WASHER, 10 - 24 X 3/8

21

RETAINER, SUPPORT PLATE

RETAINER, SUPPORT PLATE

22

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

23

SUPPORT PLATE PORT W/LOWER PACKING

SUPPORT PLATE PORT W/LOWER PACKING

24

SLOTTED HD SCREW, S.S., 1/4 - 20 X 2 1/2

SLOTTED HD SCREW, S.S., 1/4 - 20 X 2 1/2

25

HANDLE, COVER LATCH PORT ASSY.

HANDLE, COVER LATCH PORT ASSY.

-

HANDLE, COVER LATCH STARBOARD ASSY.

HANDLE, COVER LATCH STARBOARD ASSY.

26

BEARING, LATCH SHAFT

BEARING, LATCH SHAFT

27

BUSHING, ELECTRIC CABLE ENTRY

BUSHING, ELECTRIC CABLE ENTRY

28

PAN HD SCREW, 10 - 24 X 9/16

PAN HD SCREW, 10 - 24 X 9/16

29

PACKING, SUPPORT PLATE LOWER

PACKING, SUPPORT PLATE LOWER

30

BEARING, LATCH CAM

BEARING, LATCH CAM

31

CAM, PORT LATCH ASSY.

CAM, PORT LATCH ASSY.

-

CAM, STARBOARD LATCH ASSY. (NOT SHOWN)

CAM, STARBOARD LATCH ASSY. (NOT SHOWN)

32

LEVER, COVER LATCH PORT

LEVER, COVER LATCH PORT

-

LEVER, COVER LATCH STARBOARD (NOT SHOWN)

LEVER, COVER LATCH STARBOARD (NOT SHOWN)

33

LOCKNUT, 3/8 - 16

LOCKNUT, 3/8 - 16

34

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

35

GUIDE, COVER LATCH STARBOARD

GUIDE, COVER LATCH STARBOARD

-

GUIDE, COVER LATCH PORT (NOT SHOWN)

GUIDE, COVER LATCH PORT (NOT SHOWN)

36

GROMMET (2 PER SET)

GROMMET (2 PER SET)

37

COVER, SUPPORT PLATE FRONT

COVER, SUPPORT PLATE FRONT

38

HEX SLOTTED HD M. SCREW, 1/4 - 20 X 5/8

HEX SLOTTED HD M. SCREW, 1/4 - 20 X 5/8

39

SUPPORT PLATE STARBOARD W/LOWER PACKING

SUPPORT PLATE STARBOARD W/LOWER PACKING

40

BUSHING, CABLE ENTRY

BUSHING, CABLE ENTRY

43

PACKING, SUPPORT PLATE FRONT

PACKING, SUPPORT PLATE FRONT

44

DECAL, FRONT (559H0N)

DECAL, FRONT (559H0N)

-

DECAL, FRONT (559H1N, 559B1N)

DECAL, FRONT (559H1N, 559B1N)

45

FRONT PLATE (559H0N)

FRONT PLATE (559H0N)

-

FRONT PLATE (559H1N, 559B1N)

FRONT PLATE (559H1N, 559B1N)

46

Уплотнение

Уплотнение

47

Застежка

Застежка

48

BLANKET, SILENCER, SIDE (NOT SHOWN)

BLANKET, SILENCER, SIDE (NOT SHOWN)

49

BLANKET, SILENCER, TOP (NOT SHOWN)

BLANKET, SILENCER, TOP (NOT SHOWN)

50

BLANKET, SILENCER, FRONT (NOT SHOWN)

BLANKET, SILENCER, FRONT (NOT SHOWN)
