Engine Cover And Support Plate для лодочных моторов Force H0559H80M (1980)

Москва и регионы России

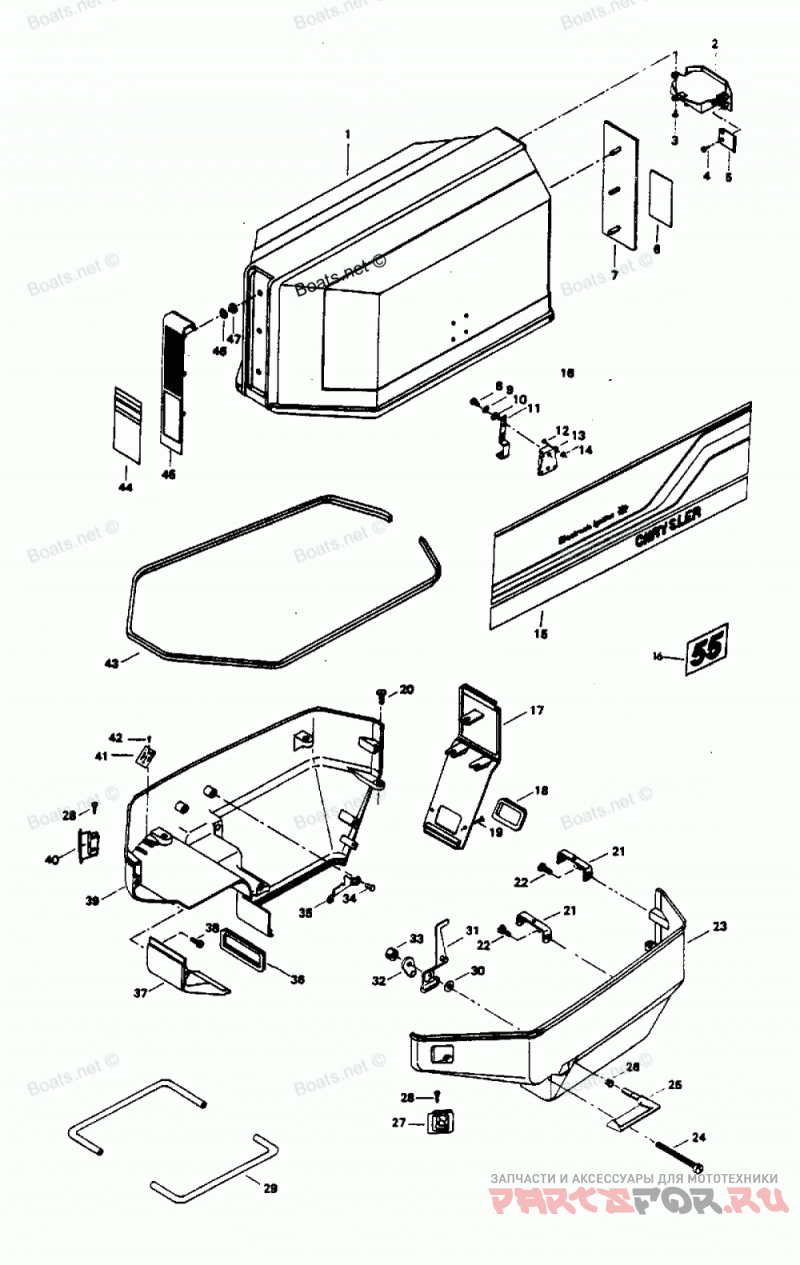

Engine Cover And Support Plate

Force H0559H80M

Engine Cover And Support Plate

#

oem код

название

цена

1

ENGINE COVER W/BRACKETS AND RETAINERS

ENGINE COVER W/BRACKETS AND RETAINERS

-

ENGINE COVER COMPLETE.

ENGINE COVER COMPLETE.

2

Ручка наклона

Ручка наклона

3

PAN HD SCREW, 10 X 5/8

PAN HD SCREW, 10 X 5/8

4

PAN HD SCREW, 10 - 7/6

PAN HD SCREW, 10 - 7/6

5

RETAINER, TILT HANDLE

RETAINER, TILT HANDLE

6

DECAL, REAR

DECAL, REAR

7

REAR TRIM

REAR TRIM

8

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

9

Стопорная шайба

Стопорная шайба

10

PLAIN WASHER

PLAIN WASHER

11

RETAINER, COVER LATCH

RETAINER, COVER LATCH

12

PAN HD SCREW, 10 - 24 X 1/2

PAN HD SCREW, 10 - 24 X 1/2

13

BRACKET, COVER LATCH W/SCREWS & NUTS

BRACKET, COVER LATCH W/SCREWS & NUTS

14

STOP NUT

STOP NUT

15

DECAL, PORT

DECAL, PORT

-

DECAL, STARBOARD

DECAL, STARBOARD

16

DECAL, NUMBER 55

DECAL, NUMBER 55

17

COVER, SUPPORT PLATE REAR

COVER, SUPPORT PLATE REAR

18

Уплотнитель резиновый

Уплотнитель резиновый

19

OVAL COUNTERSUNK HD M. SCREW 10 - 24 X 3/8

OVAL COUNTERSUNK HD M. SCREW 10 - 24 X 3/8

20

PAN HD SCREW W/PLAIN WASHER, 10 - 24 X 3/8

PAN HD SCREW W/PLAIN WASHER, 10 - 24 X 3/8

21

RETAINER, SUPPORT PLATE

RETAINER, SUPPORT PLATE

22

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

23

SUPPORT PLATE PORT W/LOWER PACKING

SUPPORT PLATE PORT W/LOWER PACKING

24

SLOTTED HD SCREW, S.S., 1/4 - 20 X 2 1/2

SLOTTED HD SCREW, S.S., 1/4 - 20 X 2 1/2

25

HANDLE, COVER LATCH PORT W/SHAFT & PIN

HANDLE, COVER LATCH PORT W/SHAFT & PIN

-

HANDLE, COVER LATCH STARBOARD W/SHAFT AND PIN (NOT SHOWN)

HANDLE, COVER LATCH STARBOARD W/SHAFT AND PIN (NOT SHOWN)

26

BEARING, LATCH SHAFT

BEARING, LATCH SHAFT

27

BUSHING, ELECTRIC CABLE ENTRY

BUSHING, ELECTRIC CABLE ENTRY

28

PAN HD SCREW, 10 - 24 X 9/16

PAN HD SCREW, 10 - 24 X 9/16

29

PACKING, SUPPORT PLATE LOWER

PACKING, SUPPORT PLATE LOWER

30

BEARING, LATCH CAM

BEARING, LATCH CAM

31

CAM, PORT LATCH W/PIN

CAM, PORT LATCH W/PIN

-

CAM, STARBOARD LATCH W/PIN (NOT SHOWN)

CAM, STARBOARD LATCH W/PIN (NOT SHOWN)

32

LEVER, COVER LATCH PORT

LEVER, COVER LATCH PORT

-

LEVER, COVER LATCH STARBOARD (NOT SHOWN)

LEVER, COVER LATCH STARBOARD (NOT SHOWN)

33

LOCKNUT, 3/8 - 16

LOCKNUT, 3/8 - 16

34

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

35

GUIDE, COVER LATCH STARBOARD

GUIDE, COVER LATCH STARBOARD

-

GUIDE, COVER LATCH PORT (NOT SHOWN)

GUIDE, COVER LATCH PORT (NOT SHOWN)

36

GROMMET (2 PER SET)

GROMMET (2 PER SET)

37

COVER, SUPPORT PLATE FRONT

COVER, SUPPORT PLATE FRONT

38

HEX SLOTTED HD M. SCREW, 1/4 - 20 X 5/8

HEX SLOTTED HD M. SCREW, 1/4 - 20 X 5/8

39

SUPPORT PLATE STARBOARD W/LOWER PACKING

SUPPORT PLATE STARBOARD W/LOWER PACKING

40

BUSHING, CABLE ENTRY

BUSHING, CABLE ENTRY

41

IDENT, PLATE W/SCREWS

IDENT, PLATE W/SCREWS

42

DRIVE SCREW, 2 X 3/16

DRIVE SCREW, 2 X 3/16

43

PACKING, SUPPORT PLATE FRONT

PACKING, SUPPORT PLATE FRONT

44

DECAL, FRONT

DECAL, FRONT

45

FRONT PLATE

FRONT PLATE

46

SEAL, MEDALLION

SEAL, MEDALLION

47

Застежка

Застежка

-

BLANKET, SILENCER, SIDE (NOT SHOWN)

BLANKET, SILENCER, SIDE (NOT SHOWN)

-

BLANKET, SILENCER, TOP (NOT SHOWN)

BLANKET, SILENCER, TOP (NOT SHOWN)

-

BLANKET, SILENCER, FRONT (NOT SHOWN)

BLANKET, SILENCER, FRONT (NOT SHOWN)
