Электрика для лодочных моторов Force H0559H80M (1980)

Москва и регионы России

Электрика

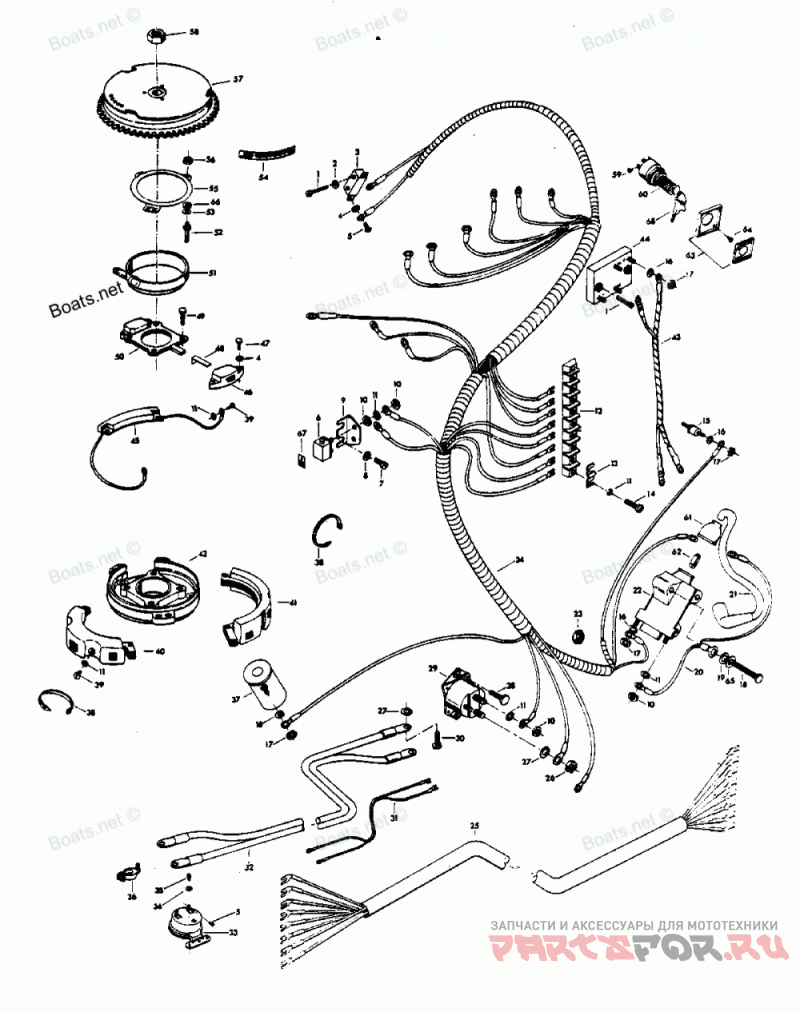

Force H0559H80M

Электрика

#

oem код

название

цена

1

SLOTTED FILL HD SCREW, 6 - 32 X 7/8

SLOTTED FILL HD SCREW, 6 - 32 X 7/8

2

PLAIN WASHER

PLAIN WASHER

3

NEUTRAL INTERLOCK SWITCH

NEUTRAL INTERLOCK SWITCH

4

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

5

RD HD SCREW, 6 - 32 X 1/4

RD HD SCREW, 6 - 32 X 1/4

6

CIRCUIT BREAKER

CIRCUIT BREAKER

7

SLOTTED PAN HD SCREW, 10 - 24 X 9/16

SLOTTED PAN HD SCREW, 10 - 24 X 9/16

8

PLAIN WASHER

PLAIN WASHER

9

CIRCUIT BREAKER BRACKET

CIRCUIT BREAKER BRACKET

10

HEX NUT, 10 -32

HEX NUT, 10 -32

11

Стопорная шайба

Стопорная шайба

12

TERMINAL BLOCK

TERMINAL BLOCK

13

CLIP, TERMINAL BLOCK GROUND

CLIP, TERMINAL BLOCK GROUND

14

PAN HD SCREW, 10 - 24 X 3/4

PAN HD SCREW, 10 - 24 X 3/4

15

THERMOSWITCH

THERMOSWITCH

16

SPRING LOCKWASHER

SPRING LOCKWASHER

17

HEX NUT, 8 - 32

HEX NUT, 8 - 32

18

HEX HD M. SCREW, 1/4 - 20 X 1 1/2

HEX HD M. SCREW, 1/4 - 20 X 1 1/2

19

PLAIN WASHER

PLAIN WASHER

20

GROUND WIRE, COIL

GROUND WIRE, COIL

21

HI-TENSION WIRE

HI-TENSION WIRE

22

Катушка зажигания

Катушка зажигания

23

Уплотнитель резиновый

Уплотнитель резиновый

24

WIRING HARNESS

WIRING HARNESS

25

ELECTRIC CONTROL CABLE, 18 FEET

ELECTRIC CONTROL CABLE, 18 FEET

26

HEX NUT, S.S., 5/16 - 18

HEX NUT, S.S., 5/16 - 18

27

SPRING LOCKWASHER

SPRING LOCKWASHER

28

HEX CAP SCREW, 1/4 - 20 X 3/4

HEX CAP SCREW, 1/4 - 20 X 3/4

29

Реле стартера

Реле стартера

30

HEX CAP SCREW, 5/16 - 18 X 5/8

HEX CAP SCREW, 5/16 - 18 X 5/8

31

Провод

Провод

32

BATTERY CABLE

BATTERY CABLE

33

BUZZER, HEAT INDICATOR, (ACCESSORY ITEM)

BUZZER, HEAT INDICATOR, (ACCESSORY ITEM)

34

PLAIN WASHER

PLAIN WASHER

35

PAN HD SCREW, 8 X 3/4

PAN HD SCREW, 8 X 3/4

36

BATTERY TERMINAL KIT (ACCESSORY ITEM)

BATTERY TERMINAL KIT (ACCESSORY ITEM)

37

CHOKE SOLENOID

CHOKE SOLENOID

38

TY-RAP, REGULATOR TO POWER PACK LEADS

TY-RAP, REGULATOR TO POWER PACK LEADS

39

SLOTTED PAN HD M. SCREW, 10 - 32 X 1/4

SLOTTED PAN HD M. SCREW, 10 - 32 X 1/4

40

ALTERNATOR STATOR

ALTERNATOR STATOR

41

MODULE

MODULE

42

BEARING CAGE W/CRANKSHAFT SEAL

BEARING CAGE W/CRANKSHAFT SEAL

43

STATOR HARNESS

STATOR HARNESS

44

Регулятор напряжения

Регулятор напряжения

45

CAPACITOR

CAPACITOR

46

TRIGGER COIL

TRIGGER COIL

47

SLOTTED FILL HD M. SCREW W/SPRING LOCKWASHER, 6 - 32 X 1/4

SLOTTED FILL HD M. SCREW W/SPRING LOCKWASHER, 6 - 32 X 1/4

48

Зажим

Зажим

49

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

50

Паук

Паук

51

TIMING RING

TIMING RING

52

STUD, TIMING RING RETAINER

STUD, TIMING RING RETAINER

53

BOWED WASHER

BOWED WASHER

54

TIMING DECAL

TIMING DECAL

-

DECAL, TIMING - CANADA

DECAL, TIMING - CANADA

55

RETAINER, TIMING RING

RETAINER, TIMING RING

56

STOP NUT, 10 - 22

STOP NUT, 10 - 22

57

Маховик

Маховик

58

HEX NUT, 3/4 - 16

HEX NUT, 3/4 - 16

59

SLOTTED PAN HD SCREW, 8 - 32 X 1/4

SLOTTED PAN HD SCREW, 8 - 32 X 1/4

60

SWITCH, IGNITION (ACCESSORY ITEM) LONG BARREL

SWITCH, IGNITION (ACCESSORY ITEM) LONG BARREL

61

BOOT, COIL

BOOT, COIL

62

Зажим

Зажим

63

IGNITION SWITCH MOUNTING KIT (ACCESSORY ITEM)

IGNITION SWITCH MOUNTING KIT (ACCESSORY ITEM)

-

IGNITION SWITCH PLATE - CANADA (NOT SHOWN)

IGNITION SWITCH PLATE - CANADA (NOT SHOWN)

64

FLAT HD SCREW, 6 X 1/2

FLAT HD SCREW, 6 X 1/2

65

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

66

PLAIN WASHER

PLAIN WASHER

67

DECAL, CIRCUIT BREAKER - USA

DECAL, CIRCUIT BREAKER - USA

-

DECAL, CIRCUIT BREAKER - CANADA

DECAL, CIRCUIT BREAKER - CANADA

68

KEY IGNITION - NO LETTER OR STAMPED A

KEY IGNITION - NO LETTER OR STAMPED A

-

KEY IGNITION - STAMPED B

KEY IGNITION - STAMPED B

-

KEY IGNITION - STAMPED C

KEY IGNITION - STAMPED C

-

KEY IGNITION - STAMPED D

KEY IGNITION - STAMPED D

-

KEY IGNITION - STAMPED E

KEY IGNITION - STAMPED E

-

EMERGENCY STARTER ROPE (NOT SHOWN)

EMERGENCY STARTER ROPE (NOT SHOWN)

-

DECAL, COMPLIANCE - CANADA (NOT SHOWN)

DECAL, COMPLIANCE - CANADA (NOT SHOWN)
