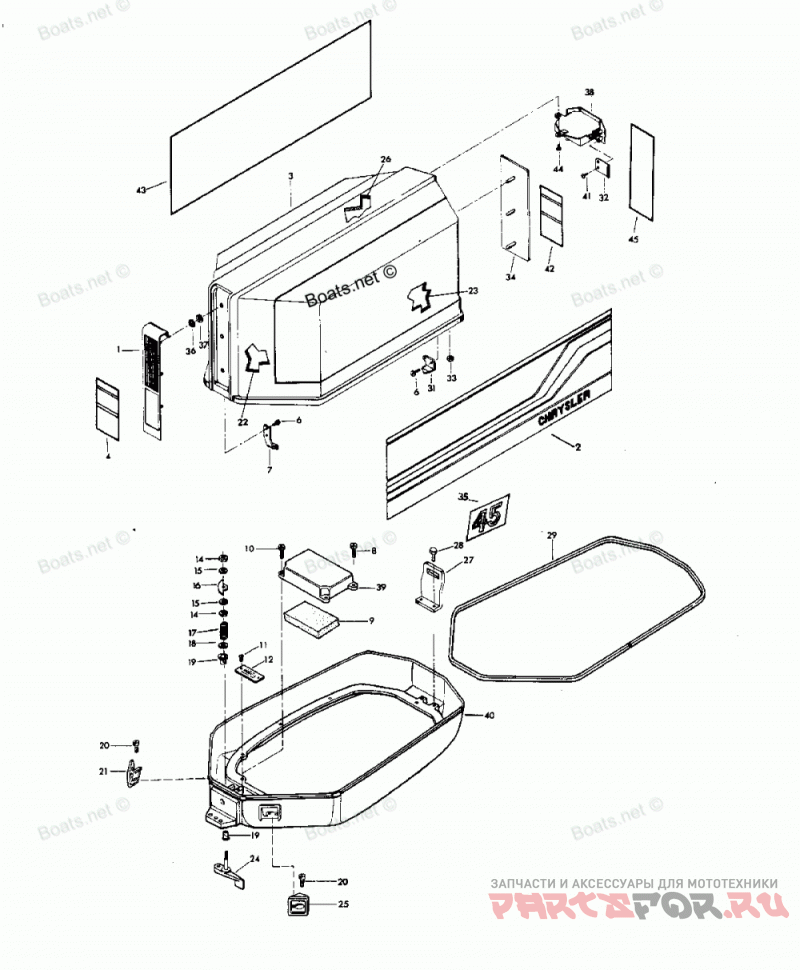

Engine Cover And Support Plate

Force H0457H80L

Force
#oem кодцена
1
F575711
PLATE, FRONT
2
FA575397
DECAL, ENGINE COVER - PORT
3
FS546712
ENGINE COVER, W/RETAINERS
-
2C575712
ENGINE COVER COMPLETE.
4
FA575892
DECAL, ENGINE COVER FRONT
6
F1475
FILL HD SCREW, 10 X 24 X 1/2
7
FA366778
ENGINE COVER RETAINER FORWARD W/SCREWS AND NUTS
8
F1535
HEX HD SCREW, 1/4 - 20 X 3/4
9
F307860
INTAKE SILENCER
10
F1532
HEX HD SCREW, 1/4 - 20 X 1
11
F1447
RD HD SCREW, 2 X 3/16
12
FA538395
IDENTIFICATION PLATE W/SCREWS - USA
14
F1515
HEX NUT, 5/16 - 18
15
F8096
SPRING LOCKWASHER
16
F89777-1
LATCH CAM
17
F183300
Пружина
18
F1987
PLAIN WASHER
19
F307818
BEARING, LATCH SHAFT
20
F1733
PAN HD SCREW, 10 - 24 X 9/16
21
F545189
BUSHING, CABLE ENTRY
22
F474992
BLANKET, SILENCER - FRONT
23
F465985
BLANKET, SILENCER - SIDE
24
FA328763
COVER LATCH HANDLE W/SHAFT
25
F549189
BUSHING ELECTRIC CABLE ENTRY
26
F311984-1
BLANKET, SILENCER - TOP
27
F458774
BRACKET RETAINER - REAR
28
F1535
HEX CAP SCREW, 1/4 - 20 X 3/4
29
F85756
SUPPORT PLATE PACKING
31
FA458480
ENGINE COVER RETAINER W/SCREWS AND NUTS
32
F463864
RETAINER, TILT HANDLE
33
F7011
HEX NUT, 10 - 24
34
F575180
TRIM, REAR
35
FA575386
DECAL, NUMERAL "45"
36
F85735-1
Уплотнение
37
F1753
Застежка
38
F463269-1
Ручка наклона
39
FA307779
BAFFLE, AIR INTAKE W/SILENCER
40
F307038
Опорная Плита
41
F2066
PAN HD SELF-TAPPING SCREW
42
FA575528
DECAL, ENGINE COVER - REAR
43
FA575396
DECAL, ENGINE COVER - STARBOARD
44
F2025
PAN HD SCREW, 10 X 5/8
45
FA486528
DECAL, TRIM REAR (FOR ENGINE COVERS WITHOUT REAR TRIM PLATE)
