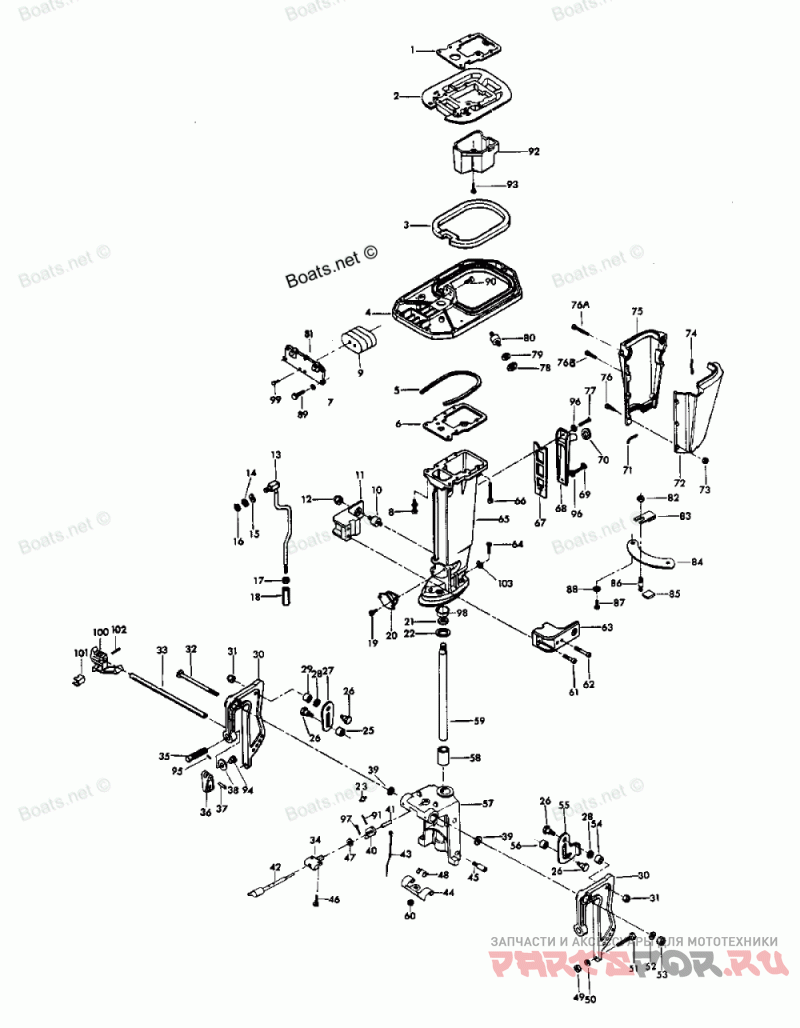

Motor Leg для лодочных моторов Force H0353H80M (1980)

Москва и регионы России

Motor Leg

Force H0353H80M

Motor Leg

#

oem код

название

цена

1

CYLINDER EXHAUST GASKET UPPER

CYLINDER EXHAUST GASKET UPPER

2

SPACER PLATE

SPACER PLATE

3

SEAL, KINGPIN PLATE

SEAL, KINGPIN PLATE

4

KINGPIN PLATE

KINGPIN PLATE

5

DAMPENING PAD

DAMPENING PAD

6

CYLINDER EXHAUST GASKET LOWER

CYLINDER EXHAUST GASKET LOWER

7

PLAIN WASHER

PLAIN WASHER

8

FLANGED 12 PT. SCREW, 5/16 - 18 X 2

FLANGED 12 PT. SCREW, 5/16 - 18 X 2

9

SHOCK MOUNT UPPER

SHOCK MOUNT UPPER

10

SHOCK MOUNT SIDE LOWER

SHOCK MOUNT SIDE LOWER

11

SHOCK MOUNT LOWER COVER, STARBOARD

SHOCK MOUNT LOWER COVER, STARBOARD

12

ACORN NUT

ACORN NUT

13

GEAR SHIFT ROD UPPER

GEAR SHIFT ROD UPPER

14

PLAIN WASHER

PLAIN WASHER

15

BOWED SPRING WASHER

BOWED SPRING WASHER

16

Стопорное кольцо

Стопорное кольцо

17

HEX NUT, S.S., 5/16 - 18

HEX NUT, S.S., 5/16 - 18

18

GEAR SHIFT ROD COUPLING

GEAR SHIFT ROD COUPLING

19

FILL HD SCREW, S.S., 5/16 - 18 X 1/2

FILL HD SCREW, S.S., 5/16 - 18 X 1/2

20

SHOCK MOUNT LOWER ASSY.

SHOCK MOUNT LOWER ASSY.

21

KINGPIN NUT

KINGPIN NUT

22

SWIVEL BRACKET WASHER

SWIVEL BRACKET WASHER

23

Масленка

Масленка

25

SPACER, TILT STOP

SPACER, TILT STOP

26

TILT STOP PIVOT

TILT STOP PIVOT

27

TILT STOP, STARBOARD

TILT STOP, STARBOARD

28

BOWED SPRING WASHER

BOWED SPRING WASHER

29

SPACER, TILT STOP

SPACER, TILT STOP

30

STERN BRACKET W/CLAMP SCREW AND FOOT

STERN BRACKET W/CLAMP SCREW AND FOOT

31

Гайка

Гайка

32

STERN BRACKET PIVOT BOLT

STERN BRACKET PIVOT BOLT

33

STERN BRACKET LOCK BAR W/HANDLE

STERN BRACKET LOCK BAR W/HANDLE

34

Подшипник

Подшипник

35

CLAMP SCREW

CLAMP SCREW

36

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

37

Пружинный Штифт

Пружинный Штифт

38

CLAMP SCREW FOOT

CLAMP SCREW FOOT

39

STERN BRACKET FRICTION WASHER

STERN BRACKET FRICTION WASHER

40

Рычаг

Рычаг

41

Подшипник

Подшипник

42

HANDLE AND SHAFT

HANDLE AND SHAFT

43

LINK

LINK

44

Замок

Замок

45

Штифт

Штифт

46

PAN HD SCREW, 10 - 24 X 9/16

PAN HD SCREW, 10 - 24 X 9/16

47

PLAIN WASHER

PLAIN WASHER

48

REVERSE LOCK SPRING

REVERSE LOCK SPRING

49

HEX NUT, S.S., 3/8 - 16

HEX NUT, S.S., 3/8 - 16

50

PLAIN WASHER

PLAIN WASHER

51

HEX HD SCREW, S.S., 3/8 - 16 X 3

HEX HD SCREW, S.S., 3/8 - 16 X 3

52

PLAIN WASHER

PLAIN WASHER

53

Гайка

Гайка

54

SPACER, TILT STOP

SPACER, TILT STOP

55

TILT STOP, PORT

TILT STOP, PORT

56

SPACER, TILT STOP

SPACER, TILT STOP

57

SWIVEL BRACKET W/BEARINGS AND GREASE FITTING

SWIVEL BRACKET W/BEARINGS AND GREASE FITTING

58

SWIVEL BRACKET BEARING

SWIVEL BRACKET BEARING

59

KINGPIN W/PLUG

KINGPIN W/PLUG

60

STOP NUT

STOP NUT

61

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 1 - 1/4

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 1 - 1/4

62

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 3 - 1/2

HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 3 - 1/2

63

SHOCK MOUNT LOWER COVER, PORT

SHOCK MOUNT LOWER COVER, PORT

64

HEX HD CAP SCREW, S.S., 3/8 - 16 X 1 -1/8

HEX HD CAP SCREW, S.S., 3/8 - 16 X 1 -1/8

65

MOTOR LEG, FOR LONG SHAFT MODELS

MOTOR LEG, FOR LONG SHAFT MODELS

66

HEX HD SCREW, 1/4 - 20 X 3 - 7/16

HEX HD SCREW, 1/4 - 20 X 3 - 7/16

67

MOTOR LEG EXHAUST COVER GASKET

MOTOR LEG EXHAUST COVER GASKET

68

MOTOR LEG EXHAUST COVER

MOTOR LEG EXHAUST COVER

69

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

70

GROMMET, MOTOR LEG

GROMMET, MOTOR LEG

71

PACKING LEG COVER LOWER

PACKING LEG COVER LOWER

72

LEG COVER (PORT), W/PACKING

LEG COVER (PORT), W/PACKING

73

HEX NUT, 10 - 24

HEX NUT, 10 - 24

74

PACKING LEG COVER UPPER

PACKING LEG COVER UPPER

75

LEG COVER (STARBOARD), W/PACKING

LEG COVER (STARBOARD), W/PACKING

76

FILL HD SCREW, 10 - 24 X 9/16

FILL HD SCREW, 10 - 24 X 9/16

76A

FILL HD SCREW, 10 - 24 X 3

FILL HD SCREW, 10 - 24 X 3

76B

FILL HD SCREW, 10 - 24 X 1 - 3/8

FILL HD SCREW, 10 - 24 X 1 - 3/8

77

FLAT HD SCREW, S.S., 1/4 - 20 X 1 -3/8

FLAT HD SCREW, S.S., 1/4 - 20 X 1 -3/8

78

HEX NUT, 3/8 - 16

HEX NUT, 3/8 - 16

79

PLAIN WASHER

PLAIN WASHER

80

SHOCK MOUNT, SIDE UPPER

SHOCK MOUNT, SIDE UPPER

81

SHOCK MOUNT UPPER COVER

SHOCK MOUNT UPPER COVER

82

HEX LOCK NUT, 1/4 - 20

HEX LOCK NUT, 1/4 - 20

83

FRICTION SHOE ADJUSTING ARM W/SHOE

FRICTION SHOE ADJUSTING ARM W/SHOE

84

FRICTION SHOE PLATE

FRICTION SHOE PLATE

85

FRICTION SHOE

FRICTION SHOE

86

Шпилька

Шпилька

87

HEX HD SCREW, 1/4 - 20 X 1/2

HEX HD SCREW, 1/4 - 20 X 1/2

88

Стопорная шайба

Стопорная шайба

89

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

90

FLAT HD SCREW, 1/4 - 28 X 5/8

FLAT HD SCREW, 1/4 - 28 X 5/8

91

Пружинный Штифт

Пружинный Штифт

92

TUBE LEG EXHAUST

TUBE LEG EXHAUST

93

FILL HD MACHINE SCREW W/LOCKWASHER, 10 - 24 X 1/2

FILL HD MACHINE SCREW W/LOCKWASHER, 10 - 24 X 1/2

94

Шпилька

Шпилька

95

Пружинный Штифт

Пружинный Штифт

96

SPRING LOCKWASHER

SPRING LOCKWASHER

97

Шплинт

Шплинт

98

Заглушка

Заглушка

99

HEX HD SCREW, W/LOCKWASHER, 1/4 - 28 X 5/8

HEX HD SCREW, W/LOCKWASHER, 1/4 - 28 X 5/8

100

HANDLE, LOCK BAR

HANDLE, LOCK BAR

101

SPRING LOCK BAR HANDLE

SPRING LOCK BAR HANDLE

102

Пружинный Штифт

Пружинный Штифт

103

SPRING LOCKWASHER

SPRING LOCKWASHER

104

DECAL, REVERSE LOCK - U.S.A.

DECAL, REVERSE LOCK - U.S.A.

-

DECAL, REVERSE LOCK - CANADA

DECAL, REVERSE LOCK - CANADA
