Gear Housing для лодочных моторов Force H0353H80M (1980)

Москва и регионы России

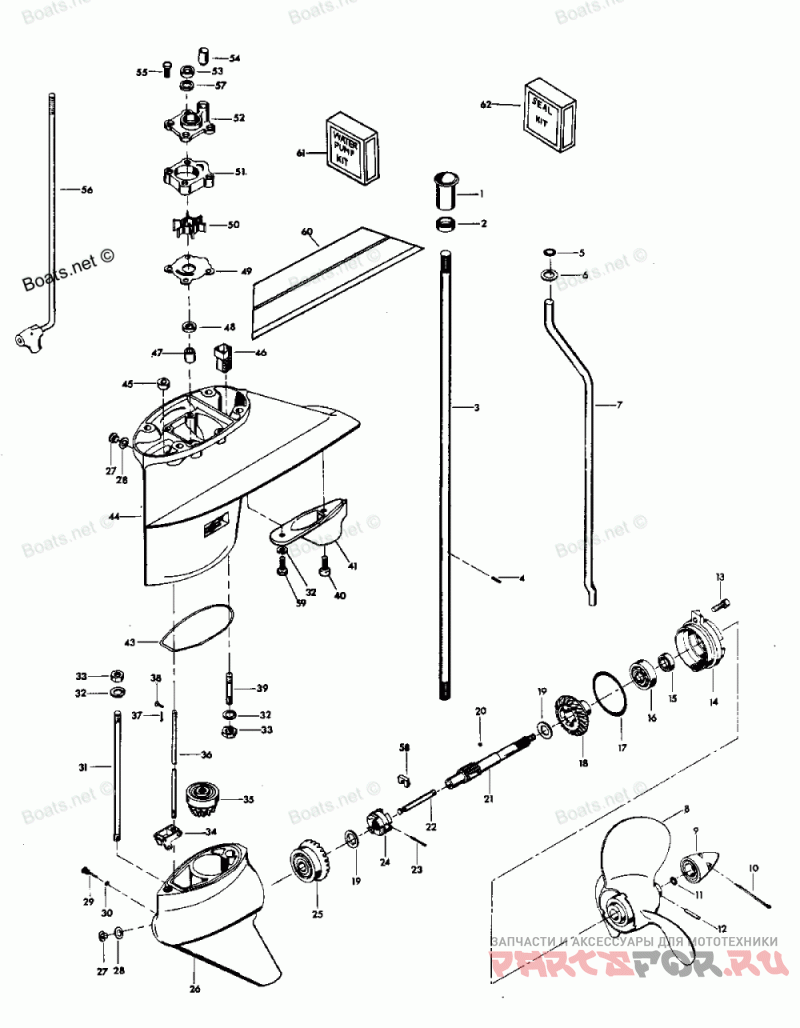

Gear Housing

Force H0353H80M

Gear Housing

#

oem код

название

цена

1

чехол

чехол

2

Седло

Седло

-

DRIVESHAFT W/RETAINER FOR LONG SHAFT MODELS

DRIVESHAFT W/RETAINER FOR LONG SHAFT MODELS

4

DRIVE PIN, WATER PUMP IMPELLER

DRIVE PIN, WATER PUMP IMPELLER

5

Уплотнение

Уплотнение

6

PLAIN WASHER

PLAIN WASHER

-

INLET WATER LINE FOR LONG SHAFT MODELS

INLET WATER LINE FOR LONG SHAFT MODELS

8

STANDARD PROP (ACCESSORY ITEM)

STANDARD PROP (ACCESSORY ITEM)

9

PROPELLER NUT W/SEAL AND COTTER PIN

PROPELLER NUT W/SEAL AND COTTER PIN

10

COTTER PIN, S.S., 1/8 - 1/2

COTTER PIN, S.S., 1/8 - 1/2

11

SEAL, PROPELLER NUT

SEAL, PROPELLER NUT

12

PROPELLER PIN, PACK OF 6 W/COTTER PIN

PROPELLER PIN, PACK OF 6 W/COTTER PIN

13

HEX SOCKET HD CAP SCREW, S.S., 5/16 - 1/8 X 9/16

HEX SOCKET HD CAP SCREW, S.S., 5/16 - 1/8 X 9/16

14

PROPELLER SHAFT BEARING CAGE W/SEAL

PROPELLER SHAFT BEARING CAGE W/SEAL

15

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT

16

BALL BEARING, PROPELLER SHAFT

BALL BEARING, PROPELLER SHAFT

17

SEAL, PROPELLER SHAFT BEARING CAGE

SEAL, PROPELLER SHAFT BEARING CAGE

18

BEVEL GEAR REAR W/BEARING

BEVEL GEAR REAR W/BEARING

19

THRUST WASHER, BEVEL GEAR

THRUST WASHER, BEVEL GEAR

20

BALL, PROPELLER SHAFT

BALL, PROPELLER SHAFT

21

PROPELLER SHAFT ASSY.

PROPELLER SHAFT ASSY.

22

GEAR SHIFT ARM PIN

GEAR SHIFT ARM PIN

23

Пружинный Штифт

Пружинный Штифт

24

Муфта сцепления

Муфта сцепления

25

BEVEL GEAR FRONT W/BEARING

BEVEL GEAR FRONT W/BEARING

26

GEAR HOUSING LOWER W/PLUG, WASHER AND THRUST BEARING CUP

GEAR HOUSING LOWER W/PLUG, WASHER AND THRUST BEARING CUP

-

GEAR HOUSING COMPLETE (NOT SHOWN)

GEAR HOUSING COMPLETE (NOT SHOWN)

27

PLUG, GEAR HOUSING

PLUG, GEAR HOUSING

28

WASHER, GEAR HOUSING PLUG

WASHER, GEAR HOUSING PLUG

29

GEAR SHIFT ARM PIN

GEAR SHIFT ARM PIN

30

SEAL, GEAR SHIFT ARM PIN

SEAL, GEAR SHIFT ARM PIN

31

STUD, LONG

STUD, LONG

32

Стопорная шайба

Стопорная шайба

33

HEX NUT, S.S., 3/8 - 16

HEX NUT, S.S., 3/8 - 16

34

GEAR SHIFT ARM ASSY.

GEAR SHIFT ARM ASSY.

36

GEAR SHIFT ROD LOWER

GEAR SHIFT ROD LOWER

37

Шплинт

Шплинт

38

PIN, GEAR SHIFT ROD LOWER

PIN, GEAR SHIFT ROD LOWER

39

STUD, SHORT

STUD, SHORT

40

HEX HD CAP SCREW, 5/16 - 18 X 1

HEX HD CAP SCREW, 5/16 - 18 X 1

41

SNOUT, EXHAUST

SNOUT, EXHAUST

43

SEAL, GEAR HOUSING

SEAL, GEAR HOUSING

44

GEAR HOUSING UPPER W/SEAL, WASHR, PLUG AND INLET WATR SCREEN

GEAR HOUSING UPPER W/SEAL, WASHR, PLUG AND INLET WATR SCREEN

45

SEAL, SHIFT ROD LOWER

SEAL, SHIFT ROD LOWER

46

SCREEN, WATER INLET

SCREEN, WATER INLET

47

BEARING, DRIVESHAFT UPPER

BEARING, DRIVESHAFT UPPER

48

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

49

WATER PUMP BACK PLATE

WATER PUMP BACK PLATE

50

WATER PUMP IMPELLER

WATER PUMP IMPELLER

51

WATER PUMP BODY

WATER PUMP BODY

52

Крышка водяной помпы

Крышка водяной помпы

53

DRIVESHAFT SEAL

DRIVESHAFT SEAL

54

SEAL, INLET WATER LINE, LOWER

SEAL, INLET WATER LINE, LOWER

55

HEX HD SCREW, 1/4 - 20 X 1 - 1/4

HEX HD SCREW, 1/4 - 20 X 1 - 1/4

56

GEAR SHIFT INTERMEDIATE

GEAR SHIFT INTERMEDIATE

57

DISC, WATER PUMP

DISC, WATER PUMP

58

Вилка карданного вала

Вилка карданного вала

59

RETAINER, SNOUT

RETAINER, SNOUT

60

DECAL, LEG - PORT
W/LITERATURE

DECAL, LEG - PORT
W/LITERATURE

-

DECAL, LEG - STARBOARD
W/LITERATURE

DECAL, LEG - STARBOARD
W/LITERATURE

61

Рем.комплект помпы

Рем.комплект помпы

62

GEAR HOUSING SEAL KIT

GEAR HOUSING SEAL KIT
