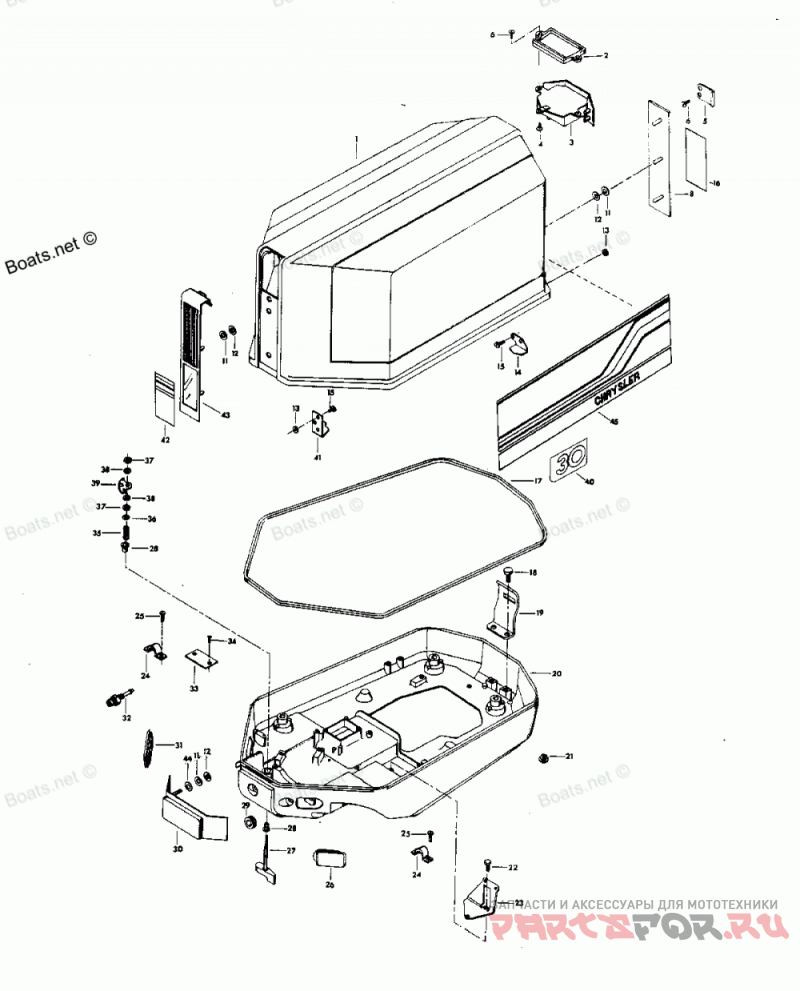

Engine Cover And Support Plate (alternator Models)

Force H0306B80C

Force
#oem кодцена
1
FS529712
ENGINE COVER, W/FRONT AND REAR RETAINERS
-
2C573712
ENGINE COVER COMPLETE.
2
F458245-1
BAFFLE TILT HANDLE
3
F542269
Ручка наклона
4
F2025
PAN HD SCREW, 10 X 5/8
5
F463864
RETAINER, TILT HANDLE
6
F2066
PAN HD SCREW, 10 X 7/16
8
F572180
TRIM, REAR
11
F85735-1
Уплотнение
12
F1753
Застежка
13
F7011
HEX NUT, 10 - 24
14
FA458480
RETAINER, ENGINE COVER REAR W/SCREWS AND NUTS
15
F1475
FILL HD SCREW, 10 - 24 X 1/2
16
FA572528
DECAL, ENGINE COVER REAR
17
F85756
PACKING, ENGINE COVER
18
F1540
HEX HD MACHINE SCREW, 1/4 - 20 X 5/8
19
F461774
BRACKET, RETAINER REAR
20
F458038-2
Опорная Плита
21
F1632
PLASTI-PLUG
22
F1545
HEX CAP SCREW, 1/4 - 20 X 1/2
23
F458371
BRACKET, REMOTE THROTTLE CABLE
24
F154317
CLAMP, REMOTE CABLE
25
F2107
SLOTTED FILL HD SCREW W/SPRING LOCKWASHER, 10 - 24 X 5/8
26
F462840
GROMMET, REMOTE THROTTLE CABLE
27
FA413469
COVER LATCH HANDLE W/SHAFT
28
F307818
BEARING, LATCH SHAFT
29
F53504
GROMMET, SUPPORT PLATE
30
F542163
COVER, SUPPORT PLATE
31
F462840
GROMMET, REMOTE SHIFT CABLE
32
F434767
BUSHING, FUEL LINE
33
FA538395
PLATE, IDENTIFICATION W/SCREWS
34
F1447
DRIVE SCREW
35
F183300
SPRING, LATCH SHAFT
36
F185764
Стопорное кольцо
37
F1515
HEX JAM NUT, 5/16 - 18
38
F8096
SPRING LOCKWASHER
39
F89777-1
CAM, ENGINE COVER LATCH
40
FA573386
DECAL, NUMERAL 30
41
FA458778
RETAINER, ENGINE COVER FRONT W/SCREWS AND NUTS
42
FA572892
DECAL, ENGINE COVER FRONT
43
FA573711
PLATE, FRONT
44
F8011
PLAIN WASHER
45
FA572397
DECAL, ENGINE COVER - PORT
-
FA572396
DECAL, ENGINE COVER - STARBOARD
