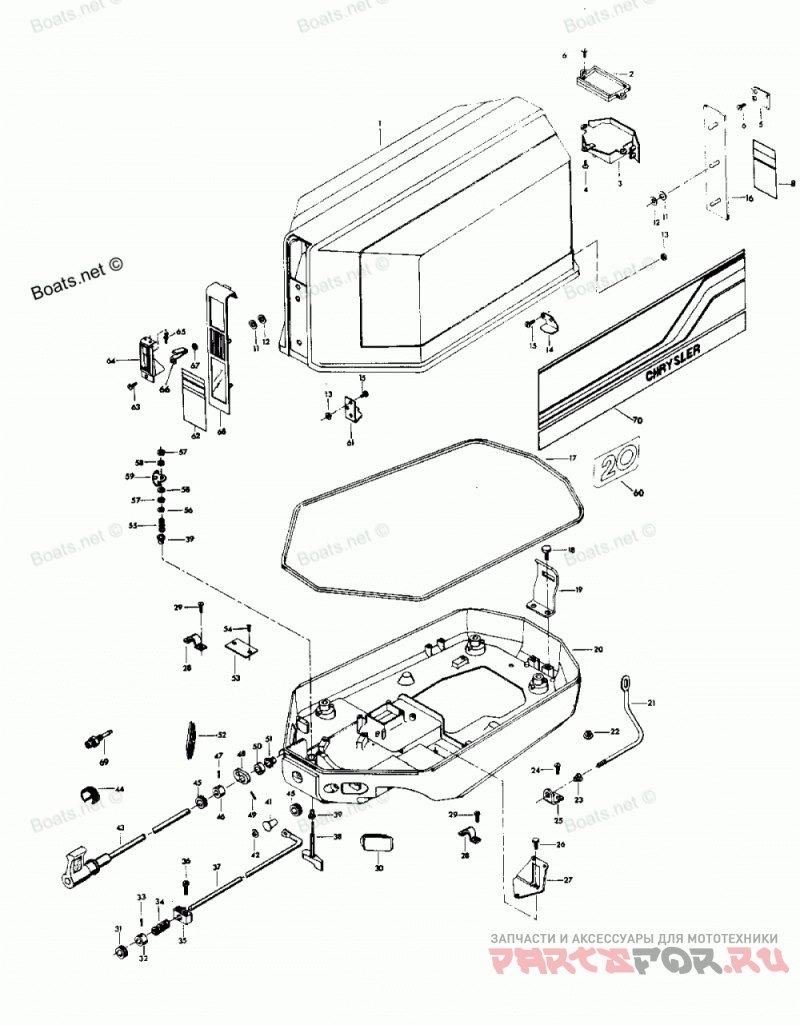

Engine Cover And Support Plate для лодочных моторов Force H0203H80L (1980)

Москва и регионы России

Engine Cover And Support Plate

Force H0203H80L

Engine Cover And Support Plate

#

oem код

название

цена

1

ENGINE COVER W/FRONT AND REAR RETAINERS

ENGINE COVER W/FRONT AND REAR RETAINERS

-

ENGINE COVER - COMPLETE.

ENGINE COVER - COMPLETE.

2

BAFFLE, TILT HANDLE

BAFFLE, TILT HANDLE

3

Ручка наклона

Ручка наклона

4

PAN HD SCREW, 10 X 5/8

PAN HD SCREW, 10 X 5/8

5

RETAINER, TILT HANDLE

RETAINER, TILT HANDLE

6

PAN HD SCREW, 10 X 7/16

PAN HD SCREW, 10 X 7/16

8

DECAL ENGINE COVER, REAR

DECAL ENGINE COVER, REAR

11

Уплотнение

Уплотнение

12

Застежка

Застежка

13

HEX NUT

HEX NUT

14

RETAINER, ENGINE COVER - REAR W/SCREWS AND NUTS

RETAINER, ENGINE COVER - REAR W/SCREWS AND NUTS

15

FILL HD SCREW, 10 - 24 X 1/2

FILL HD SCREW, 10 - 24 X 1/2

17

PACKING, ENGINE COVER

PACKING, ENGINE COVER

18

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

19

BRACKET, RETAINER - REAR

BRACKET, RETAINER - REAR

20

Опорная Плита

Опорная Плита

21

CHOKE ROD

CHOKE ROD

22

PLASTI-PLUG

PLASTI-PLUG

23

BEARING, CHOKE ROD

BEARING, CHOKE ROD

24

PAN HD SCREW, 10 - 24 X 3/8

PAN HD SCREW, 10 - 24 X 3/8

25

BRACKET, CHOKE ROD BEARING

BRACKET, CHOKE ROD BEARING

26

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

27

BRACKET, REMOTE THROTTLE CABLE

BRACKET, REMOTE THROTTLE CABLE

28

CLAMP, REMOTE CABLE

CLAMP, REMOTE CABLE

29

SLOTTED FILL HD SCREW W/SPRING LOCKWASHER, 10 - 24 X 5/8

SLOTTED FILL HD SCREW W/SPRING LOCKWASHER, 10 - 24 X 5/8

30

GROMMET, REMOTE THROTTLE CABLE

GROMMET, REMOTE THROTTLE CABLE

31

GROMMET, MAGNETO CONTROL SHAFT

GROMMET, MAGNETO CONTROL SHAFT

32

RETAINER, MAGNETO CONTROL SHAFT W/SET SCREW

RETAINER, MAGNETO CONTROL SHAFT W/SET SCREW

33

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

34

SPRING, MAGNETO CONTROL SHAFT

SPRING, MAGNETO CONTROL SHAFT

35

BEARING, MAGNETO CONTROL SHAFT

BEARING, MAGNETO CONTROL SHAFT

36

FILL HD SCREW, 10 - 24 X 7/8

FILL HD SCREW, 10 - 24 X 7/8

37

MAGNETO CONTROL SHAFT

MAGNETO CONTROL SHAFT

38

COVER LATCH HANDLE W/SHAFT

COVER LATCH HANDLE W/SHAFT

39

BEARING, LATCH SHAFT

BEARING, LATCH SHAFT

41

CHOKE KNOB

CHOKE KNOB

42

INSERT, CHOKE KNOB

INSERT, CHOKE KNOB

43

KNOB, GEAR SHIFT W/SHAFT AND INDICATOR

KNOB, GEAR SHIFT W/SHAFT AND INDICATOR

44

INDICATOR, GEAR SHIFT

INDICATOR, GEAR SHIFT

-

INDICATOR, GEAR SHIFT - CANADA

INDICATOR, GEAR SHIFT - CANADA

45

GROMMET, GEAR SHIFT CHOKE ROD

GROMMET, GEAR SHIFT CHOKE ROD

46

RETAINER, GEAR SHIFT SHAFT W/SET SCREW

RETAINER, GEAR SHIFT SHAFT W/SET SCREW

47

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

48

LEVER, GEAR SHIFT CONTROL

LEVER, GEAR SHIFT CONTROL

49

Пружинный Штифт

Пружинный Штифт

50

SPACER, GEAR SHIFT SHAFT

SPACER, GEAR SHIFT SHAFT

51

Подшипник

Подшипник

52

GROMMET, REMOTE SHIFT CABLE

GROMMET, REMOTE SHIFT CABLE

53

PLATE, IDENTIFICATION W/SCREWS

PLATE, IDENTIFICATION W/SCREWS

54

DRIVE SCREWS

DRIVE SCREWS

55

SPRING, LATCH SHAFT

SPRING, LATCH SHAFT

56

Стопорное кольцо

Стопорное кольцо

57

HEX JAM NUT, 5/16 - 18

HEX JAM NUT, 5/16 - 18

58

SPRING LOCKWASHER

SPRING LOCKWASHER

59

CAM, ENGINE COVER LATCH

CAM, ENGINE COVER LATCH

60

DECAL NUMERAL 20

DECAL NUMERAL 20

61

RETAINER, ENGINE COVER FRONT W/SCREWS AND NUTS

RETAINER, ENGINE COVER FRONT W/SCREWS AND NUTS

62

DECAL ENGINE COVER - FRONT

DECAL ENGINE COVER - FRONT

63

PAN HD SCREW, 10 - 24 X 3/8

PAN HD SCREW, 10 - 24 X 3/8

64

TRIM, STARTER HANDLE GUIDE

TRIM, STARTER HANDLE GUIDE

65

PLASTIC RIVET

PLASTIC RIVET

66

CLIP, STARTER GUIDE

CLIP, STARTER GUIDE

67

HEX NUT, 10 - 24

HEX NUT, 10 - 24

68

PLATE, FRONT

PLATE, FRONT

69

BUSHING, FUEL LINE

BUSHING, FUEL LINE

70

DECAL, ENGINE COVER - PORT

DECAL, ENGINE COVER - PORT

-

DECAL, ENGINE COVER - STARBOARD

DECAL, ENGINE COVER - STARBOARD
