Power Head для лодочных моторов Force H0095B80F (1980)

Москва и регионы России

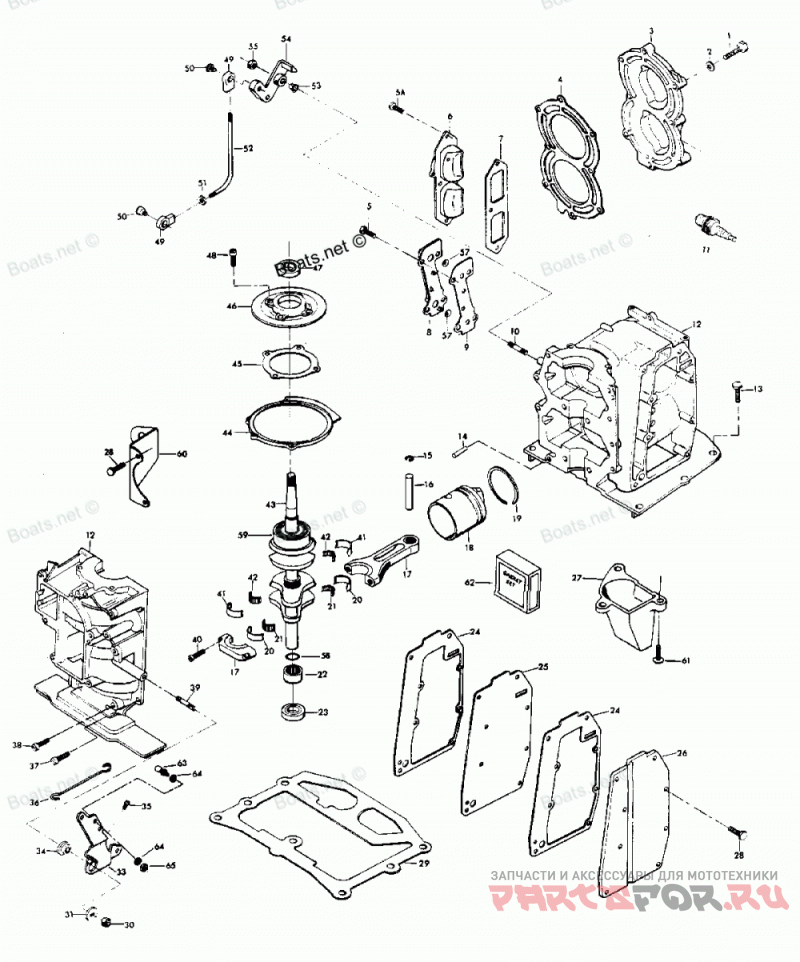

Power Head

Force H0095B80F

Power Head

#

oem код

название

цена

1

SCREW, CYLINDER HEAD

SCREW, CYLINDER HEAD

2

PLAIN WASHER

PLAIN WASHER

3

Головка цилиндров

Головка цилиндров

4

Прокладка

Прокладка

5

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

5A

Винт

Винт

-

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16

6

COVER, TRANSFER PORT

COVER, TRANSFER PORT

7

GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

8

COVER, CYLINDER DRAIN W/CHECK VALVES AND SCREWS

COVER, CYLINDER DRAIN W/CHECK VALVES AND SCREWS

9

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

10

STUD, INTERLOCK LEVER

STUD, INTERLOCK LEVER

11

PLUG, SPARK, L-4-J

PLUG, SPARK, L-4-J

-

SPARK PLUG (QL-77J4) CANADA

SPARK PLUG (QL-77J4) CANADA

12

Цилиндр

Цилиндр

-

SHORT BLOCK (NOT SHOWN).

SHORT BLOCK (NOT SHOWN).

13

HEX CAP SCREW, 5/16 - 18 X 1

HEX CAP SCREW, 5/16 - 18 X 1

14

Палец

Палец

15

RETAINING RING, PISTON PIN

RETAINING RING, PISTON PIN

16

Палец поршневой

Палец поршневой

17

ROD, CONNECTING W/CAP AND SCREWS, CRANKPIN ROLLER AND CAGE

ROD, CONNECTING W/CAP AND SCREWS, CRANKPIN ROLLER AND CAGE

18

Поршень

Поршень

19

PISTON RING SET (2 PER SET)

PISTON RING SET (2 PER SET)

20

CRANKPIN ROLLER BEARING CAGE

CRANKPIN ROLLER BEARING CAGE

21

ROLLER SET, CONNECTING ROD (16 PER SET)

ROLLER SET, CONNECTING ROD (16 PER SET)

22

BEARING, CRANKSHAFT LOWER MAIN

BEARING, CRANKSHAFT LOWER MAIN

23

SEAL, CRANKSHAFT LOWER

SEAL, CRANKSHAFT LOWER

24

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

25

PLATE, EXHAUST

PLATE, EXHAUST

26

Защита

Защита

27

EXHAUST TUBE

EXHAUST TUBE

28

HEX HD SCREW, 1/4 - 20 X 7/8

HEX HD SCREW, 1/4 - 20 X 7/8

29

GASKET, CYLINDER MOUNTING

GASKET, CYLINDER MOUNTING

30

STOP NUT, 5/16 - 24

STOP NUT, 5/16 - 24

31

Шайба

Шайба

33

LEVER, MAGNETO CONTROL ASSEMBLY

LEVER, MAGNETO CONTROL ASSEMBLY

34

BEARING, MAGNETO CONTROL LEVER

BEARING, MAGNETO CONTROL LEVER

35

FILL HD SCREW, 1/4 - 20 X 1 1/4

FILL HD SCREW, 1/4 - 20 X 1 1/4

36

LINK, THROTTLE CAM

LINK, THROTTLE CAM

37

FILL HD SCREW, 1/4 - 20 X 3/4

FILL HD SCREW, 1/4 - 20 X 3/4

38

FILL HD SCREW, 5/16 - 18 X 1 1/4

FILL HD SCREW, 5/16 - 18 X 1 1/4

39

STUD, MAGNETO CONTROL LEVER

STUD, MAGNETO CONTROL LEVER

40

SCREW, CONNECTING ROD

SCREW, CONNECTING ROD

41

MAIN BEARING LINER SET (2 PER SET)

MAIN BEARING LINER SET (2 PER SET)

42

ROLLER SET, MAIN BEARING (26 PER SET)

ROLLER SET, MAIN BEARING (26 PER SET)

43

CRANKSHAFT W/UPPER MAIN BEARING

CRANKSHAFT W/UPPER MAIN BEARING

44

RING, MAGNETO STATOR

RING, MAGNETO STATOR

45

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

46

CAGE, CRANKSHAFT BEARING W/SEAL

CAGE, CRANKSHAFT BEARING W/SEAL

47

SEAL, CRANKSHAFT UPPER

SEAL, CRANKSHAFT UPPER

48

FILL HD SCREW, 1/4 - 20 X 7/8

FILL HD SCREW, 1/4 - 20 X 7/8

49

BEARING, INTERLOCK ROD

BEARING, INTERLOCK ROD

50

SWIVEL, INTERLOCK ROD BEARING

SWIVEL, INTERLOCK ROD BEARING

51

HEX NUT, 10 - 24

HEX NUT, 10 - 24

52

ROD, INTERLOCK

ROD, INTERLOCK

53

BEARING, INTERLOCK LEVER

BEARING, INTERLOCK LEVER

54

LEVER, INTERLOCK

LEVER, INTERLOCK

55

STOP NUT, 1/4 - 20

STOP NUT, 1/4 - 20

57

Водозаборная решетка

Водозаборная решетка

58

SEAL, DRIVESHAFT SPLINE

SEAL, DRIVESHAFT SPLINE

59

BEARING, CRANKSHAFT UPPER MAIN

BEARING, CRANKSHAFT UPPER MAIN

60

BRACKET, INTERLOCK SWITCH

BRACKET, INTERLOCK SWITCH

61

TAPTITE HEX WASHER HD SCREW, 1/4 - 20 X 5/8

TAPTITE HEX WASHER HD SCREW, 1/4 - 20 X 5/8

62

GASKET SET.

GASKET SET.

-

CARBURETOR GASKET

CARBURETOR GASKET

-

GASKET EXHAUST COVER

GASKET EXHAUST COVER

-

GASKET, REED PLATE

GASKET, REED PLATE

-

GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

-

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

-

GASKET, CYLINDER MOUNTING

GASKET, CYLINDER MOUNTING

-

Прокладка

Прокладка

-

Прокладка

Прокладка

-

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

63

STUD, REMOTE THROTTLE CONNECTOR

STUD, REMOTE THROTTLE CONNECTOR

64

INTERNAL TOOTH LOCK WASHER

INTERNAL TOOTH LOCK WASHER

65

HEX NUT 10 - 32

HEX NUT 10 - 32
