Motor Leg для лодочных моторов Force H0091H80B (1980)

Москва и регионы России

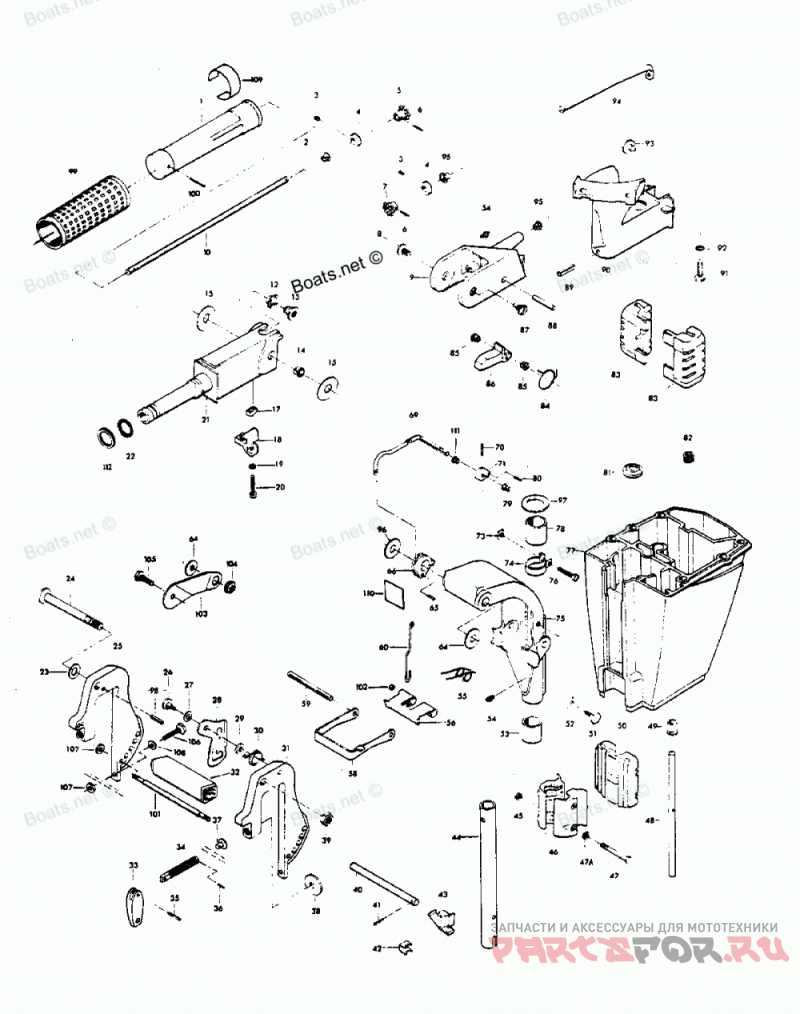

Motor Leg

Force H0091H80B

Motor Leg

#

oem код

название

цена

1

GRIP, STEERING HANDLE W/SLEEVE

GRIP, STEERING HANDLE W/SLEEVE

2

Подшипник

Подшипник

3

HEX SOCKET HEADLESS SET SCREW

HEX SOCKET HEADLESS SET SCREW

4

RETAINER W/SET SCREW

RETAINER W/SET SCREW

5

GEAR, STEERING HANDLE SHAFT

GEAR, STEERING HANDLE SHAFT

6

Пружинный Штифт

Пружинный Штифт

7

GEAR, MAGNETO CONTROL SHAFT

GEAR, MAGNETO CONTROL SHAFT

8

TRUSS HD SCREW, 5/16 - 18 X 5/8

TRUSS HD SCREW, 5/16 - 18 X 5/8

9

STEERING HANDLE BRACKET W/GREASE FITTING

STEERING HANDLE BRACKET W/GREASE FITTING

10

SHAFT, STEERING HANDLE

SHAFT, STEERING HANDLE

12

Подшипник

Подшипник

13

INSERT, STEERING HANDLE PIVOT

INSERT, STEERING HANDLE PIVOT

14

Подшипник

Подшипник

15

WASHER, STEERING HANDLE

WASHER, STEERING HANDLE

17

WEDGE, STEERING HANDLE

WEDGE, STEERING HANDLE

18

BEARING, STEERING HANDLE

BEARING, STEERING HANDLE

19

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

20

FILL HD SCREW, 10 - 24 X 7/8

FILL HD SCREW, 10 - 24 X 7/8

21

STEERING HANDLE

STEERING HANDLE

22

SEAL, STEERING HANDLE GRIP DAMPENER

SEAL, STEERING HANDLE GRIP DAMPENER

23

PLAIN WASHER

PLAIN WASHER

24

STERN BRACKET PIVOT BOLT

STERN BRACKET PIVOT BOLT

25

STERN BRACKET W/CLAMP SCREW AND FOOT

STERN BRACKET W/CLAMP SCREW AND FOOT

26

TILT LOCK PIVOT

TILT LOCK PIVOT

27

BOWED SPRING WASHER

BOWED SPRING WASHER

28

TILT LOCK

TILT LOCK

29

SPACER, TILT LOCK

SPACER, TILT LOCK

30

SPRING, TILT STOP

SPRING, TILT STOP

31

STERN BRACKET PORT W/CLAMP SCREW AND FOOT

STERN BRACKET PORT W/CLAMP SCREW AND FOOT

32

CARRYING HANDLE

CARRYING HANDLE

33

HANDLE, CLAMP SCREW

HANDLE, CLAMP SCREW

34

CLAMP SCREW W/FOOT AND STUD

CLAMP SCREW W/FOOT AND STUD

35

Пружинный Штифт

Пружинный Штифт

36

Пружинный Штифт

Пружинный Штифт

37

STUD CLAMP SCREW

STUD CLAMP SCREW

38

CLAMP SCREW FOOT

CLAMP SCREW FOOT

39

STOP NUT, 3/8 - 16

STOP NUT, 3/8 - 16

40

LOCK BAR W/HANDLE AND SPRING

LOCK BAR W/HANDLE AND SPRING

41

Пружинный Штифт

Пружинный Штифт

42

SPRING, LOCK BAR HANDLE

SPRING, LOCK BAR HANDLE

43

LOCK BAR HANDLE

LOCK BAR HANDLE

44

KING PIN

KING PIN

45

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

46

BRACKET, SHOCK MOUNT LOWER

BRACKET, SHOCK MOUNT LOWER

47

HEX BOLT, 1/4 - 20 X 2 3/8

HEX BOLT, 1/4 - 20 X 2 3/8

47A

SPRING LOCKWASHER

SPRING LOCKWASHER

48

WATER LINE

WATER LINE

49

SLEEVE WATER LINE

SLEEVE WATER LINE

50

SHOCK MOUNT LOWER

SHOCK MOUNT LOWER

51

TILT LOCK PIVOT

TILT LOCK PIVOT

52

SPACER, TILT LOCK

SPACER, TILT LOCK

53

BEARING, SWIVEL BRACKET

BEARING, SWIVEL BRACKET

54

Масленка

Масленка

55

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK

56

REVERSE LOCK

REVERSE LOCK

58

BRACKET SHALLOW WATER DRIVE

BRACKET SHALLOW WATER DRIVE

59

GROOVE PIN

GROOVE PIN

60

LINK, REVERSE LOCK LEVER

LINK, REVERSE LOCK LEVER

64

WASHER, STERN BRACKET

WASHER, STERN BRACKET

65

Пружинный Штифт

Пружинный Штифт

66

REVERSE LOCK RELEASE LEVER

REVERSE LOCK RELEASE LEVER

69

LEVER, REVERSE LOCK INTERMEDIATE ASSEMBLY

LEVER, REVERSE LOCK INTERMEDIATE ASSEMBLY

70

Пружинный Штифт

Пружинный Штифт

71

LEVER, REVERSE LOCK

LEVER, REVERSE LOCK

73

SQUARE NUT, 1/4 - 20

SQUARE NUT, 1/4 - 20

74

CLAMP, STEERING HANDLE

CLAMP, STEERING HANDLE

75

SWIVEL BRACKET W/GREASE FITTING

SWIVEL BRACKET W/GREASE FITTING

76

FILL HD SCREW, 1/4 - 20 X 1 3/8

FILL HD SCREW, 1/4 - 20 X 1 3/8

77

MOTOR LEG

MOTOR LEG

78

BEARING, SWIVEL BRACKET

BEARING, SWIVEL BRACKET

79

Подшипник

Подшипник

80

Пружинный Штифт

Пружинный Штифт

81

SEAL, WATER LINE UPPER

SEAL, WATER LINE UPPER

82

SPRING, LEG WATER BRACKET

SPRING, LEG WATER BRACKET

83

SHOCK MOUNT UPPER

SHOCK MOUNT UPPER

84

SPRING, STEERING HANDLE STOP

SPRING, STEERING HANDLE STOP

85

BEARING, STEERING HANDLE STOP

BEARING, STEERING HANDLE STOP

86

STEERING HANDLE STOP

STEERING HANDLE STOP

87

SCREW, STEERING HANDLE PIVOT

SCREW, STEERING HANDLE PIVOT

88

GROOVE PIN

GROOVE PIN

89

Пружинный Штифт

Пружинный Штифт

90

STEERING ARM W/SPRING PIN & BUMPER

STEERING ARM W/SPRING PIN & BUMPER

91

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

92

EXTERNAL TOOTH LOCKWASHER

EXTERNAL TOOTH LOCKWASHER

93

Амортизатор ударов

Амортизатор ударов

94

MAGNETO CONTROL SHAFT

MAGNETO CONTROL SHAFT

95

Подшипник

Подшипник

96

Шайба

Шайба

97

WASHER, SWIVEL BRACKET

WASHER, SWIVEL BRACKET

98

Пружинный Штифт

Пружинный Штифт

99

Гильца

Гильца

100

Пружинный Штифт

Пружинный Штифт

101

TIE BAR

TIE BAR

102

SPACER, REVERSE LOCK

SPACER, REVERSE LOCK

103

BRACKET, LOCK STEERING

BRACKET, LOCK STEERING

104

NUT, STEERING LOCK BRACKET

NUT, STEERING LOCK BRACKET

105

SCREW, STEERING LOCK BRACKET

SCREW, STEERING LOCK BRACKET

106

HEX SLOTTED HD SCREW, 1/4 - 20 X 3 3/16

HEX SLOTTED HD SCREW, 1/4 - 20 X 3 3/16

107

LOCK NUT

LOCK NUT

108

PLAIN WASHER

PLAIN WASHER

109

SPEED CONTROL INDICATOR

SPEED CONTROL INDICATOR

-

SPEED CONTROL INDICATOR - CANADA

SPEED CONTROL INDICATOR - CANADA

110

DECAL, TILT RELEASE

DECAL, TILT RELEASE

-

DECAL, TILT RELEASE- CANADA

DECAL, TILT RELEASE- CANADA

111

BEARING, REVERSE LOCK INTERMEDIATE LEVER

BEARING, REVERSE LOCK INTERMEDIATE LEVER

112

STEERING HANDLE DAMPENER

STEERING HANDLE DAMPENER
