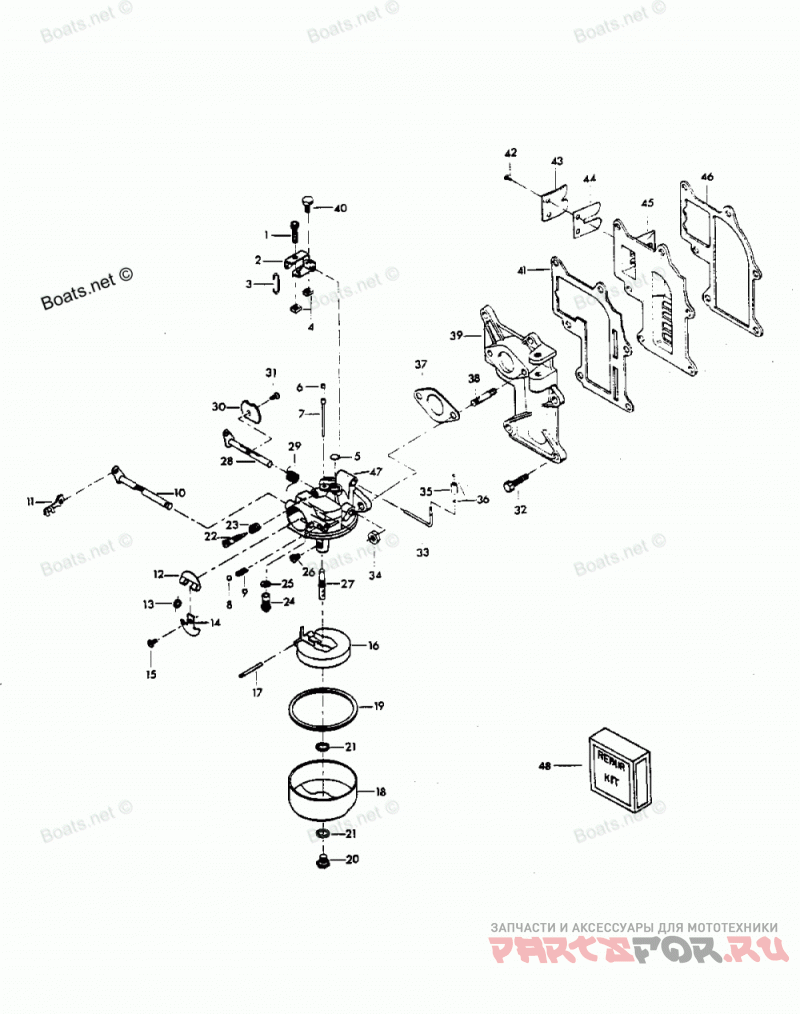

Топливная система

Force H0091H80B

Топливная система

#

oem код

название

цена

1

FILL HD SCREW, 10 - 24 X 7/8

FILL HD SCREW, 10 - 24 X 7/8

2

ARM, CARBURETOR FOLLOWER

ARM, CARBURETOR FOLLOWER

3

THROTTLE LINK

THROTTLE LINK

4

SQUARE NUT, 10 - 24

SQUARE NUT, 10 - 24

5

BODY CHANNEL WELCH PLUG

BODY CHANNEL WELCH PLUG

6

BODY CHANNEL CUP PLUG

BODY CHANNEL CUP PLUG

7

BYPASS TUBE

BYPASS TUBE

8

CHOKE FRICTION BALL

CHOKE FRICTION BALL

9

CHOKE FRICTION SPRING

CHOKE FRICTION SPRING

10

CHOKE SHAFT AND LEVER

CHOKE SHAFT AND LEVER

11

RETAINER, CHOKE ROD

RETAINER, CHOKE ROD

12

CHOKE RELIEF VALVE

CHOKE RELIEF VALVE

13

CHOKE RELIEF VALVE SPRING

CHOKE RELIEF VALVE SPRING

14

CHOKE SHUTTER

CHOKE SHUTTER

15

CHOKE SHUTTER RETAINER SCREW AND LOCKWASHER

CHOKE SHUTTER RETAINER SCREW AND LOCKWASHER

16

Поплавок

Поплавок

17

FLOAT LEVER PIN

FLOAT LEVER PIN

18

FUEL BOWL

FUEL BOWL

19

FUEL BOWL GASKET

FUEL BOWL GASKET

20

FUEL BOWL RETAINING SCREW

FUEL BOWL RETAINING SCREW

21

FUEL BOWL RETAINING SCREW GASKET

FUEL BOWL RETAINING SCREW GASKET

22

IDLE MIXTURE SCREW

IDLE MIXTURE SCREW

23

IDLE MIXTURE SCREW SPRING

IDLE MIXTURE SCREW SPRING

24

INLET NEEDLE, SEAT AND GASKET

INLET NEEDLE, SEAT AND GASKET

25

INLET SEAT GASKET

INLET SEAT GASKET

26

JET MAIN FUEL JET STD. .045 SEA LEVEL - 3000 FT.

JET MAIN FUEL JET STD. .045 SEA LEVEL - 3000 FT.

-

MAIN FUEL JET OPT. .043 3000 FT. - 6000 FT.

MAIN FUEL JET OPT. .043 3000 FT. - 6000 FT.

ED.

MAIN FUEL JET OPT. .041 6000 FT. - & UP,

MAIN FUEL JET OPT. .041 6000 FT. - & UP,

27

MAIN NOZZLE

MAIN NOZZLE

28

THROTTLE SHAFT AND LEVER

THROTTLE SHAFT AND LEVER

29

THROTTLE SHAFT RETURN SPRING

THROTTLE SHAFT RETURN SPRING

30

THROTTLE SHUTTER

THROTTLE SHUTTER

31

THROTTLE SHUTTER RETAINING SCREW AND LOCKWASHER

THROTTLE SHUTTER RETAINING SCREW AND LOCKWASHER

32

HEX HD SCREW, 1/4 - 20 X 3/4

HEX HD SCREW, 1/4 - 20 X 3/4

33

THROTTLE CAM FOLLOWER

THROTTLE CAM FOLLOWER

34

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

35

ROLLER, THROTTLE CAM FOLLOWER

ROLLER, THROTTLE CAM FOLLOWER

36

Седло

Седло

37

CARBURETOR GASKET

CARBURETOR GASKET

38

STUD, CARBURETOR

STUD, CARBURETOR

39

MANIFOLD W/STUDS AND PULLEY

MANIFOLD W/STUDS AND PULLEY

40

HEX HD SCREW, 10 - 24 X 1/2

HEX HD SCREW, 10 - 24 X 1/2

41

Прокладка

Прокладка

42

RD HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

RD HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

43

REED STOP

REED STOP

44

REED

REED

45

REED PLATE W/REEDS, STOPS AND SCREWS

REED PLATE W/REEDS, STOPS AND SCREWS

46

GASKET, REED PLATE

GASKET, REED PLATE

47

CARBURETOR - COMPLETE (CO-7C)

CARBURETOR - COMPLETE (CO-7C)

-

GASKET SET, CARBURETOR (NOT SHOWN)

GASKET SET, CARBURETOR (NOT SHOWN)

48

REPAIR PARTS KIT, CARBURETOR.

REPAIR PARTS KIT, CARBURETOR.
