Motor Leg для лодочных моторов Force H0061H80C (1980)

Москва и регионы России

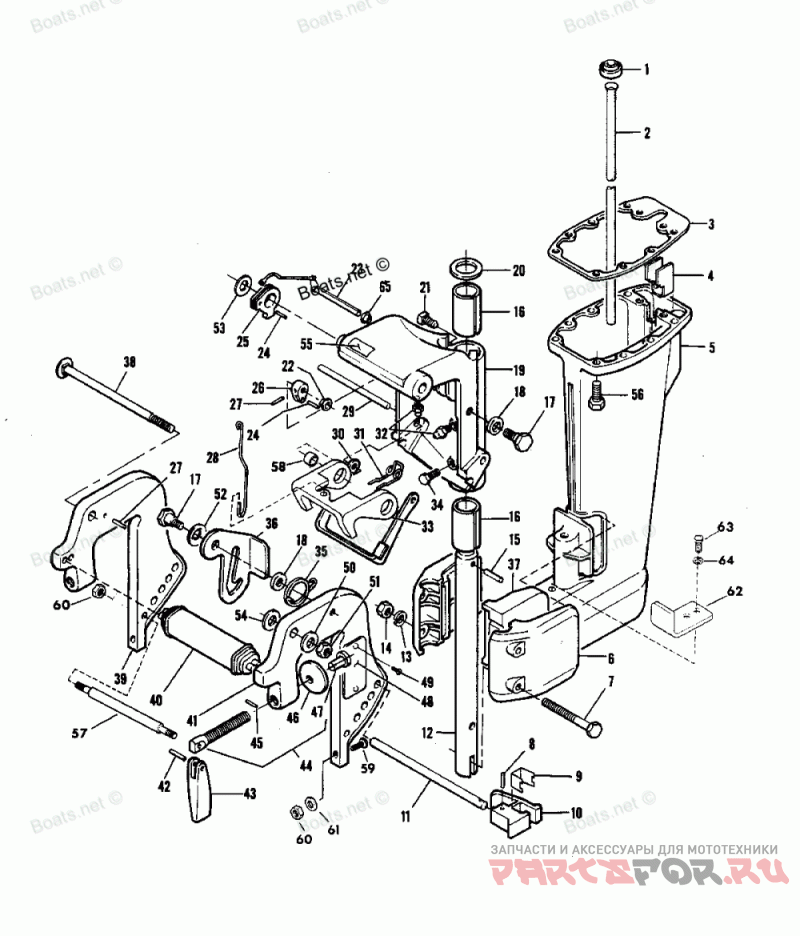

Motor Leg

Force H0061H80C

Motor Leg

#

oem код

название

цена

1

SEAL, WATERLINE INLET UPPER

SEAL, WATERLINE INLET UPPER

2

WATERLINE (STD. LEG)

WATERLINE (STD. LEG)

3

GASKET LEG MOUNTING

GASKET LEG MOUNTING

4

BAFFLE IDLE RELIEF

BAFFLE IDLE RELIEF

5

MOTOR LEG

MOTOR LEG

6

COVER, SHOCK MOUNT LOWER

COVER, SHOCK MOUNT LOWER

7

HEX HD SCREW, 1/4 - 20 X 2 1/2

HEX HD SCREW, 1/4 - 20 X 2 1/2

8

SPRING PIN, 3/32 X 5/8

SPRING PIN, 3/32 X 5/8

9

SPRING LOCK BAR HANDLE

SPRING LOCK BAR HANDLE

10

HANDLE LOCK BAR

HANDLE LOCK BAR

11

BAR LOCK

BAR LOCK

12

KINGPIN

KINGPIN

13

Стопорная шайба

Стопорная шайба

14

NUT, 1/4 - 20

NUT, 1/4 - 20

15

SPRING PIN, 1/4 X 3/8

SPRING PIN, 1/4 X 3/8

16

BEARING SWIVEL BRACKET

BEARING SWIVEL BRACKET

17

PIVOT TILT LOCK

PIVOT TILT LOCK

18

SPACER TILT LOCK

SPACER TILT LOCK

19

SWIVEL BRACKET

SWIVEL BRACKET

20

WASHER SWIVEL BRACKET

WASHER SWIVEL BRACKET

21

SCREW, STEERING FRICTION

SCREW, STEERING FRICTION

22

Подшипник

Подшипник

23

LEVER REVERSE LOCK INTERMEDIATE

LEVER REVERSE LOCK INTERMEDIATE

24

SPRING PIN, 3/32 X 3/8

SPRING PIN, 3/32 X 3/8

25

LEVER REVERSE LOCK RELEASE

LEVER REVERSE LOCK RELEASE

26

LEVER REVERSE LOCK

LEVER REVERSE LOCK

27

SPRING PIN, 3/32 X 1/2

SPRING PIN, 3/32 X 1/2

28

LINK REVERSE LOCK LEVER

LINK REVERSE LOCK LEVER

29

GROOVE PIN, 5/16 - 3/4

GROOVE PIN, 5/16 - 3/4

30

BRACKET SHALLOW WATER DRIVE

BRACKET SHALLOW WATER DRIVE

31

SPRING REVERSE LOCK

SPRING REVERSE LOCK

32

FITTING GREASE

FITTING GREASE

33

LOCK REVERSE

LOCK REVERSE

34

SCREW SWIVEL BRACKET

SCREW SWIVEL BRACKET

35

SPRING TILT LOCK

SPRING TILT LOCK

36

LOCK TILT

LOCK TILT

37

MOUNT LOWER SHOCK

MOUNT LOWER SHOCK

38

BOLT STERN BRACKET

BOLT STERN BRACKET

39

BRACKET STERN STARBOARD W/SCREW CLAMP

BRACKET STERN STARBOARD W/SCREW CLAMP

40

HANDLE CARRYING

HANDLE CARRYING

41

BRACKET STERN PORT, W/SCREW CLAMP

BRACKET STERN PORT, W/SCREW CLAMP

42

SPRING PIN, 3/16 X 3/4

SPRING PIN, 3/16 X 3/4

43

HANDLE CLAMP SCREW

HANDLE CLAMP SCREW

44

SCREW CLAMP W/45, 46, 47

SCREW CLAMP W/45, 46, 47

45

Пружинный Штифт

Пружинный Штифт

46

FOOT CLAMP SCREW

FOOT CLAMP SCREW

47

STUD CLAMP SCREW

STUD CLAMP SCREW

48

IDENTIFICATION PLATE W/SCREWS

IDENTIFICATION PLATE W/SCREWS

49

RD HD DRIVE SCREW, #2 X 3/16

RD HD DRIVE SCREW, #2 X 3/16

50

PLAIN WASHER

PLAIN WASHER

51

NUT STEERING LOCK BRACKET

NUT STEERING LOCK BRACKET

52

Упругая Шайба

Упругая Шайба

53

Шайба

Шайба

54

Шайба

Шайба

55

DECAL, TILT RELEASE - USA

DECAL, TILT RELEASE - USA

56

HEX CAP SCREW, 1/4 - 20 X 1

HEX CAP SCREW, 1/4 - 20 X 1

57

TIE BAR

TIE BAR

58

SPACER REVERSE LOCK

SPACER REVERSE LOCK

59

HEX SLOTTED HD SCREW, 1/4 - 20 X 3/16

HEX SLOTTED HD SCREW, 1/4 - 20 X 3/16

60

LOCK NUT

LOCK NUT

61

PLAIN WASHER

PLAIN WASHER

62

BRACKET, REVERSE THRUST

BRACKET, REVERSE THRUST

63

HEX HD M. SCREW, 1/4 - 28 X 3/8

HEX HD M. SCREW, 1/4 - 28 X 3/8

64

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

65

Подшипник

Подшипник
