Топливная система для лодочных моторов Force H0061H80C (1980)

Москва и регионы России

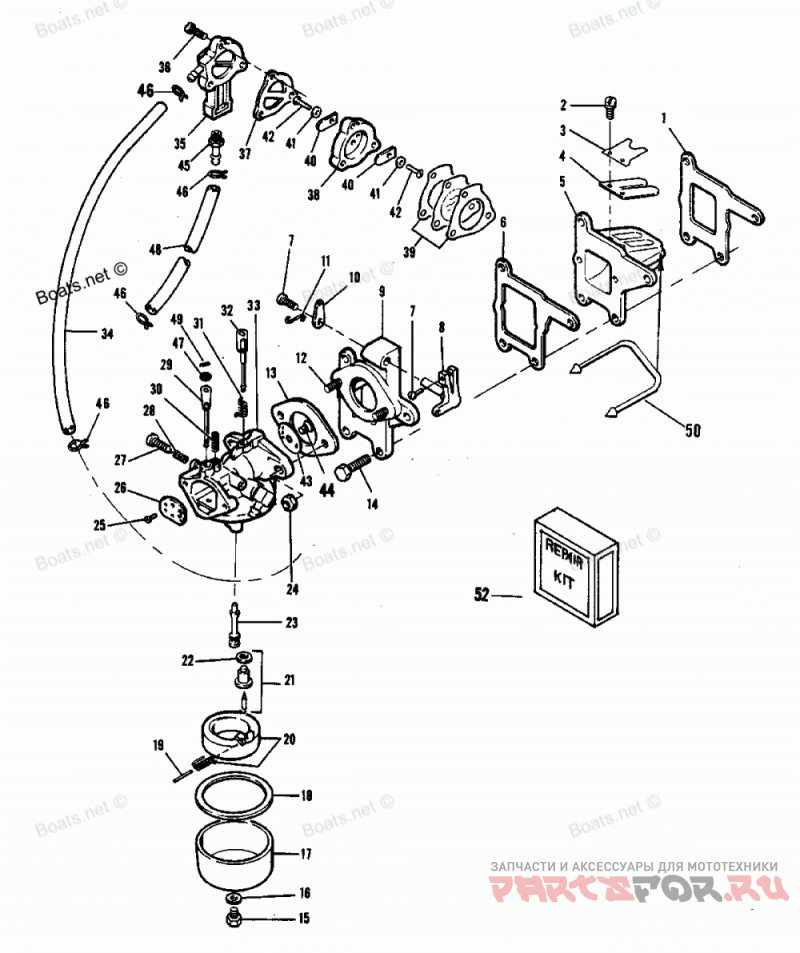

Топливная система

Force H0061H80C

Топливная система

#

oem код

название

цена

1

GASKET, REED PLATE

GASKET, REED PLATE

2

RD HD SCREW & SPRING LOCKWASHER ASSEMBLY, 6 - 32 X 5/16

RD HD SCREW & SPRING LOCKWASHER ASSEMBLY, 6 - 32 X 5/16

3

REED STOP

REED STOP

4

REED

REED

5

PLATE REED W/SEAL

PLATE REED W/SEAL

6

GASKET MANIFOLD

GASKET MANIFOLD

7

HEX HD SCREW, 8 - 32 X 1/2

HEX HD SCREW, 8 - 32 X 1/2

8

FOLLOWER THROTTLE CAM

FOLLOWER THROTTLE CAM

9

MANIFOLD W/STUDS

MANIFOLD W/STUDS

10

LEVER THROTTLE

LEVER THROTTLE

11

LINK THROTTLE

LINK THROTTLE

12

STUD CARBURETOR

STUD CARBURETOR

13

GASKET CARBURETOR

GASKET CARBURETOR

14

HEX HD SCREW, 1/4 - 20 X 1

HEX HD SCREW, 1/4 - 20 X 1

15

JET ASSEMBLY, STD. .039 SEA LEVEL - 3000 FT.

JET ASSEMBLY, STD. .039 SEA LEVEL - 3000 FT.

-

JET ASSEMBLY, OPT. .038 3000 - 5000 FT.

JET ASSEMBLY, OPT. .038 3000 - 5000 FT.

-

JET ASSEMBLY, OPT. .037 5000 - 7000 FT.

JET ASSEMBLY, OPT. .037 5000 - 7000 FT.

-

JET ASSEMBLY, OPT. .036 7000 FT. & UP

JET ASSEMBLY, OPT. .036 7000 FT. & UP

16

GASKET FUEL BOWL RETAINER

GASKET FUEL BOWL RETAINER

17

FUEL BOWL

FUEL BOWL

18

GASKET BODY TO BOWL

GASKET BODY TO BOWL

19

SHAFT - FLOAT

SHAFT - FLOAT

20

Поплавок

Поплавок

21

KIT - VALVE, SEAT, SPRING & GASKET

KIT - VALVE, SEAT, SPRING & GASKET

22

GASKET VALVE SEAT

GASKET VALVE SEAT

23

Наконечник

Наконечник

24

NUT, 1/4 - 20

NUT, 1/4 - 20

25

SCREW ASSEMBLY - CHOKE VALVE

SCREW ASSEMBLY - CHOKE VALVE

26

CHOKE VALVE ASSEMBLY

CHOKE VALVE ASSEMBLY

27

NEEDLE - IDLE

NEEDLE - IDLE

28

SPRING IDLE NEEDLE

SPRING IDLE NEEDLE

29

CHOKE SHAFT ASSEMBLY

CHOKE SHAFT ASSEMBLY

30

SPRING CHOKE STOP

SPRING CHOKE STOP

31

SPRING THROTTLE RETURN

SPRING THROTTLE RETURN

32

SHAFT ASSEMBLY - THROTTLE

SHAFT ASSEMBLY - THROTTLE

33

CARBURETOR

CARBURETOR

34

Шланг

Шланг

35

COVER FUEL PUMP

COVER FUEL PUMP

36

FILL HD SCREW, 10 - 24 X 1/16

FILL HD SCREW, 10 - 24 X 1/16

37

GASKET FUEL PUMP

GASKET FUEL PUMP

38

PLATE FUEL PUMP REED W/REEDS & SCREWS

PLATE FUEL PUMP REED W/REEDS & SCREWS

39

DIAPHRAGM, FUEL PUMP W/GASKETS

DIAPHRAGM, FUEL PUMP W/GASKETS

40

REED FUEL PUMP

REED FUEL PUMP

41

PLAIN WASHER

PLAIN WASHER

42

PAN HD SCREW, #4 - 40 X 3/16

PAN HD SCREW, #4 - 40 X 3/16

43

VALVE THROTTLE

VALVE THROTTLE

44

SCREW, THROTTLE VALVE

SCREW, THROTTLE VALVE

45

FILTER FUEL PUMP

FILTER FUEL PUMP

46

CLAMP HOSE

CLAMP HOSE

47

Шайба

Шайба

48

Шланг

Шланг

49

Стопорное кольцо

Стопорное кольцо

50

SEAL, REED PLATE

SEAL, REED PLATE

51

FLOAT SUPPORT SPRING

FLOAT SUPPORT SPRING

52

REPAIR KIT.

REPAIR KIT.

-

GASKET KIT.

GASKET KIT.
