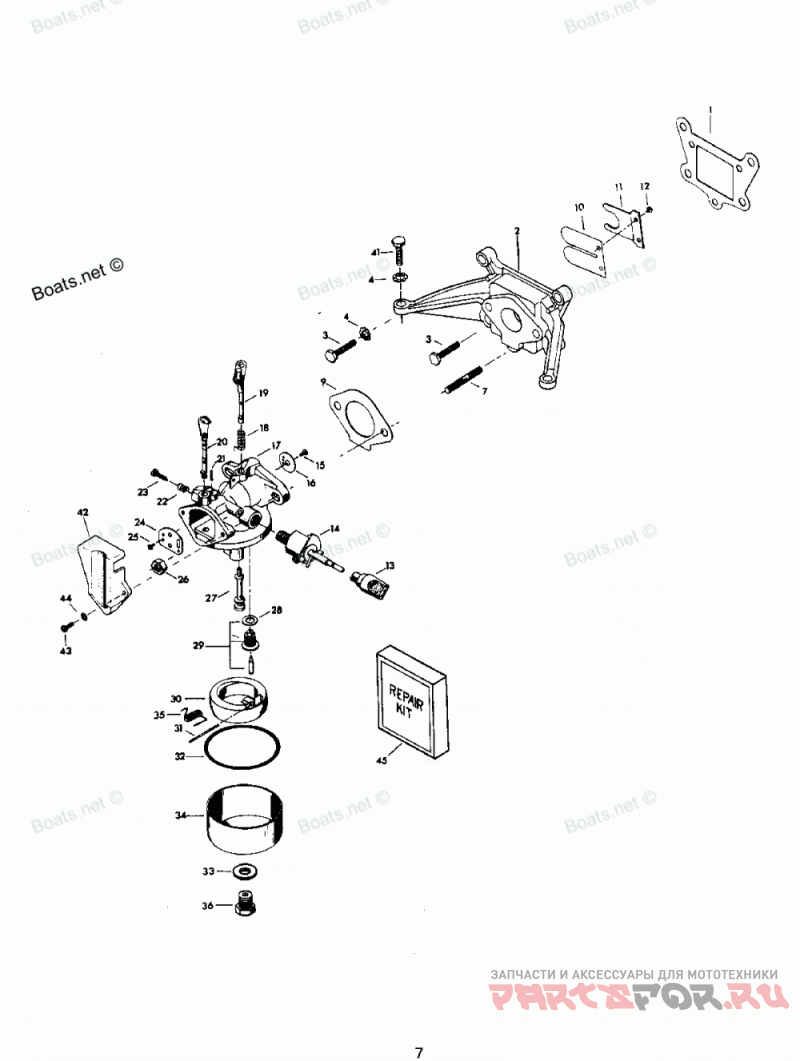

Carburetor & Reed Plate

Force H0043H80A

Force
#oem кодцена
1
F521168
GASKET, CARBURETOR ADAPTER
2
F2A332167
CARBURETOR ADAPTER W/STUDS, REED AND STOP
3
F1532
HEX CAP SCREW, 1/4 - 20 X 1
4
F8060
INTERNAL TOOTH LOCKWASHER
7
F27209-1
STUD, CARBURETOR
9
F521906
GASKET, CARBURETOR
10
F31160-1
REED
11
F424161
REED STOP
12
F1755
ROUND HD SCREW W/LOCKWASHER, 6 - 32 X 5/16
13
F521550
KNOB, FUEL SHUT-OFF
14
F521489
VALVE, FUEL SHUT-OFF
15
F10071
Винт
16
F10060
THROTTLE
17
F521061-5
CARBURETOR - COMPLETE
18
F10075
SPRING, THROTTLE RETURN
19
F10059
Вал дросселя
20
F10061
CHOKE SHAFT
21
F10072
SPRING, CHOKE STOP
22
F10073
SPRING, IDLE ADJUSTMENT NEEDLE
23
F10077
NEEDLE, IDLE
24
F10062
CHOKE VALVE
25
F10070
SCREW, CHOKE VALVE
26
F1490
HEX NUT, 1/4 - 20
27
F10065
Наконечник
28
F10066
Прокладка уплотнительная клапана
29
F10100
VALVE, SEAT AND GASKET ASSEMBLY
30
F10063
Поплавок
31
F10064
FLOAT PIN
32
F10068
GASKET, FUEL BOWL
33
F10090
GASKET, BOWL RETAINER
34
F10058
FUEL BOWL
35
F10084
SPRING, FLOAT SUPPORT
36
F10096
JET ASSEMBLY (.039) STD. SEA LEVEL - 3000 FT.
-
F10093
JET ASSEMBLY (.038) OPT. 3000 FT. - 5000 FT.
-
F10086
JET ASSEMBLY (.037) OPT. 5000 FT. - 7000 FT.
-
F10094
JET ASSEMBLY (.036) OPT. 7000 FT. AND UP.
41
F1534
HEX CAP SCREW, 1/4 - 20 X 7/8
42
F521708
CARBURETOR COVER
43
F1064
FILL HD SCREW, 8 - 32 X 3/8
44
F8078
LOCKWASHER, INTERNAL TOOTH
45
F10098
REPAIR KIT.
-
F10069
GASKET SET.
