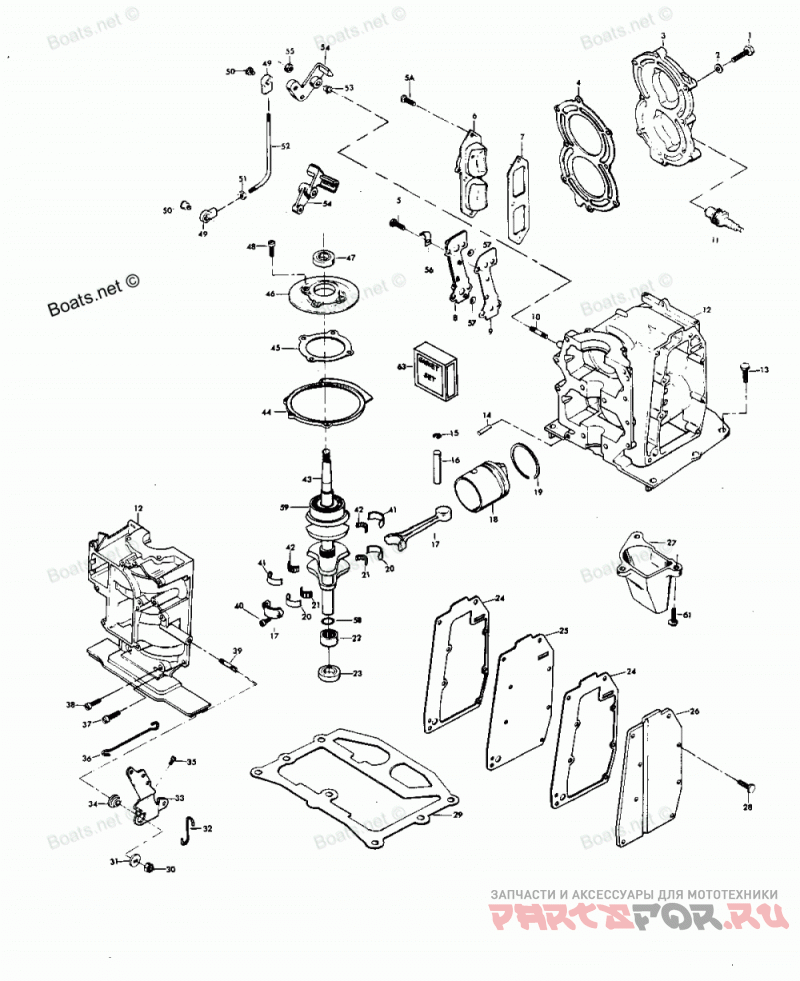

Power Head

Force H0092H79F

Force
#oem кодцена
1
F901938-1
SCREW, CYLINDER HEAD
2
F8025
PLAIN WASHER
3
F492518
Головка цилиндров
4
F286529-3
Прокладка
5
F1922
HEX HD SCREW, 1/4 - 20 X 5/8
5A
F1502
HEX CAP SCREW, 1/4 - 20 X 5/8 9.9 H.P. MANUAL START
-
F510165
SCREW, TRANSFER PORT COVER 9.9 H.P C-D ALTERNATOR
6
F286222
COVER, TRANSFER PORT 9.9 H.P. MANUAL START
-
F510222
TRANSFER PORT COVER 9.9 H.P. C-D ALTERNATOR
7
F286223
GASKET, TRANSFER PORT COVER
8
FA429471
COVER, CYLINDER DRAIN W/CHECK VALVES AND SCREWS
9
F429472
GASKET, CYLINDER DRAIN COVER
10
F28004
STUD, INTERLOCK LEVER
11
FS174227
PLUG, SPARK, L-4-J
-
FC235227
PLUG, SPARK CHAMPION (RL-4-J), FOR MODELS 92B9F, 93B9F
-
FC503227
PLUG, SPARK CHAMPION (QL-77-J4), FOR MODELS 98B9A, 99B9A
12
817801A2
CYLINDER W/CRANKCASE COVER, DOWEL PINS, SCREWS AND STUDS
817893A3
SHORT BLOCK (NOT SHOWN).
FA510010
CYLINDER W/CRANKCASE COVER, DOWEL PINS, SCREWS AND STUDS
817904A1
SHORT BLOCK (NOT SHOWN).
13
F1823
HEX CAP SCREW, 5/16 - 18 X 1
14
F8559
Палец
15
F31410
RETAINING RING, PISTON PIN
16
F174017
Палец поршневой
17
FS36016-5
ROD, CONNECTING W/CAP AND SCREWS
18
F286015-3
PISTONS
19
FA174260
PISTON RING SET (2 PER SET)
20
FA525241
CRANK PIN ROLLER BEARING CAGE (2 PER SET)
21
FA525228
ROLLER SET, CONNECTING ROD (26 PER SET)
22
F343014
BEARING, CRANKSHAFT LOWER MAIN
23
F141118
SEAL, CRANKSHAFT LOWER
24
F286154
GASKET, EXHAUST COVER
25
F286151
PLATE, EXHAUST
26
F286152
Защита
27
F487660-1
EXHAUST TUBE
28
F2008
HEX HD SCREW, 1/4 - 20 X 7/8
29
F286279-2
GASKET, CYLINDER MOUNTING
30
F1803
STOP NUT, 5/16 - 24
31
F286282
Шайба
32
F286445
LINK, MAGNETO SHAFT
33
817971A3
LEVER, MAGNETO CONTROL
34
F183813
BEARING, MAGNETO CONTROL LEVER
35
F1504
FILL HD SCREW, 1/4 - 20 X 1 1/4
36
F286509
LINK, THROTTLE CAM
37
F1107
FILL HD SCREW, 1/4 - 20 X 3/4
38
F1335
FILL HD SCREW, 5/16 - 18 X 1 1/4
39
F286440
STUD, MAGNETO CONTROL LEVER
40
F36634
SCREW, CONNECTING ROD
41
FA286155
MAIN BEARING LINER SET (2 PER SET)
42
F286571
ROLLER SET, MAIN BEARING (26 PER SET)
43
818047A3
CRANKSHAFT W/UPPER MAIN BEARING
44
F73082
RING, MAGNETO STATOR
45
F286277
GASKET, CRANKSHAFT BEARING CAGE
46
817753A1
CAGE, CRANKSHAFT BEARING W/SEAL
47
F346146
SEAL, CRANKSHAFT UPPER
48
F1111
FILL HD SCREW, 1/4 - 20 X 7/8
49
F84035-2
BEARING, INTERLOCK ROD
50
F84026
SWIVEL, INTERLOCK ROD BEARING
51
F1339
HEX NUT, 10 - 24
52
F492531
INTERLOCK ROD 9.9 H.P. MANUAL START
F510531
INTERLOCK ROD 9.9 H.P. C-D ALTERNATOR
53
F197813
BEARING, INTERLOCK LEVER
54
F492977
INTERLOCK LEVER 9.9 H.P. MANUAL START
F510977-1
INTERLOCK LEVER 9.9 H.P. C-D ALTERNATOR
55
F7008
STOP NUT, 1/4 - 20
56
F286772-1
HOSE CLAMP 9.9 H.P. MANUAL START
57
F429811
Водозаборная решетка
58
F461342
SEAL, DRIVESHAFT SPLINE
59
F286028-1
BEARING, CRANKSHAFT UPPER MAIN
61
F2040
HEX WASHER HD M. SCREW, 1/4 - 20 X 5/8
63
FG1005-1
Комплет прокладок
F18906
GASKET, CARBURETOR
F286154
Прокладка
F286159-1
GASKET, REED PLATE
F286223
GASKET, TRANSFER PORT
F286277
GASKET CRANKSHAFT BEARING CAGE
F286279-2
GASKET CYLINDER MOUNTING
F286529-3
Прокладка
F424168-1
Прокладка
F429472
GASKET CYLINDER DRAIN COVER
