Power Head для лодочных моторов Force H0082H79K (1979)

Москва и регионы России

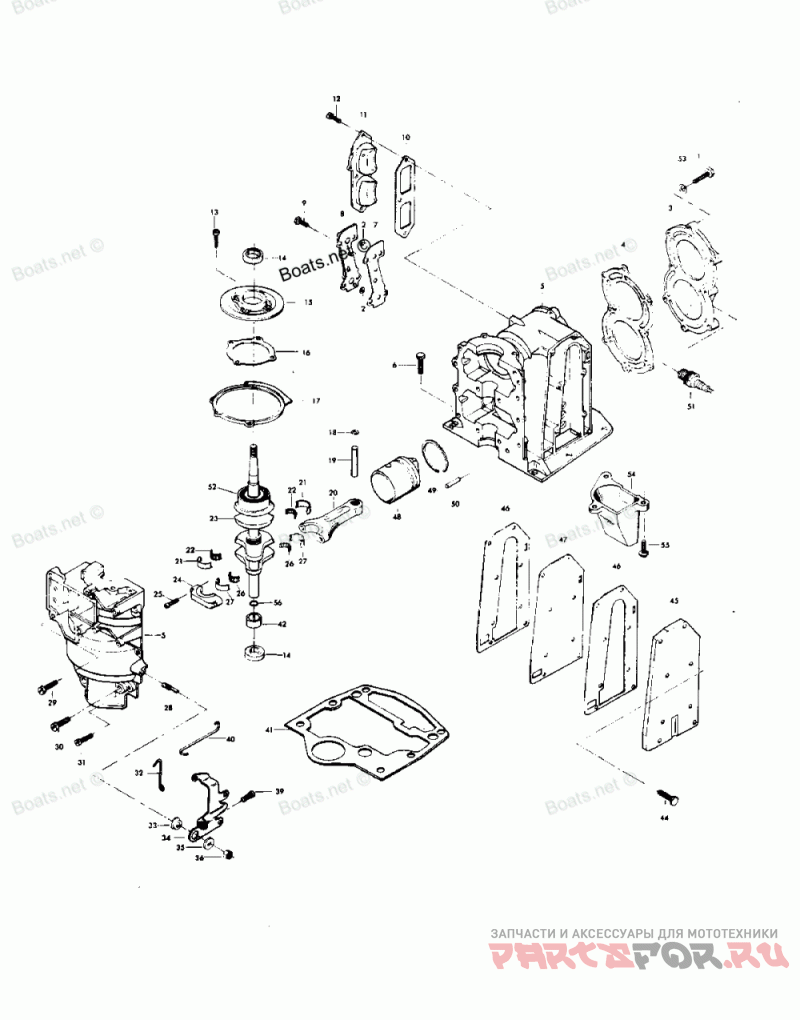

Power Head

Force H0082H79K

Power Head

#

oem код

название

цена

1

SCREW, CYLINDER HEAD

SCREW, CYLINDER HEAD

2

SCREENS, CYLINDER DRAIN

SCREENS, CYLINDER DRAIN

3

Головка цилиндра

Головка цилиндра

4

Прокладка головки блока цилиндров

Прокладка головки блока цилиндров

5

Цилиндр

Цилиндр

6

HEX HD CAP SCREW, 5/16 - 18 X 1

HEX HD CAP SCREW, 5/16 - 18 X 1

7

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER

8

CYLINDER DRAIN COVER W/CHECK VALVES AND SCREENS

CYLINDER DRAIN COVER W/CHECK VALVES AND SCREENS

9

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

10

GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

11

TRANSFER PORT COVER

TRANSFER PORT COVER

12

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

13

FILL HD SCREW, 1/4 - 20 X 7/8

FILL HD SCREW, 1/4 - 20 X 7/8

14

SEAL, CRANKSHAFT

SEAL, CRANKSHAFT

15

CAGE, CRANKSHAFT BEARING W/SEAL

CAGE, CRANKSHAFT BEARING W/SEAL

16

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

17

MAGNETO STATOR RING

MAGNETO STATOR RING

18

RETAINING RING, PISTON PIN

RETAINING RING, PISTON PIN

19

Палец поршневой

Палец поршневой

20

CONNECTING ROD W/CAP AND SCREWS

CONNECTING ROD W/CAP AND SCREWS

21

MAIN BEARING LINER SET (2 PER SET)

MAIN BEARING LINER SET (2 PER SET)

22

CENTER MAIN BEARING ROLLERS (26 PER SET)

CENTER MAIN BEARING ROLLERS (26 PER SET)

23

CRANKSHAFT W/UPPER MAIN BEARING

CRANKSHAFT W/UPPER MAIN BEARING

25

CONNECTING ROD SCREW

CONNECTING ROD SCREW

26

CONNECTING ROD, ROLLER SET (24 PER SET)

CONNECTING ROD, ROLLER SET (24 PER SET)

27

CONNECTING ROD LINER (2 PER SET)

CONNECTING ROD LINER (2 PER SET)

28

STUD, MAGNETO CONTROL LEVER

STUD, MAGNETO CONTROL LEVER

29

FILL HD SCREW, 1/4 - 20 X 1

FILL HD SCREW, 1/4 - 20 X 1

30

FILL HD SCREW, 5/16 - 18 X 1-1/4

FILL HD SCREW, 5/16 - 18 X 1-1/4

31

FILL HD SCREW, 1/4 - 20 X 3/4

FILL HD SCREW, 1/4 - 20 X 3/4

32

LINK, MAGNETO CONTROL ROD

LINK, MAGNETO CONTROL ROD

33

BEARING, MAGNETO CONTROL LEVER

BEARING, MAGNETO CONTROL LEVER

34

LEVER, MAGNETO CONTROL

LEVER, MAGNETO CONTROL

35

Шайба

Шайба

36

STOP NUT, 5/16 - 24

STOP NUT, 5/16 - 24

39

FILL HD SCREW, 1/4 - 20 X 1

FILL HD SCREW, 1/4 - 20 X 1

40

LINK, THROTTLE CAM

LINK, THROTTLE CAM

41

GASKET, CYLINDER MOUNTING

GASKET, CYLINDER MOUNTING

42

BEARING, CRANKSHAFT LOWER MAIN

BEARING, CRANKSHAFT LOWER MAIN

44

HEX HD SCREW, 1/4 - 20 X 7/8

HEX HD SCREW, 1/4 - 20 X 7/8

45

Защита

Защита

46

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

47

PLATE, EXHAUST

PLATE, EXHAUST

48

Поршень

Поршень

49

PISTON RING SET (3 PER SET)

PISTON RING SET (3 PER SET)

SHORT BLOCK (NOT SHOWN)

SHORT BLOCK (NOT SHOWN)

50

Палец

Палец

51

SPARK PLUG (L-4-J)

SPARK PLUG (L-4-J)

52

BEARING, CRANKSHAFT UPPER MAIN

BEARING, CRANKSHAFT UPPER MAIN

53

PLAIN WASHER

PLAIN WASHER

54

EXHAUST TUBE

EXHAUST TUBE

55

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

56

Уплотнение

Уплотнение

GASKET SET (NOT SHOWN)

GASKET SET (NOT SHOWN)

GASKET, CARBURETOR

GASKET, CARBURETOR

GASKET, CRANKSHAFT BEARING CAGE

GASKET, CRANKSHAFT BEARING CAGE

Прокладка

Прокладка

GASKET, REED PLATE

GASKET, REED PLATE

Прокладка

Прокладка

GASKET, TRANSFER PORT

GASKET, TRANSFER PORT

GASKET, CYLINDER MOUNTING

GASKET, CYLINDER MOUNTING

GASKET, LEG MOUNTING

GASKET, LEG MOUNTING

Прокладка

Прокладка

GASKET, CYLINDER DRAIN COVER

GASKET, CYLINDER DRAIN COVER
