Motor Leg для лодочных моторов Force H0082H79K (1979)

Москва и регионы России

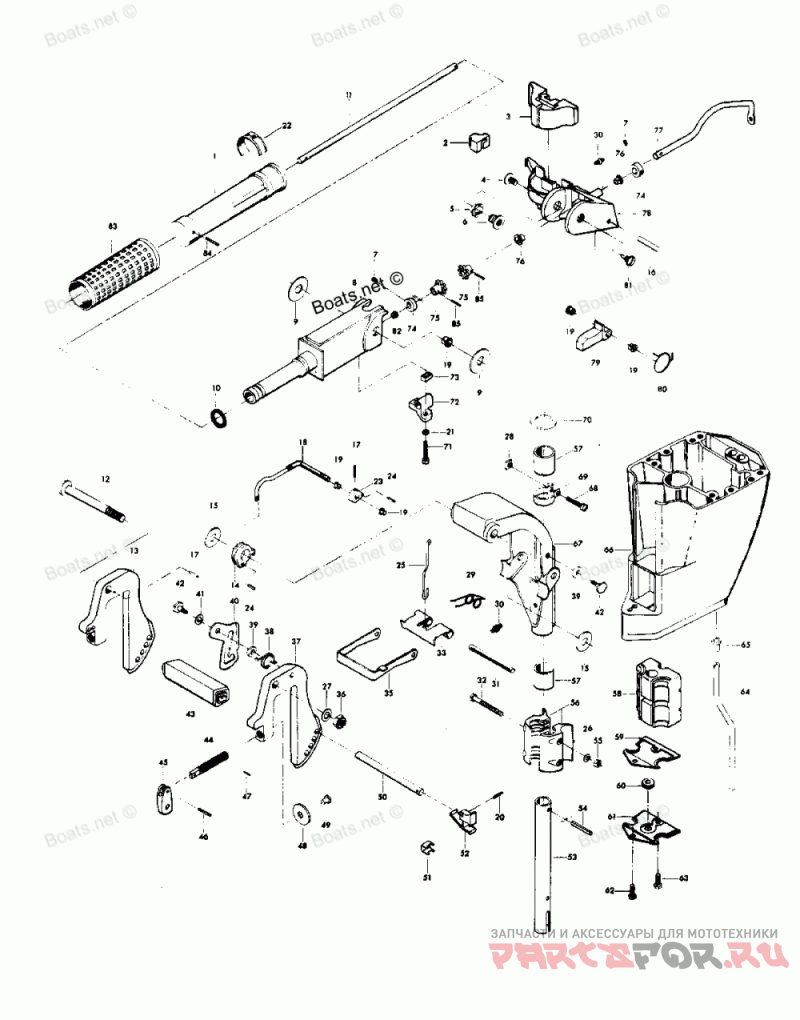

Motor Leg

Force H0082H79K

Motor Leg

#

oem код

название

цена

1

GRIP, STEERING HANDLE W/SLEEVE

GRIP, STEERING HANDLE W/SLEEVE

2

Амортизатор ударов

Амортизатор ударов

3

SHOCK MOUNT UPPER

SHOCK MOUNT UPPER

4

TRUSS HD SCREW, 5/16 - 18 X 5/8

TRUSS HD SCREW, 5/16 - 18 X 5/8

5

BEARING, STEERING HANDLE INSERT

BEARING, STEERING HANDLE INSERT

6

INSERT, STEERING HANDLE

INSERT, STEERING HANDLE

7

SOCKET HD SET SCREW, 1/4 - 28 X 3/16

SOCKET HD SET SCREW, 1/4 - 28 X 3/16

8

STEERING HANDLE

STEERING HANDLE

9

Шайба

Шайба

10

STEERING HANDLE GRIP DAMPENER

STEERING HANDLE GRIP DAMPENER

11

SHAFT, STEERING HANDLE

SHAFT, STEERING HANDLE

12

STERN BRACKET PIVOT BOLT

STERN BRACKET PIVOT BOLT

13

STERN BRACKET STARBOARD W/CLAMP SCREW AND FOOT

STERN BRACKET STARBOARD W/CLAMP SCREW AND FOOT

14

LEVER, REVERSE LOCK RELEASE

LEVER, REVERSE LOCK RELEASE

15

WASHER, STERN BRACKET

WASHER, STERN BRACKET

16

GROOVE PIN

GROOVE PIN

17

Пружинный Штифт

Пружинный Штифт

18

LEVER REVERSE LOCK INTERMEDIATE

LEVER REVERSE LOCK INTERMEDIATE

19

Подшипник

Подшипник

20

Пружинный Штифт

Пружинный Штифт

21

TOOTH LOCKWASHER

TOOTH LOCKWASHER

22

STEERING HANDLE INDICATOR

STEERING HANDLE INDICATOR

23

LEVER, REVERSE LOCK

LEVER, REVERSE LOCK

24

Пружинный Штифт

Пружинный Штифт

25

LINK, REVERSE LOCK LEVER

LINK, REVERSE LOCK LEVER

26

SPRING LOCKWASHER

SPRING LOCKWASHER

27

PLAIN WASHER

PLAIN WASHER

28

NUT, 1/4 - 20

NUT, 1/4 - 20

29

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK

30

Масленка

Масленка

31

GROOVE PIN

GROOVE PIN

32

HEX BOLT, 1/4 - 20 X 2-3/8

HEX BOLT, 1/4 - 20 X 2-3/8

33

REVERSE LOCK

REVERSE LOCK

35

BRACKET SHALLOW WATER DRIVE

BRACKET SHALLOW WATER DRIVE

36

STOP NUT, 3/8 - 16

STOP NUT, 3/8 - 16

37

STERN BRACKET PORT W/CLAMP SCREW, AND FOOT

STERN BRACKET PORT W/CLAMP SCREW, AND FOOT

38

SPRING, TILT LOCK

SPRING, TILT LOCK

39

SPACER, TILT LOCK

SPACER, TILT LOCK

40

TILT LOCK

TILT LOCK

41

BOWED SPRING WASHER

BOWED SPRING WASHER

42

TILT LOCK PIVOT

TILT LOCK PIVOT

43

CARRYING HANDLE

CARRYING HANDLE

44

CLAMP SCREW

CLAMP SCREW

45

HANDLE, CLAMP SCREW

HANDLE, CLAMP SCREW

46

Пружинный Штифт

Пружинный Штифт

47

Пружинный Штифт

Пружинный Штифт

48

CLAMP SCREW FOOT

CLAMP SCREW FOOT

49

STUD CLAMP SCREW

STUD CLAMP SCREW

50

LOCK BAR W/HANDLE AND SPRING

LOCK BAR W/HANDLE AND SPRING

51

SPRING, LOCK BAR HANDLE

SPRING, LOCK BAR HANDLE

52

LOCK BAR HANDLE

LOCK BAR HANDLE

53

KING PIN

KING PIN

54

Пружинный Штифт

Пружинный Штифт

55

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

56

BRACKET SHOCK MOUNT LOWER

BRACKET SHOCK MOUNT LOWER

57

BEARING, SWIVEL BRACKET

BEARING, SWIVEL BRACKET

58

SHOCK MOUNT LOWER

SHOCK MOUNT LOWER

59

GASKET, SHOCK MOUNT PLATE

GASKET, SHOCK MOUNT PLATE

60

SEAL, SHOCK MOUNT PLATE

SEAL, SHOCK MOUNT PLATE

61

PLATE, SHOCK MOUNT LOWER

PLATE, SHOCK MOUNT LOWER

62

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

63

HEX CAP SCREW, 1/4 - 20 X 1/2

HEX CAP SCREW, 1/4 - 20 X 1/2

64

WATER LINE

WATER LINE

65

SEAL, INLET WATER LINE UPPER

SEAL, INLET WATER LINE UPPER

66

MOTOR LEG

MOTOR LEG

67

SWIVEL BRACKET

SWIVEL BRACKET

68

FILL HD SCREW, 1/4 - 20 X 1-3/8

FILL HD SCREW, 1/4 - 20 X 1-3/8

69

STEERING FRICTION CLAMP

STEERING FRICTION CLAMP

70

WASHER, SWIVEL BRACKET

WASHER, SWIVEL BRACKET

71

FILL HD SCREW, 10 - 24 X 7/8

FILL HD SCREW, 10 - 24 X 7/8

72

BEARING, STEERING HANDLE

BEARING, STEERING HANDLE

73

WEDGE, STEERING HANDLE

WEDGE, STEERING HANDLE

74

RETAINER W/SET SCREW

RETAINER W/SET SCREW

75

STEERING HANDLE GEAR

STEERING HANDLE GEAR

76

Подшипник

Подшипник

77

SHAFT, MAGNETO CONTROL

SHAFT, MAGNETO CONTROL

78

STEERING ARM

STEERING ARM

79

STOP, STEERING HANDLE

STOP, STEERING HANDLE

80

SPRING, STEERING HANDLE STOP

SPRING, STEERING HANDLE STOP

81

SCREW, STEERING HANDLE PIVOT

SCREW, STEERING HANDLE PIVOT

82

Подшипник

Подшипник

83

Гильца

Гильца

84

Пружинный Штифт

Пружинный Штифт

85

Пружинный Штифт

Пружинный Штифт

-

DECAL, TILT RELEASE (NOT SHOWN)

DECAL, TILT RELEASE (NOT SHOWN)
