Engine Cover And Support Plate для лодочных моторов Force H0071H79A (1979)

Москва и регионы России

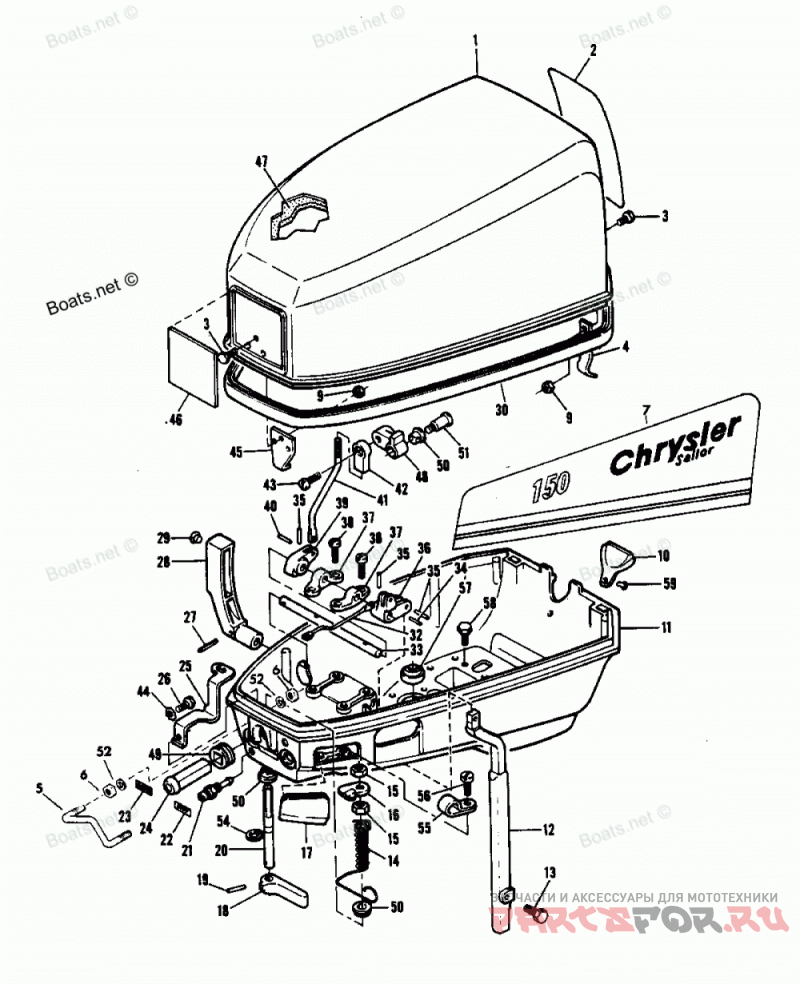

Engine Cover And Support Plate

Force H0071H79A

Engine Cover And Support Plate

#

oem код

название

цена

1

ENGINE COVER W/PACKING, REAR RETAINER AND LATCH BRACKET

ENGINE COVER W/PACKING, REAR RETAINER AND LATCH BRACKET

-

ENGINE COVER COMPLETE

ENGINE COVER COMPLETE

2

DECAL ENGINE COVER REAR

DECAL ENGINE COVER REAR

3

FILL HD SCREW, 10 - 24 X 1/2

FILL HD SCREW, 10 - 24 X 1/2

4

RETAINER ENGINE COVER W/NUTS AND SCREWS

RETAINER ENGINE COVER W/NUTS AND SCREWS

5

GUIDE STARTER ROPE

GUIDE STARTER ROPE

6

HEX NUT

HEX NUT

7

DECAL "CHRYSLER" - STARBOARD

DECAL "CHRYSLER" - STARBOARD

-

DECAL "CHRYSLER" - PORT

DECAL "CHRYSLER" - PORT

9

ELASTIC STOP NUT, 10 - 24

ELASTIC STOP NUT, 10 - 24

10

COVER SUPPORT PLATE REAR

COVER SUPPORT PLATE REAR

11

SUPPORT PLATE W/EYELET

SUPPORT PLATE W/EYELET

12

ROD GEAR SHIFT UPPER

ROD GEAR SHIFT UPPER

13

HEX HD SCREW, 10 - 24 X 5/8

HEX HD SCREW, 10 - 24 X 5/8

14

SPRING LATCH SHAFT

SPRING LATCH SHAFT

15

NUT, 5/16 - 18

NUT, 5/16 - 18

16

CAM COVER LATCH

CAM COVER LATCH

17

GROMMET REMOTE THROTTLE CABLE

GROMMET REMOTE THROTTLE CABLE

-

GROMMET LIGHTING COIL WIRE

GROMMET LIGHTING COIL WIRE

18

HANDLE LATCH

HANDLE LATCH

19

SPRING PIN, 1/8 X 5/8

SPRING PIN, 1/8 X 5/8

20

SHAFT COVER LATCH

SHAFT COVER LATCH

21

BUSHING FUEL LINE

BUSHING FUEL LINE

22

DECAL STOP - U.S.A.

DECAL STOP - U.S.A.

-

DECAL STOP - CANADA

DECAL STOP - CANADA

23

DECAL CHOKE - U.S.A.

DECAL CHOKE - U.S.A.

-

DECAL CHOKE - CANADA

DECAL CHOKE - CANADA

24

CHOKE KNOB

CHOKE KNOB

25

LINK CHOKE KNOB

LINK CHOKE KNOB

26

HEX HD SCREW, 10 - 24 X 3/8

HEX HD SCREW, 10 - 24 X 3/8

27

SPRING PIN, 1/8 X 13/16

SPRING PIN, 1/8 X 13/16

28

Вал переключения скоростей

Вал переключения скоростей

29

RIVET GEAR SHIFT HANDLE

RIVET GEAR SHIFT HANDLE

30

ENGINE COVER PACKING

ENGINE COVER PACKING

32

LINK STATOR INTERLOCK

LINK STATOR INTERLOCK

33

SHAFT GEAR SHIFT LEVER

SHAFT GEAR SHIFT LEVER

34

SPRING PIN, 3/32 X 1/2

SPRING PIN, 3/32 X 1/2

35

SPRING PIN, 1/8 X 5/8

SPRING PIN, 1/8 X 5/8

36

LEVER GEAR SHIFT

LEVER GEAR SHIFT

37

BEARING, SHIFT LEVER SHAFT

BEARING, SHIFT LEVER SHAFT

38

FILL HD SCREW, 1/4 - 20 X 1/2

FILL HD SCREW, 1/4 - 20 X 1/2

39

LEVER SHIFT INTERLOCK

LEVER SHIFT INTERLOCK

40

SPRING PIN, 1/8 X 1/2

SPRING PIN, 1/8 X 1/2

41

ROD SHIFT INTERLOCK

ROD SHIFT INTERLOCK

42

BEARING INTERLOCK ROD

BEARING INTERLOCK ROD

43

SCREW SHOULDER

SCREW SHOULDER

44

LOCKWASHER, #10

LOCKWASHER, #10

45

BRACKET COVER LATCH W/SCREWS & NUTS

BRACKET COVER LATCH W/SCREWS & NUTS

46

DECAL ENGINE COVER FRONT

DECAL ENGINE COVER FRONT

47

BLANKET TOP AND SIDES

BLANKET TOP AND SIDES

48

LEVER SHIFT INTERLOCK

LEVER SHIFT INTERLOCK

49

GROMMET, CHOKE ROD

GROMMET, CHOKE ROD

50

BEARING (NYLINER)

BEARING (NYLINER)

51

Винт

Винт

52

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

54

Прокладка

Прокладка

55

CLAMP LEAD WIRE

CLAMP LEAD WIRE

56

SLOTTED FILL HD SCREW, 1/4 - 20 X 1/2

SLOTTED FILL HD SCREW, 1/4 - 20 X 1/2

57

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

58

HEX HD SCREW, 1/4 - 20 X 1/2

HEX HD SCREW, 1/4 - 20 X 1/2

59

RIVET, SUPPORT PLATE COVER

RIVET, SUPPORT PLATE COVER
