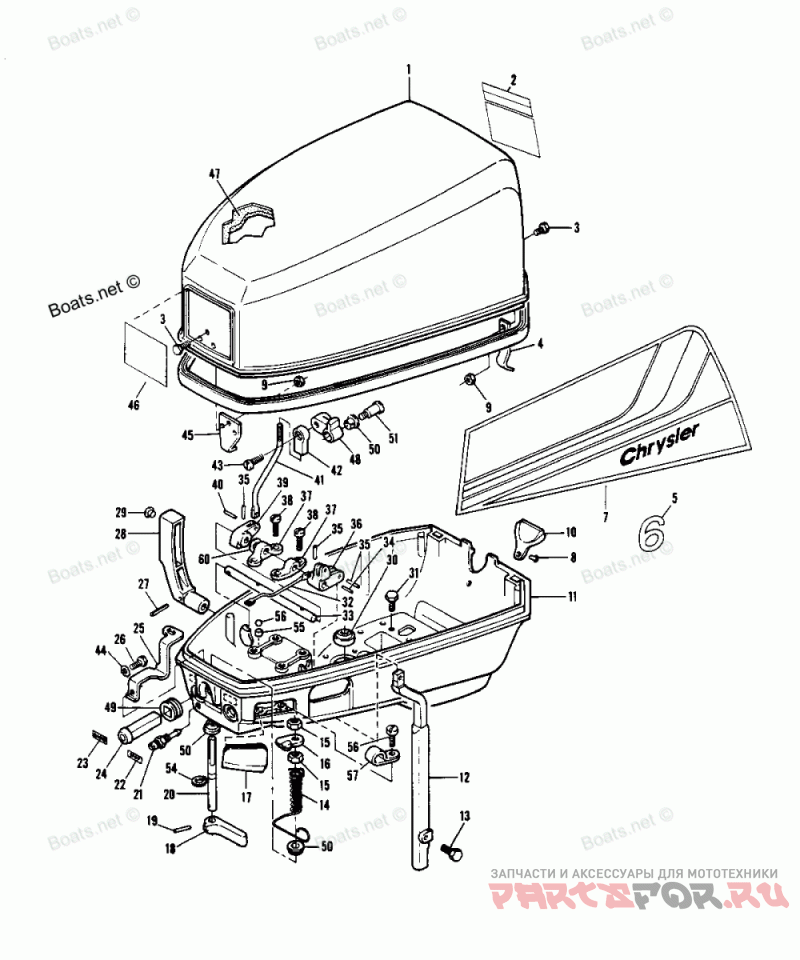

Engine Cover And Support Plate

Force H0067H79C

Engine Cover And Support Plate

#

oem код

название

цена

1

ENGINE COVER W/PACKING, REAR RETAINER

ENGINE COVER W/PACKING, REAR RETAINER

-

ENGINE COVER COMPLETE.

ENGINE COVER COMPLETE.

2

DECAL, ENGINE COVER, REAR

DECAL, ENGINE COVER, REAR

3

SCREW, FILL HD. - 10 - 24 X 1/2

SCREW, FILL HD. - 10 - 24 X 1/2

4

RETAINER, ENGINE COVER, W/NUTS & SCREWS

RETAINER, ENGINE COVER, W/NUTS & SCREWS

5

NUMERAL "6"

NUMERAL "6"

7

DECAL ENGINE COVER, PORT

DECAL ENGINE COVER, PORT

DECAL ENGINE COVER, STARBOARD

DECAL ENGINE COVER, STARBOARD

9

ELASTIC STOP NUT, 10 - 24

ELASTIC STOP NUT, 10 - 24

10

COVER SUPPORT PLATE REAR

COVER SUPPORT PLATE REAR

11

SUPPORT PLATE W/EYELET (62H9L)

SUPPORT PLATE W/EYELET (62H9L)

SUPPORT PLATE W/EYELET (67H9C)

SUPPORT PLATE W/EYELET (67H9C)

12

ROD GEAR SHIFT UPPER

ROD GEAR SHIFT UPPER

13

HEX HD SCREW, 10 - 24 X 5/8

HEX HD SCREW, 10 - 24 X 5/8

14

SPRING LATCH SHAFT

SPRING LATCH SHAFT

15

NUT, 5/16 - 18

NUT, 5/16 - 18

16

CAM COVER LATCH

CAM COVER LATCH

17

GROMMET REMOTE THROTTLE CABLE

GROMMET REMOTE THROTTLE CABLE

GROMMET LIGHTING COIL WIRE (67H9C)

GROMMET LIGHTING COIL WIRE (67H9C)

18

HANDLE LATCH

HANDLE LATCH

19

SPRING PIN, 1/8 X 5/8

SPRING PIN, 1/8 X 5/8

20

SHAFT COVER LATCH

SHAFT COVER LATCH

21

BUSHING FUEL LINE

BUSHING FUEL LINE

22

DECAL STOP

DECAL STOP

23

DECAL CHOKE

DECAL CHOKE

24

CHOKE KNOB

CHOKE KNOB

25

LINK CHOKE KNOB

LINK CHOKE KNOB

26

HEX HD SCREW, 10 - 24 X 3/8

HEX HD SCREW, 10 - 24 X 3/8

27

SPRING PIN, 1/8 X 13/16

SPRING PIN, 1/8 X 13/16

28

Вал переключения скоростей

Вал переключения скоростей

29

RIVET GEAR SHIFT HANDLE

RIVET GEAR SHIFT HANDLE

30

ENGINE COVER PACKING

ENGINE COVER PACKING

32

LINK STARTER INTERLOCK

LINK STARTER INTERLOCK

33

SHAFT GEAR SHIFT LEVER

SHAFT GEAR SHIFT LEVER

34

SPRING PIN, 3/32 X 1/2

SPRING PIN, 3/32 X 1/2

35

SPRING PIN, 1/8 X 5/8

SPRING PIN, 1/8 X 5/8

36

LEVER GEAR SHIFT

LEVER GEAR SHIFT

37

BEARING SHIFT LEVER SHAFT

BEARING SHIFT LEVER SHAFT

38

FILL HD SCREW, 1/4 - 20 X 1/2

FILL HD SCREW, 1/4 - 20 X 1/2

39

LEVER SHIFT INTERLOCK

LEVER SHIFT INTERLOCK

40

SPRING PIN, 1/8 X 1/2

SPRING PIN, 1/8 X 1/2

41

ROD SHIFT INTERLOCK

ROD SHIFT INTERLOCK

42

BEARING INTERLOCK ROD

BEARING INTERLOCK ROD

43

SCREW SHOULDER

SCREW SHOULDER

44

LOCKWASHER #10

LOCKWASHER #10

45

BRACKET COVER LATCH W/SCREWS & NUTS

BRACKET COVER LATCH W/SCREWS & NUTS

46

DECAL ENGINE COVER FRONT

DECAL ENGINE COVER FRONT

47

BLANKET TOP & SIDES

BLANKET TOP & SIDES

48

LEVER SHIFT INTERLOCK

LEVER SHIFT INTERLOCK

49

GROMMET, CHOKE ROD

GROMMET, CHOKE ROD

50

BEARING (NYLINER)

BEARING (NYLINER)

51

Винт

Винт

52

PAD SHIFT DETENT

PAD SHIFT DETENT

53

BALL CHECK

BALL CHECK

54

Прокладка

Прокладка

55

CLAMP LEAD WIRE

CLAMP LEAD WIRE

56

SLOTTED FILL HD SCREW, 1/4 - 20 X 1/2

SLOTTED FILL HD SCREW, 1/4 - 20 X 1/2

57

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

58

HEX HD SCREW, 1/4 - 20 X 1/2

HEX HD SCREW, 1/4 - 20 X 1/2

59

RIVET, SUPPORT PLATE COVER

RIVET, SUPPORT PLATE COVER

60

BOWED SPRING LOCKWASHER

BOWED SPRING LOCKWASHER
