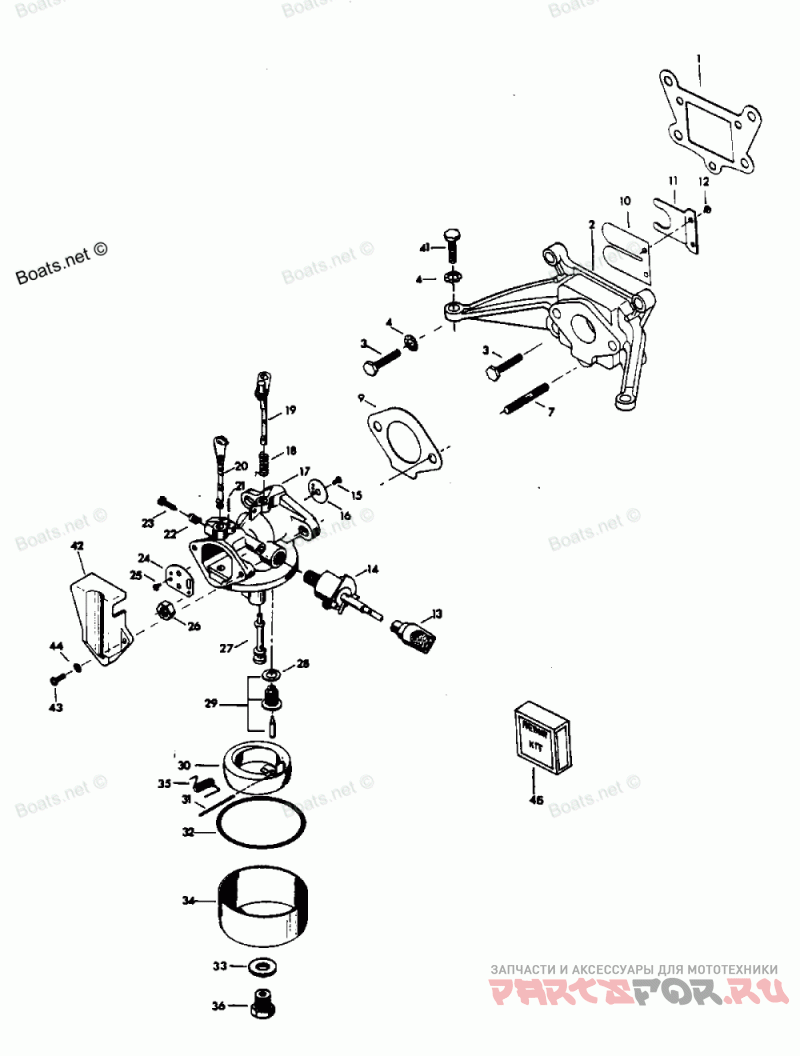

Carburetor & Reed Plate

Force H0047B79F

Carburetor & Reed Plate

#

oem код

название

цена

1

GASKET, CARBURETOR ADAPTER

GASKET, CARBURETOR ADAPTER

2

CARBURETOR ADAPTER W/STUDS, REED AND STOP

CARBURETOR ADAPTER W/STUDS, REED AND STOP

3

HEX CAP SCREW, 1/4 - 20 X 1

HEX CAP SCREW, 1/4 - 20 X 1

4

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

7

STUD, CARBURETOR

STUD, CARBURETOR

9

GASKET, CARBURETOR

GASKET, CARBURETOR

10

REED

REED

11

REED STOP

REED STOP

12

ROUND HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

ROUND HD SCREW W/LOCKWASHER, 6 - 32 X 5/16

13

KNOB, FUEL SHUT-OFF

KNOB, FUEL SHUT-OFF

14

VALVE, FUEL SHUT-OFF

VALVE, FUEL SHUT-OFF

15

Винт

Винт

16

THROTTLE VALVE

THROTTLE VALVE

17

CARBURETOR COMPLETE

CARBURETOR COMPLETE

18

SPRING, THROTTLE RETURN

SPRING, THROTTLE RETURN

19

Вал дросселя

Вал дросселя

20

CHOKE SHAFT

CHOKE SHAFT

21

SPRING, CHOKE STOP

SPRING, CHOKE STOP

22

SPRING, IDLE ADJUSTMENT NEEDLE

SPRING, IDLE ADJUSTMENT NEEDLE

23

NEEDLE, IDLE

NEEDLE, IDLE

24

CHOKE VALVE

CHOKE VALVE

25

SCREW, CHOKE VALVE

SCREW, CHOKE VALVE

26

HEX NUT, 1/4 - 20

HEX NUT, 1/4 - 20

27

Наконечник

Наконечник

28

Прокладка уплотнительная клапана

Прокладка уплотнительная клапана

29

VALVE, SEAT AND GASKET ASSEMBLY

VALVE, SEAT AND GASKET ASSEMBLY

30

Поплавок

Поплавок

31

FLOAT PIN

FLOAT PIN

32

GASKET, FUEL BOWL

GASKET, FUEL BOWL

33

GASKET, BOWL RETAINER

GASKET, BOWL RETAINER

34

FUEL BOWL

FUEL BOWL

35

SPRING, FLOAT SUPPORT

SPRING, FLOAT SUPPORT

36

JET ASSEMBLY (.038) STD. SEA LEVEL - 3000 FT.

JET ASSEMBLY (.038) STD. SEA LEVEL - 3000 FT.

JET ASSEMBLY (.037) OPT. 3000 FT. - 5000 FT.

JET ASSEMBLY (.037) OPT. 3000 FT. - 5000 FT.

JET ASSEMBLY (.036) OPT. 5000 FT. - 7000 FT.

JET ASSEMBLY (.036) OPT. 5000 FT. - 7000 FT.

JET ASSEMBLY (.035) OPT. 7000 FT. AND UP

JET ASSEMBLY (.035) OPT. 7000 FT. AND UP

41

HEX CAP SCREW, 1/4 - 20 X 7/8

HEX CAP SCREW, 1/4 - 20 X 7/8

42

CARBURETOR COVER

CARBURETOR COVER

43

FILL HD. SCREW, 8 - 32 X 3/8

FILL HD. SCREW, 8 - 32 X 3/8

44

LOCKWASHER, INT. TOOTH

LOCKWASHER, INT. TOOTH

45

REPAIR KIT

REPAIR KIT

-

Комплет прокладок

Комплет прокладок
