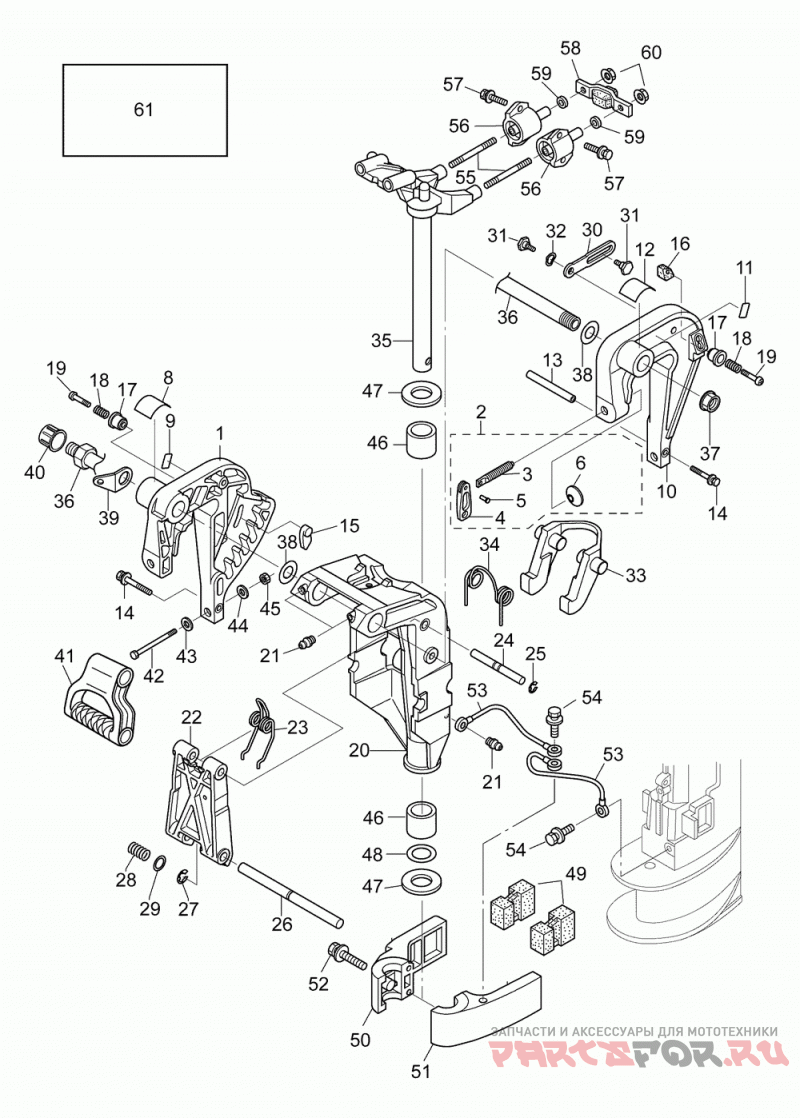

16-4_stern & swivel bracket (el models)

Evinrude 9.8 PORTABLE B10EL4INS

Evinrude
#oem кодцена
1
5040360
Clamp Bracket (r) Starboard
2
5040358
Clamp Screw Kit
3
5040318
Clamp Screw
4
5040045
Clamp Screw Handle
5
5040769
Заклёпка
6
5040033
Clamp Screw Pad (010 Per Pack)
7
5040770
Shoulder Bolt
8
5040354
Trim Position Dec
9
5040341
Low Tilt Limit Dec
10
5040361
Clamp Bracket (l) Port
11
5040340
Tilt Lock Decal
12
5040342
Co-pilot Decal Tpl, Tpx
13
5040321
Distance Piece
14
5041564
Болт
15
5040322
Trim Setting Plate
16
5040323
Tilt Lock Piece
17
5040329
Ручка
18
5041475
Пружина
19
5041611
Винт
20
5040362
Swivel Bracket
21
5040055
Масленка
22
5040330
Tilt Stopper Body
23
5040324
Пружина
24
5040331
Tilt Stop Shft Up
25
5041682
Е-Кольцо
26
5040332
Tilt Stop Shft Low
27
5041683
Е-Кольцо
28
5040333
Пружина
29
5040032
Washer (010 Per Pack)
30
5040328
Tilt Stopper (l) Port
31
5040327
Болт
32
5041679
Упругая Шайба
33
5040337
Reverse Lock
34
5040336
Rev Lock Spring
35
5040357
Steering Shft Assy
36
5040457
Shaft Ay, Swvl Brkt Bracket Bolt
37
5040069
Nylon Nut
38
5040320
Washer Nylon?
39
5040319
Пластина
40
5040070
Cap Nut Tpl, Tpx (010 Per Pack)
41
5040317
Carrying Handle
42
5041555
Bolt Tpl, Tpx
43
5041669
Шайба
44
5041492
Шайба
45
5041655
Nylon Nut
46
5040092
Втулка
47
5040093
Thrust Plate Upper
48
5040091
O-ring (010 Per Pack)
49
5041329
Rubber Mount Lower
50
5041412
Mount Bracket (r) Starboard
51
5041413
Mount Bracket (l) Port
52
5041566
Болт
53
5040252
Ground Strap Drive Shaft Housing - Mount Bracket
54
5041557
Болт
55
5041330
Шпилька
56
5041405
Rubber Mount Upper
57
5041573
Болт
58
5041332
Damper (upper)
59
5041669
Шайба
60
5041331
Гайка
61
5041450
Rigging Bolt Set Tpl, Tpx
