  5. E10RV4SIC 4-stroke, rope start, tiller, 15 in shaft, wht

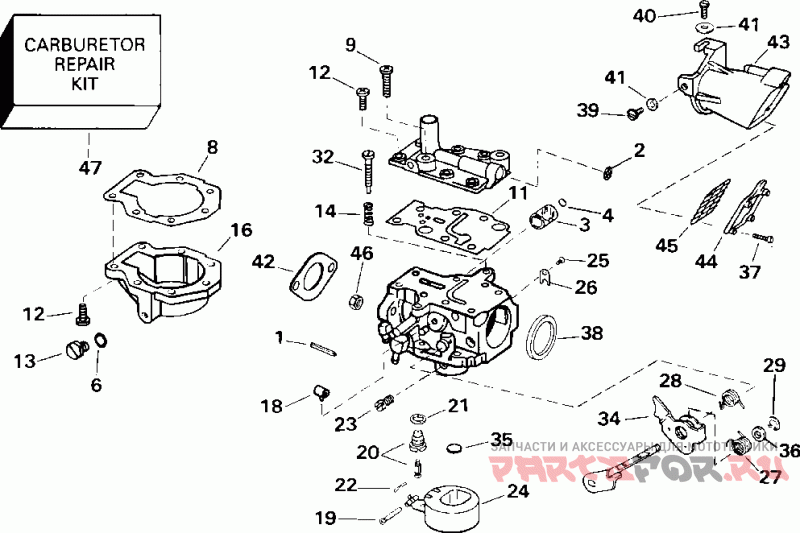

Carburetor - 9.9 hp

Evinrude E10RV4SIC 4-stroke, rope start, tiller, 15 in shaft, wht

Evinrude
#oem кодцена
1
0314575
Палец
2
0333695
Screen ((also Available In Carburetor Repair Kit.) )
3
0437060
Ролик
4
0324678
Кольцо уплотнительное
6
0303630
Washer, Fiber ((also Available In Carburetor Repair Kit.) )
8
0338882
Gasket ((also Available In Carburetor Repair Kit.) )
9
0341474
Винт
11
0341501
Gasket ((also Available In Carburetor Repair Kit.) )
12
0908045
Винт
13
0330057
Винт
14
0332576
Пружина
16
0339321
Поплавковая камера
18
0342405
Cap, Restrictor.059
19
0302661
Pin ((also Available In Carburetor Repair Kit.) )
20
0396522
Float Valve & Seat ((also Available In Carburetor Repair Kit.) )
21
0301996
Washer ((also Available In Carburetor Repair Kit.) )
22
0336842
Clip, Spring ((also Available In Carburetor Repair Kit.) )
23
0317473
Orifice Plug#30
24
0396514
Float&arm Ay ((also Available In Carburetor Repair Kit.) )
25
0330284
Screw ((9.9 Rope Models. 9.9 Tiller Electric Models.) )
26
0330285
Retaining Clip ((9.9 Rope Models. 9.9 Tiller Electric Models.) )
27
0341561
Spring ((9.9 Rope Models. 9.9 Tiller Electric Models.) )
28
0319023
Spring ((9.9 Rope Models. 9.9 Tiller Electric Models.) )
29
0202850
Прокладка
32
0342625
Винт
34
0330312
Lever ((9.9 Rope Models. 9.9 Tiller Electric Models.) )
35
0316991
Expansion Plug ((also Available In Carburetor Repair Kit.) )
36
0330995
Washer ((9.9 Rope Models. 9.9 Tiller Electric Models.) )
37
0337353
Винт
38
0339192
Seal, Air Silencer
39
0337356
Винт
40
0337357
Винт
41
0303715
Шайба
42
0318932
Gasket 5pk ((also Available In Carburetor Repair Kit.) )
43
0338914
Horn, Air Inlet
44
0341402
Седло
45
0340009
Screen, Air Horn
46
0337415
Гайка
47
0439504
Рем.компл.Карбюратора
