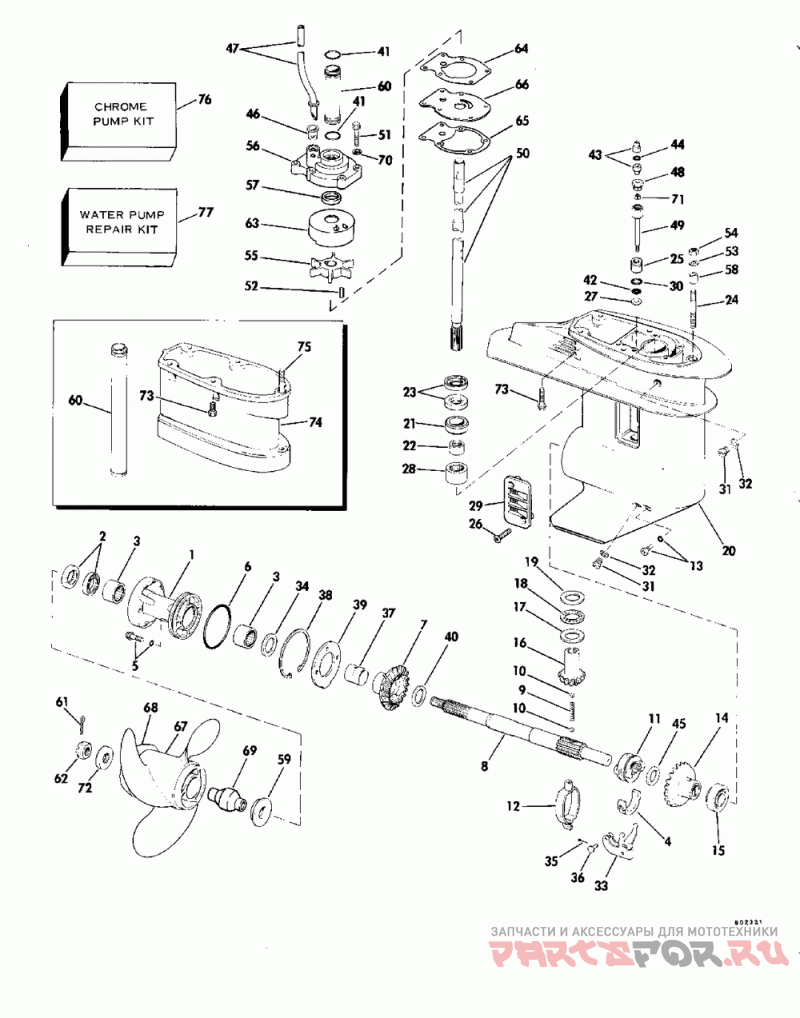

Gearcase - 35

Evinrude E35TCSM

Evinrude
#oem кодцена
1
5008160
Корпус
2
0321453
Сальник
3
0376856
Brg Ay, Needle
4
0321512
Cradle Clutch Dog
5
0319743
Sst Screw
6
0338518
Уплотнительное кольцо
7
0322080
Gear Rev 14:27
8
0386418
Ff Prop Shaft Ay
9
0323278
Spring-detent
10
0316506
Шарик фиксирующий
11
0319565
Ff Shifter C Dog
12
0390023
Yoke & Connector
13
0308376
Винт
14
0388125
Gear & Bushng, Fwd
15
0386186
Roller Brg Ay
16
0322079
Pinion Gear, 14:27
17
0322688
Thrust Washer-lwr
18
0388027
Thrust Brg Ay
19
0319667
Ff Thrust Washer
20
0392987
Поршень комплект (увел1,0)
21
0322018
Bearing Hsg Dshaft
22
0386473
Подшипник
23
0321928
Oil Ret Brg Hsg Ds
24
0320173
Ff Stud
25
0326361
Втулка
26
0325539
Винт
27
0321738
Шайба
28
0376856
Brg Ay, Needle
29
0328261
Поршень комплект (увел1,0)
30
0303347
Кольцо
31
0307551
Пробка сливная
32
0311598
Washer-10 Pk
33
0320118
Поршень комплект (увел1,0)
34
0319684
Ff Thrust Washer
35
0306376
Шплинт
36
0302504
Штифт
37
0319635
Ff Bushing Rev Gr
38
0319747
Ff Retaining Ring
39
0319746
Ff Retainer Plate
40
0319685
Поршень комплект (увел1,0)
41
0311338
O Ring ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
42
0301877
Кольцо
43
0391652
Scraper&o-ring
44
0326956
O-ring ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
45
0319686
Ff Thrust Washer
46
0302497
Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
47
0322077
Water Tube Std
47
0322078
Поршень комплект (увел1,0)
48
0325624
Connctr, Shft Rod
49
0434775
Kit Ay, Shift Rod
50
0323261
Вертикальный вал 15"
50
0323262
Driveshaft 20"
51
0324960
Screw ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
52
0300611
Dowel ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
53
0306470
Стопорная шайба
53
0319150
Стопорная шайба
54
0306422
Гайка
55
0395289
Imp & Key ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
56
0393631
Impeller Hsg Ay
57
0321786
Seal Prop Shaft ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
58
0319785
Втулка
59
0319890
Ff Thrust Bushing
60
0326692
Поршень комплект (увел1,0)
60
0326693
Spacer, Long
61
0320785
Ff Cotter Pin 5pk
62
0319891
Ff Prop Nut
63
0328751
Cup, Imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
64
0325535
Gasket ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
65
0325537
Gasket ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
66
0327704
Plate-impeller Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
67
0387320
Al Prop 35hp 7p
67
0391064
Prop, Al 10x17
67
0765049
Prop, Al 10.5x11 Rh
67
0778863
Prop, Al/10.3x13
67
0765048
Prop, Al 11 X 9 Rh
67
0765176
Prop, Ss-10x11 3bld
67
0387526
Поршень комплект (увел1,0)
67
0388866
Поршень комплект (увел1,0)
67
0390731
Поршень комплект (увел1,0)
68
0332542
Converging Ring
69
0386638
Поршень комплект (увел1,0)
70
0328702
Washer ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)
71
0325625
Keeper
72
0323943
Spacer Prop Nut
73
0909533
Screw-pivot Cap
73
0333676
Винт
74
0392450
Поршень комплект (увел1,0)
75
0320173
Ff Stud
76
0394415
Поршень комплект (увел1,0)
77
0393630
Wtr Pump Kit
317178
0317178
Уплотнение
325541
0325541
Shift Rod-lng ( Not Shown)
390383
0390383
Поршень комплект (увел1,0)
390855
0392454
( Not Shown)
