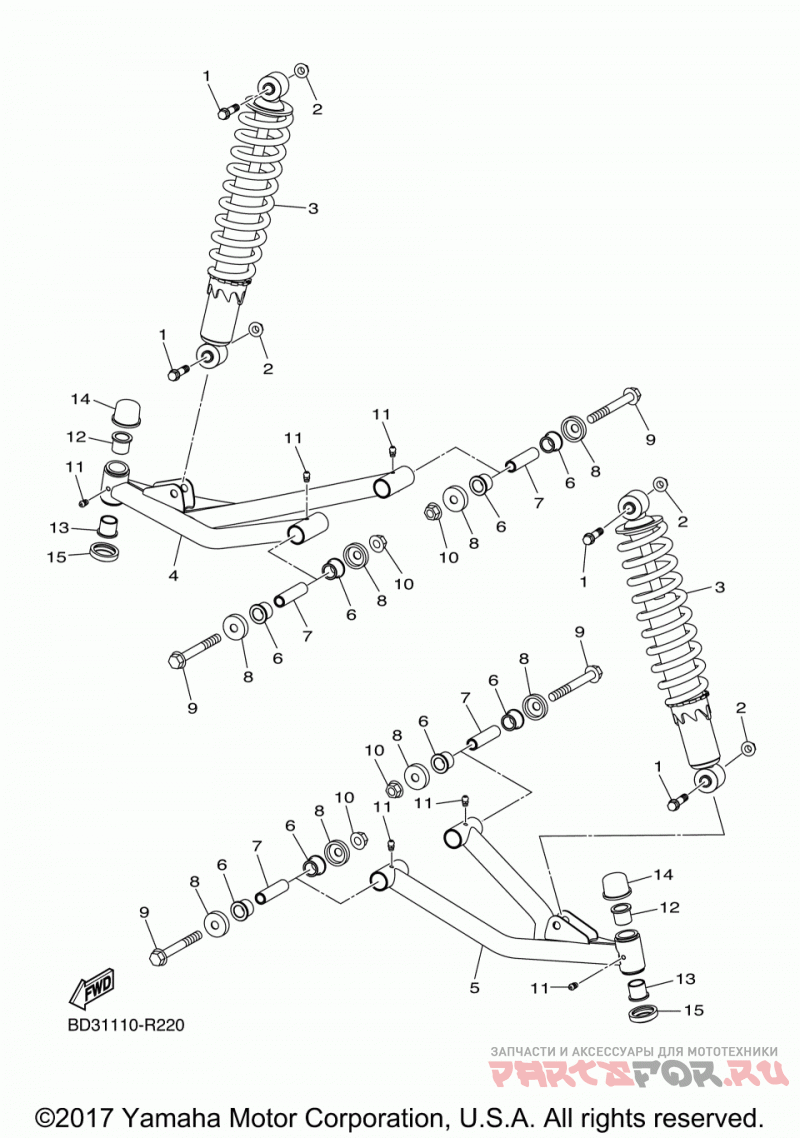

Передняя подвеска колес
Yamaha RAPTOR 90 (YFM09RYXJL/YFM09RYXJW)
| # | oem код | название | цена |
|---|---|---|---|
1 | BD3-F4834-10-00 Болт | Болт | |
2 | BD3-F3834-10-00 NUT 2 | NUT 2 | |
3 | BD3-F3350-10-00 Амортизатор | Амортизатор | |
4 | BD3-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT) | FRONT LOWER ARM COMP. (RIGHT) | |
5 | BD3-F3570-00-00 FRONT LOWER ARM COMP. (LEFT) | FRONT LOWER ARM COMP. (LEFT) | |
6 | BD3-F3526-00-00 .BUSH | .BUSH | |
7 | BD3-F3364-00-00 Манжета | Манжета | |
8 | BD3-F3517-00-00 Крышка | Крышка | |
9 | BD3-F7117-10-00 BOLT, MAIN STAND | BOLT, MAIN STAND | |
10 | BD3-F3834-10-00 NUT 2 | NUT 2 | |
11 | BD3-F135J-10-00 .NIPPLE | .NIPPLE | |
12 | BD3-F639L-00-00 .BUSH 1 | .BUSH 1 | |
13 | BD3-F639M-00-00 .BUSH 2 | .BUSH 2 | |
14 | BD3-F2129-00-00 Защита | Защита | |
15 | BD3-F3527-00-00 SEAL, DUST 1 | SEAL, DUST 1 |
