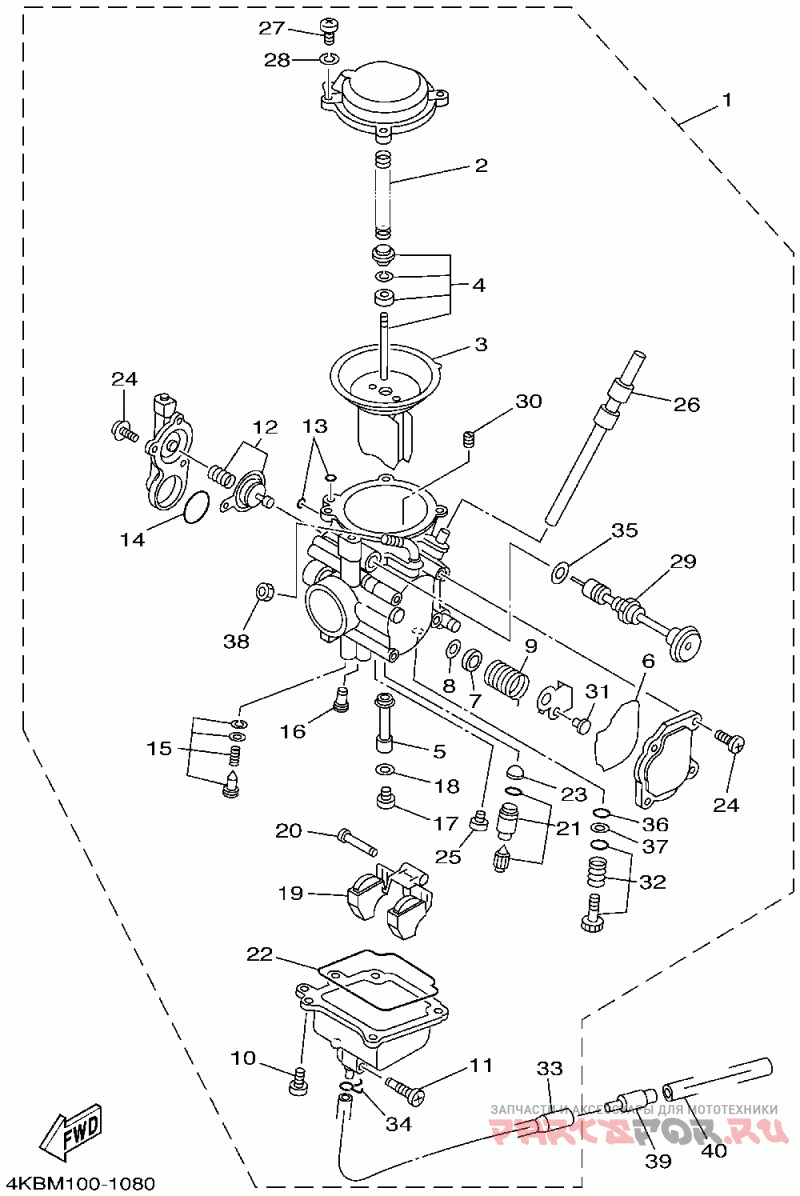

Карбюратор

Yamaha Wolverine

Yamaha
#oem кодцена
1
4KB-14901-22-00
Carburetor Assy 1 (usa)
2
2LN-14933-00-00
Spring, Diaphragm (usa)
3
4KB-14940-00-00
Diaphragm Assy (usa)
4
4KB-1490J-40-00
Needle Set (usa)
5
4WU-14141-40-00
Nozzle, Main (usa)
6
4KB-14147-00-00
O-ring (usa)
7
4KB-14264-00-00
Collar (usa)
8
2A2-14997-00-00
Seal (usa)
9
4KB-14275-00-00
Spring (usa)
10
98517-04012-00
Screw, Panhead (usa)
11
12R-14191-00-00
Plug, Drain (usa)
12
26H-1490H-00-00
Diaphragm Set 5 (usa)
13
93210-04230-00
O-ring (usa)
14
558-14147-00-00
O-ring (usa)
15
12R-14105-00-00
Pilot Screw Set (usa)
16
4G0-14142-42-A0
Jet, Pilot #42.5 (usa)
17
620-1423E-56-00
Jet, Main (#141.3) (usa)
18
137-14153-00-00
Washer, Main Jet (usa)
19
2VA-14185-00-00
Float (usa)
20
537-14186-00-00
Pin, Float (usa)
21
1UY-14107-20-00
Needle Valve Set (usa)
22
2LN-14147-00-00
O-ring (usa)
23
1J7-14994-00-00
Net, Filter (usa)
25
2LN-14565-00-00
Screw Stop (usa)
26
4KB-14197-00-00
Pipe (usa)
27
98507-04018-00
Screw, Panhead (usa)
29
4KB-14993-00-00
Plunger, Starter (usa)
30
2A2-14172-16-00
Jet, Pilot Air 1.6 (usa)
31
1UY-14155-00-00
Guide, Cable End (usa)
32
2VA-14103-00-00
Throttle Screw Set (usa)
33
4KB-14193-20-00
Pipe (usa)
34
14X-14937-00-00
Clip (usa)
35
4KB-14285-00-00
Washer (usa)
36
2H0-14147-00-00
O-ring (usa)
37
22U-14952-00-00
Washer (usa)
38
522-14161-00-00
Nut, Cable Adjusting (usa)
39
24W-14193-00-00
Pipe (usa)
40
91A21-07020-00
Tube, Flexible (3nv) (usa)
24
98517-04012-00
Screw, Panhead (usa)
