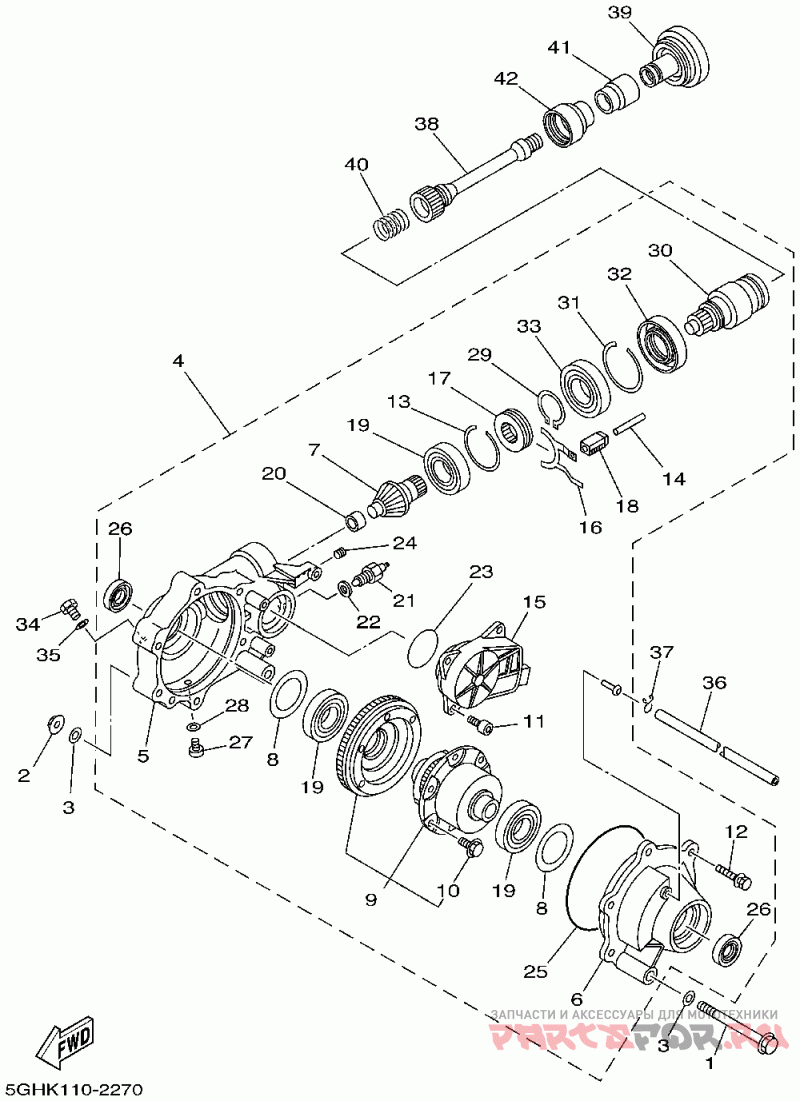

Передний дифференциал

Yamaha Kodiak Automatic 4x4

Yamaha
#oem кодцена
1
90105-10051-00
Bolt, Washer Based (usa)
2
95607-10200-00
Nut, Self-locking (usa)
3
90201-101J1-00
Washer, Plate (usa)
4
5GH-46160-03-00
Front Axle Gear Case (usa)
5
5GH-46161-01-00
Housing, Shaft Drive (usa)
6
5GH-46162-01-00
Housing, Bearing 2 (usa)
7
5GH-46141-00-00
Pinion, Drive 2 (usa)
8
4WV-46119-00-00
Shim, Thrust (0.1t) Ur(usa)
8
4WV-46119-11-00
Shim, Thrust Ur(usa)
8
4WV-46119-21-00
Shim, Thrust Ur(usa)
8
4WV-46119-31-00
Shim, Thrust Ur(usa)
8
4WV-46119-41-00
Shim, Thrust Ur(usa)
8
4WV-46119-51-00
Shim, Thrust Ur(usa)
8
4WV-46119-60-00
Shim, Thrust (1.5t) Ur(usa)
8
4WV-46119-70-00
Shim, Thrust (2.0t) Ur(usa)
8
4WV-46119-80-00
Shim, Thrust (2.5t) Ur(usa)
9
99999-03389-00
Limited Slip Diff. A (usa)
10
4WV-46155-00-00
Bolt 1 (usa)
11
91317-08020-00
Bolt, Socket (usa)
12
4WV-46159-00-00
Bolt 3 (usa)
13
4WV-46143-00-00
Ring, Hole Snap 2 (usa)
14
5GH-18318-00-00
Shaft, Shifter (usa)
15
5GH-4616A-02-00
Servo Motor Comp (usa)
16
5GH-18514-01-00
Fork, Shift 4 (usa)
17
4WV-46441-00-00
Clutch, Driven (usa)
18
5GH-18319-00-00
Shaft 2 (usa)
19
4WV-46165-00-00
Bearing 2 (usa)
20
4WV-46167-00-00
Bearing 4 (usa)
21
3GD-82540-11-00
Neutral Switch Assy (usa)
22
4WV-46132-00-00
Gasket 1 (usa)
23
93210-50768-00
O-ring (usa)
24
90113-08004-00
Bolt Set (usa)
25
93211-40040-00
O-ring (usa)
26
3B4-46163-00-00
Seal, Oil 1 (usa)
27
90340-10001-00
Plug, Straight Screw (usa)
28
90430-10003-00
Gasket (usa)
29
93450-44141-00
Circlip (usa)
30
5GH-46126-01-00
Coupling (usa)
31
93450-71142-00
Circlip (usa)
32
5TE-46163-00-00
Seal, Oil 1 (usa)
33
93316-00801-00
Bearing (usa)
34
90340-14029-00
Plug, Straight Scrw (usa)
35
214-11198-01-00
Gasket (usa)
37
90467-07029-00
Clip, Scissor (usa)
38
5GH-46173-00-00
Shaft, Drive 2 (usa)
39
5GH-46123-00-00
Coupling, Gear (usa)
40
90501-296L7-00
Spring, Compression (usa)
41
5GH-46136-00-00
Seal 1 (usa)
42
5KM-46137-00-00
Seal 2 (usa)
36
90445-07246-00
Hose (usa)
4
5GH-46160-04-00
Front Axle Gear Case (usa)
8
4WV-46119-01-00
Shim, Thrust Ur(usa)
