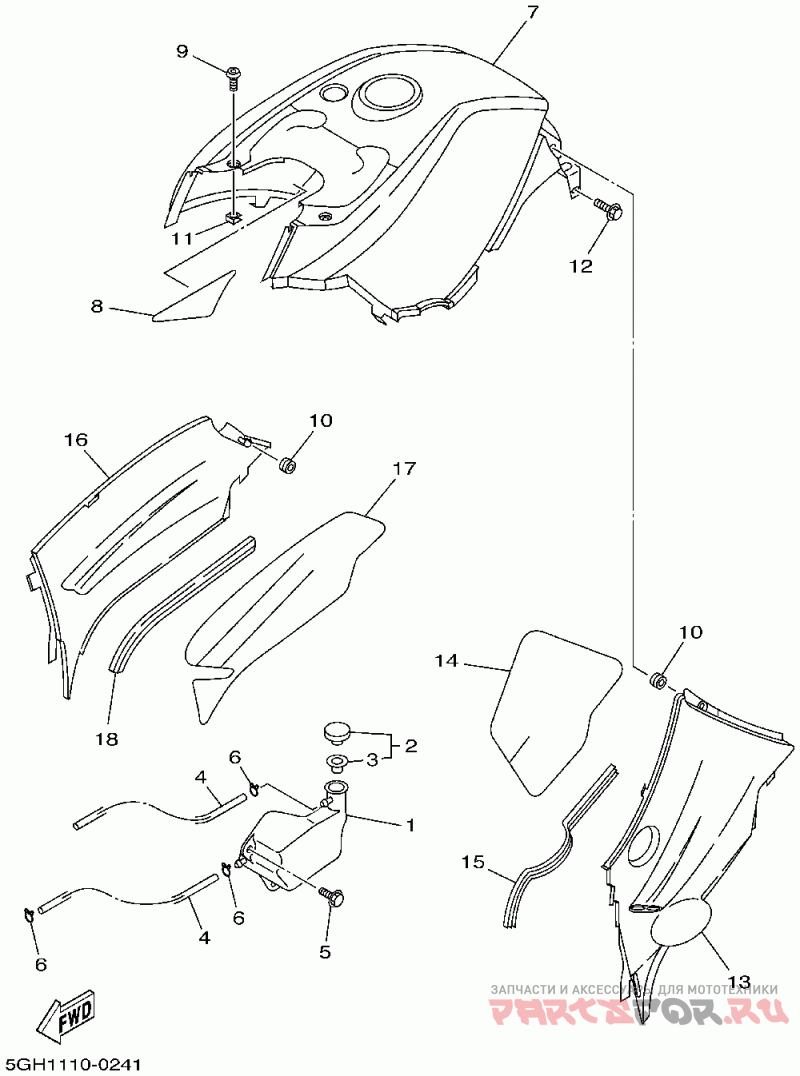

Yamaha Kodiak Automatic 4x4

Yamaha
#oem кодцена
1
5GH-21871-00-00
Tank, Recovery (usa)
2
1AA-21815-00-00
Cap (usa)
3
1AA-21874-00-00
Gasket (usa)
4
90445-090F6-00
Hose (usa)
5
90119-06152-00
Bolt, With Washer (usa)
6
90467-08003-00
Clip, Scissor (usa)
7
5GH-2171A-00-00
Cover, Top (pdg) Ur For Pdg(usa)
7
5GH-2171A-10-00
Cover, Top (rtr) Ur For Rtr(usa)
7
5GH-2171A-20-00
Cover, Top (dnys1) Ur For Dnys1(usa)
8
5GH-2174M-00-00
Cloth, Protector (usa)
9
90110-05201-00
Bolt, Hex. Socket Hea (usa)
10
90480-13567-00
Grommet (usa)
11
90183-051A0-00
Nut, Spring (usa)
13
5GH-21711-00-00
Cover, Side 1 (usa)
14
5GH-2174A-00-00
Insulator, Side Cove (usa)
15
5GH-2171L-00-00
Mole, Side Cover 1 (usa)
16
5GH-21721-00-00
Cover, Side 2 (usa)
17
5GH-2174T-00-00
Insulator, Side Cove (usa)
18
5KM-2171L-00-00
Mole, Side Cover 1 (usa)
12
90119-06152-00
Bolt, With Washer (usa)
