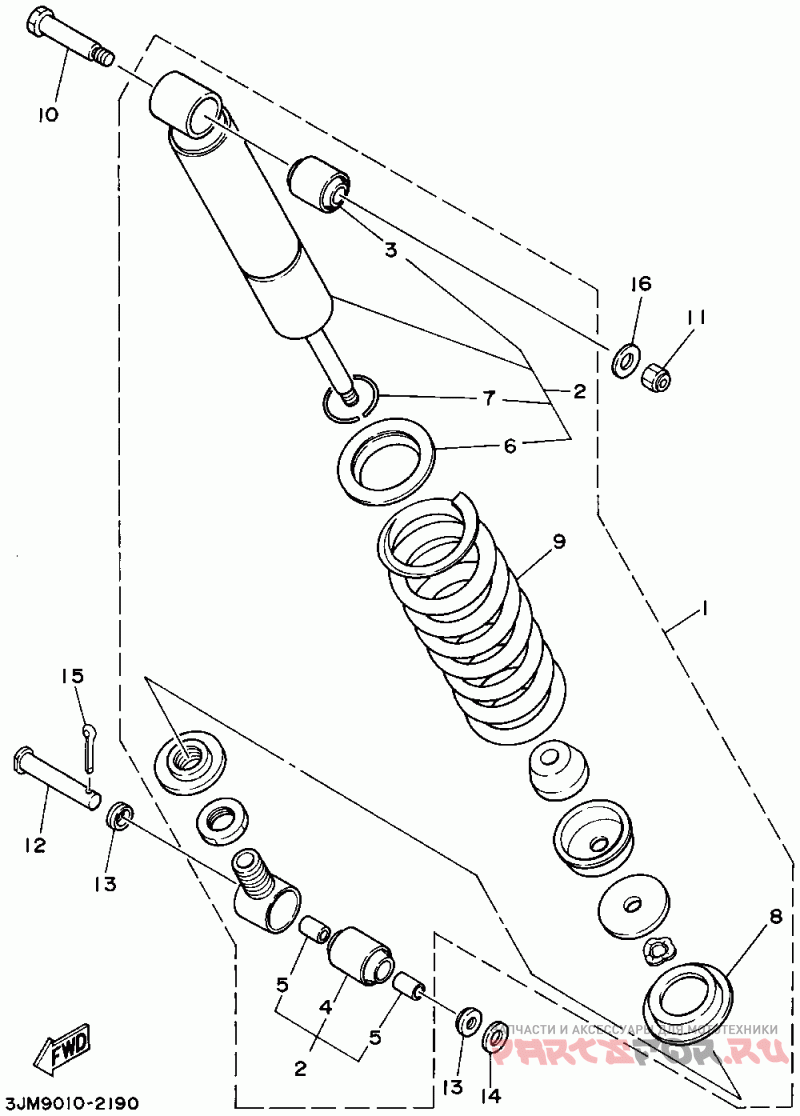

Задняя подвеска

Yamaha Blaster

Yamaha
#oem кодцена
1
2XJ-22210-20-36
Shock Absorber Assy Ur For Dpbse(u49)
1
2XJ-22210-20-P2
Shock Absorber Assy Ur For Yb(u49)
2
2XJ-22201-20-00
Damper Sub-assy (u49)
3
1NU-22216-00-00
Bush, Rr Shock Absorb (u49)
4
1NU-22226-00-00
Bush, Shock Abs Lwr (u49)
5
90380-12051-00
Bush, Solid (u49)
6
22W-22223-00-00
Seat, Spring Lower (u49)
7
93440-42101-00
Circlip, Outer (u49)
8
22W-22214-01-00
Guide, Spring 1 (u49)
9
2XJ-22212-00-36
Spring (ww) Ur For Dpbse(u49)
9
2XJ-22212-00-P2
Spring Ur For Yb(u49)
10
90109-10736-00
Bolt (u49)
11
95617-10100-00
Nut, U (u49)
12
90240-12092-00
Pin, Clevis (u49)
13
1W1-22128-00-00
Cover, Thrust 1 (u49)
14
92907-12600-00
Washer (u49)
15
91490-30030-00
Pin, Cotter (u49)
16
90201-102G9-00
Washer, Plate (u49)
8
3P6-22214-00-00
Guide, Spring 1 (u49)
15
91401-30025-00
Pin, Cotter (u49)
